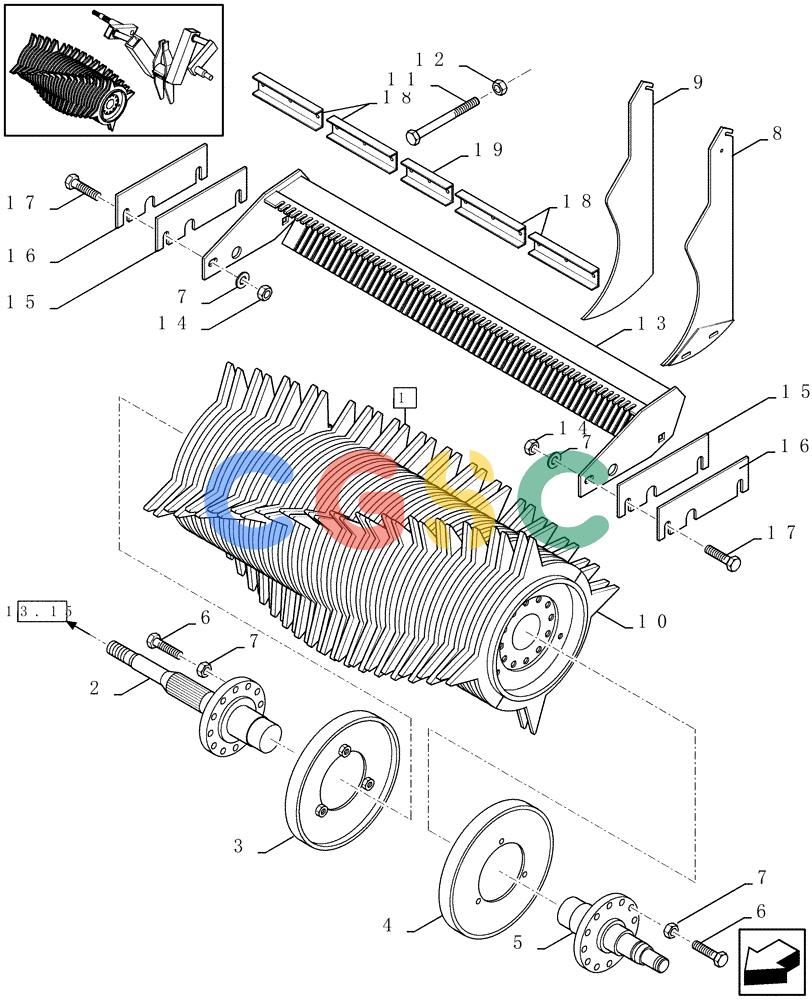

凯斯零件查询(LBX331R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (8/01-12/03) (13.16[01]) - ROTOR Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
892 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84068697
|
[1] |
ROTOR
|
ZED
(10) Superseded by part number: 84447556
|
| 1. |
84068992
|
[1] |
ROTOR
|
ZED
(10) Superseded by part number: 84819440
|
| 2. |
84074542
|
[1] |
SHAFT
|
ZED
RH
|
| 3. |
84039525
|
[1] |
FLANGE
|
ZED
RH Superseded by part number: 87388926
|
| 4. |
84039526
|
[1] |
FLANGE
|
ZED
LH Superseded by part number: 87388925
|
| 5. |
84039522
|
[1] |
SHAFT
|
ZED
LH
|
| 6. |
80385922
|
[24] |
SCREW,M16 x 45mm
|
ZED
M16x45 Superseded by part number: 385922
|
| 7. |
80140048
|
[28] |
WASHER
|
ZED
16MM Superseded by part number: 140048
|
| 8. |
84056939
|
[1] |
SCRAPER BLADE
|
ZED
|
| 9. |
84041367
|
[1] |
SCRAPER BLADE
|
ZED
|
| 10. |
84068695
|
[1] |
KNIFE BLADE
|
ZED
Side
|
| 10. |
84068696
|
[1] |
KNIFE BLADE
|
ZED
Short
|
| 10. |
84037761
|
[1] |
KNIFE BLADE
|
ZED
Long
|
| 11. |
80337474
|
[1] |
SCREW
|
ZED
M10x200 Superseded by part number: 337474
|
| 12. |
80100037
|
[1] |
NUT,M10 x 1.5, Class 8
|
ZED
M10 Superseded by part number: 100037
|
| 13. |
84038656
|
[1] |
FRAME
|
ZED
Superseded by part number: 87598460
|
| 13. |
84068993
|
[1] |
FRAME
|
ZED
Superseded by part number: 87598455
|
| 14. |
100020
|
[1] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 15. |
84041629
|
[1] |
ADJUSTING PLATE
|
ZED
THK.: 3MM
|
| 16. |
84038646
|
[1] |
ADJUSTING PLATE
|
ZED
THK.: 1MM
|
| 17. |
89838060
|
[4] |
SCREW
|
ZED
M16x40 Superseded by part number: 86595832
|
| 18. |
84053626
|
[1] |
PROFILE
|
ZED
|
| 19. |
84053625
|
[1] |
PROFILE
|
ZED
|
| 19. |
84068994
|
[1] |
PROFILE
|
ZED
|
