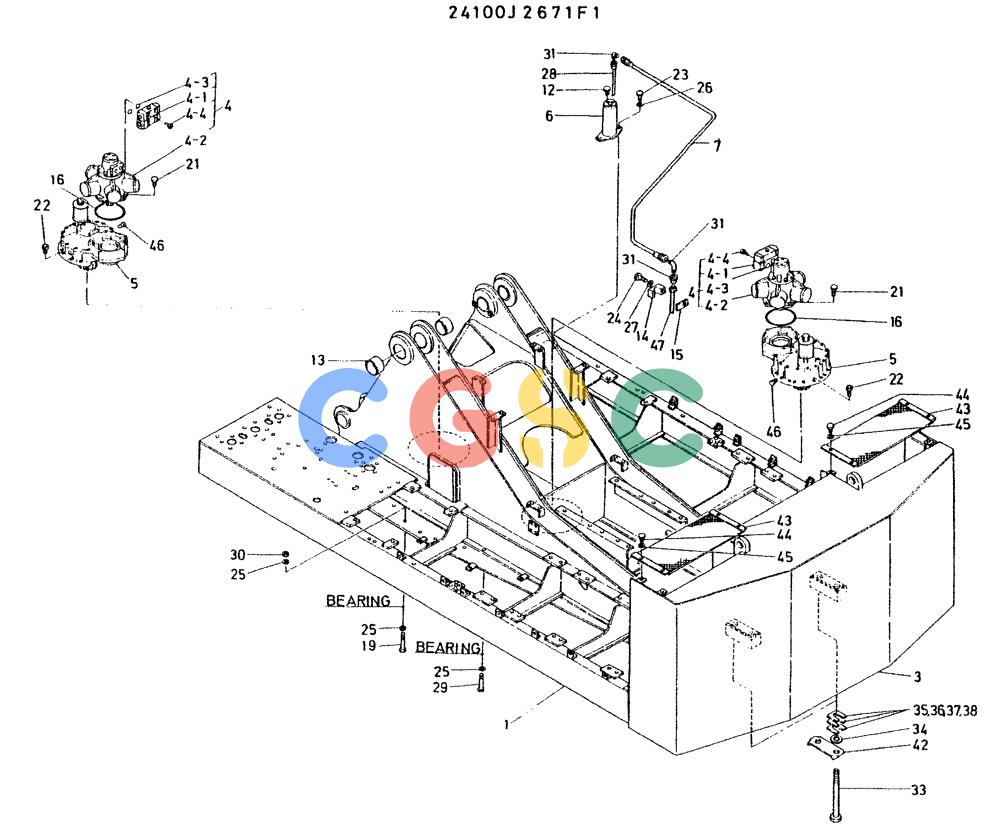

神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (11-001) - FRAME ASSY, UPP, G.M. ENG. MOUNT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
253 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J2671F1 | [1] | FRAME ASSY, UPP INC. REF. 1 TO 47 | |
| 1. | 2422X397 | [1] | FRAME. UPP | |
| 3. | 2422X392D1 | [1] | COUNTER -WEIGHT | |
| 4. | B41N0002F3 | [2] | MOTOR | KOBCONSISTS OF REF. 4-1 TO 4-4 |
| 4-1. | B36N0013F2 | [1] | VALVE | KOB |
| 4-2. | B41N0022F2 | [1] | MOTOR | MOTOR |
| 4-3. | ZD12G03500 | [2] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 4-4. | B41N0002E39 | [8] | SCREW | KOB |
| 5. | 24100X397F2 | [2] | REDUCTION UNIT | REDUCTION UNIT |
| 6. | B14P0054 | [1] | TANK | |
| 7. | 2420R350D2 | [1] | HOSE | HOSE |
| 12. | ZE72T24000 | [1] | PLUG | |
| 13. | 2405T606 | [4] | BUSHING | KOB |
| 14. | R16T0145 | [1] | CLAMP | |
| 16. | ZD11G26000 | [2] | O-RING,259.30mm ID x 270.70mm OD x 5.70mm | KOBID 259.30 ± 1.94 x OD 270mm |
| 19. | ZS13C24160 | [16] | SCREW | KOBM24x3.0x160mm |
| 21. | ZS13C16030 | [10] | SCREW | KOBM16x2.0x30mm |
| 22. | ZS23C20050 | [28] | SCREW,Hex Socket Head, M20 x 50mm | KOBM20x2.5x50mm |
| 23. | ZS12C12025 | [2] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 24. | ZS12C08040 | [1] | CAPSCREW -- M08x1.25x40mm | |
| 25. | R16T0152D4 | [52] | WASHER | KOBFlat -- ID 24 x OD 44 x Th 4.5mm |
| 26. | ZW22X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 27. | ZW22X08000 | [2] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 28. | B18T0142 | [1] | TUBE | TUBE |
| 29. | ZS13C24140 | [20] | SCREW | HITM24x3.0x140mm |
| 30. | ZN12C24019 | [16] | NUT M24x3.0mm | NUT M24x3.0mm |
| 31. | ZH32Z06000 | [2] | ELBOW | KOB |
| 32. | ZF23U15006 | [1] | CONNECTOR | |
| 33. | 2420T3031D2 | [4] | CAPSCREW | CAPSCREW |
| 34. | R16T0152D7 | [4] | WASHER | KOB |
| 35. | 2418T4296D1 | [2] | SPACER | SPACER |
| 36. | 2418T4296D2 | [2] | SPACER | SPACER |
| 37. | 2418T4296D3 | [2] | SPACER | SPACER |
| 38. | 2418T4296D4 | [2] | SPACER | SPACER |
| 42. | 2418T5336 | [2] | LOCKWASHER | LOCKWASHER |
| 43. | 2414P1472 | [2] | COVER | |
| 44. | ZS11C10016 | [8] | CAPSCREW M10x1.50x16mm | CAPSCREW M10x1.50x16mm |
| 43. | ZW22X10000 | [1] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 46. | ZE82T08000 | [2] | PLUG | KOB1/2" PT |
| 47. | 2418T6472 | [1] | TUBE | TUBE |
