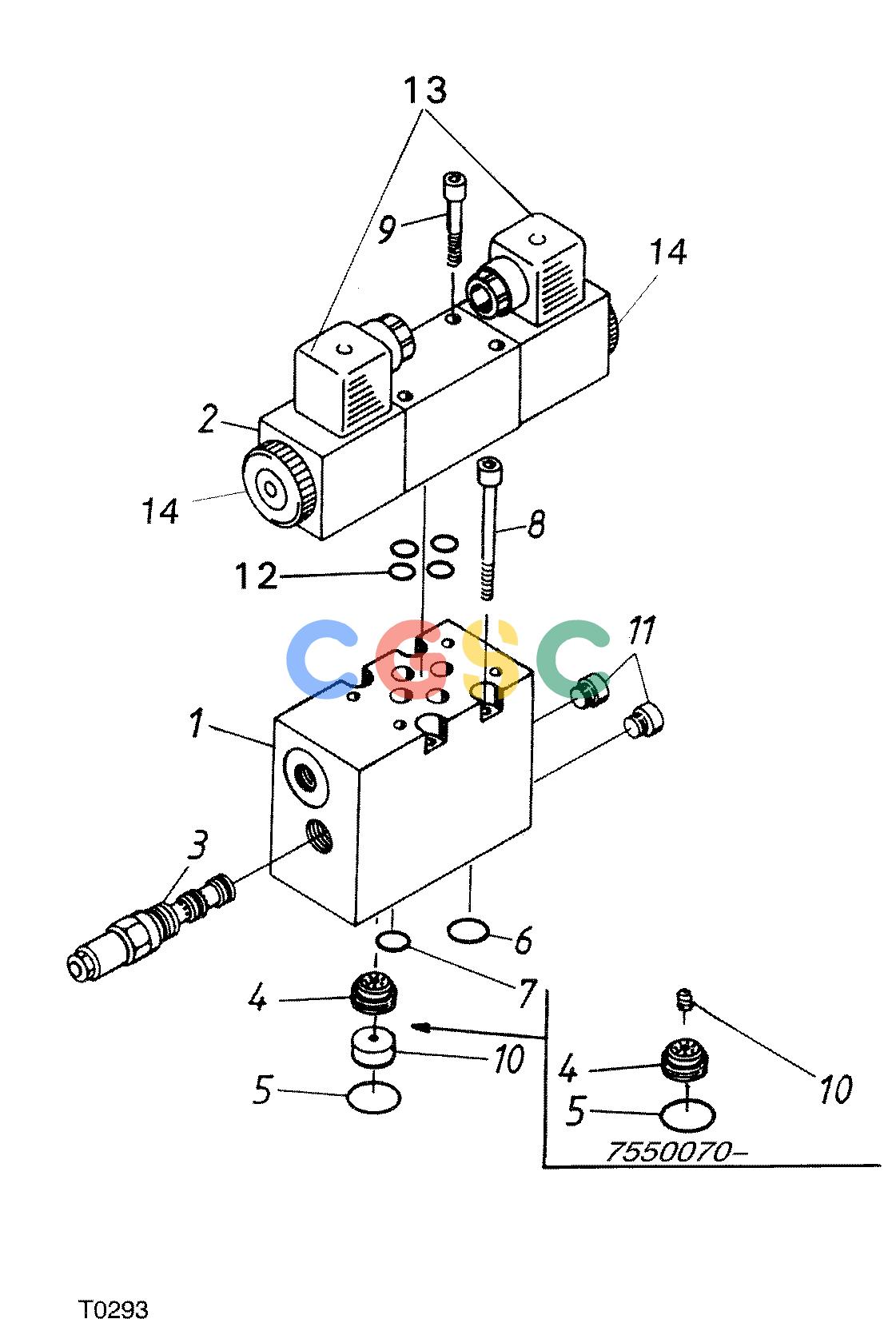

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE VALVE BLOCK F042138 11 36 T0293 [T0293]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
631 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F034543
|
[1] |
BLOCK SECTION ASSY
|
|
| 1. |
F022090
|
[1] |
VALVE BLOCK
|
|
| 2. |
F005212
|
[1] |
DIRECTIONAL VALVE
|
|
| |
F008633
|
[1] |
Seal Kit
|
|
| |
F008453
|
[2] |
Solenoid
|
|
| 3. |
F018775
|
[1] |
Pressure Relief Valve
|
|
| |
F017725
|
[1] |
Seal Kit
|
|
| |
F047856
|
[1] |
Pressure Relief Valve
|
|
| |
F048971
|
[1] |
Seal Kit
|
|
| 4. |
F018776
|
[1] |
Check Valve
|
|
| |
F021607
|
[1] |
O-Ring
|
|
| |
F023442
|
[1] |
Check Valve
|
|
| 5. |
F018768
|
[1] |
O-Ring
|
|
| 6. |
F018771
|
[1] |
O-Ring
|
|
| 7. |
F003285
|
[1] |
O-Ring
|
|
| 8. |
F018777
|
[4] |
Screw
|
|
| 9. |
F008644
|
[4] |
Screw
|
|
| 10. |
F021621
|
[1] |
THROTTLE
|
|
| |
F028825
|
[1] |
THROTTLE SCREW
|
|
| 11. |
F003382
|
[2] |
Plug
|
|
| 12. |
F003286
|
[4] |
O-Ring
|
|
| 13. |
F004578
|
[2] |
Connector
|
|
| 14. |
F055043
|
[2] |
Nut
|
|
