神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (11-003) - MOUNT ASSY, BATTERY, G.M. ENG. MOUNT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
495 次

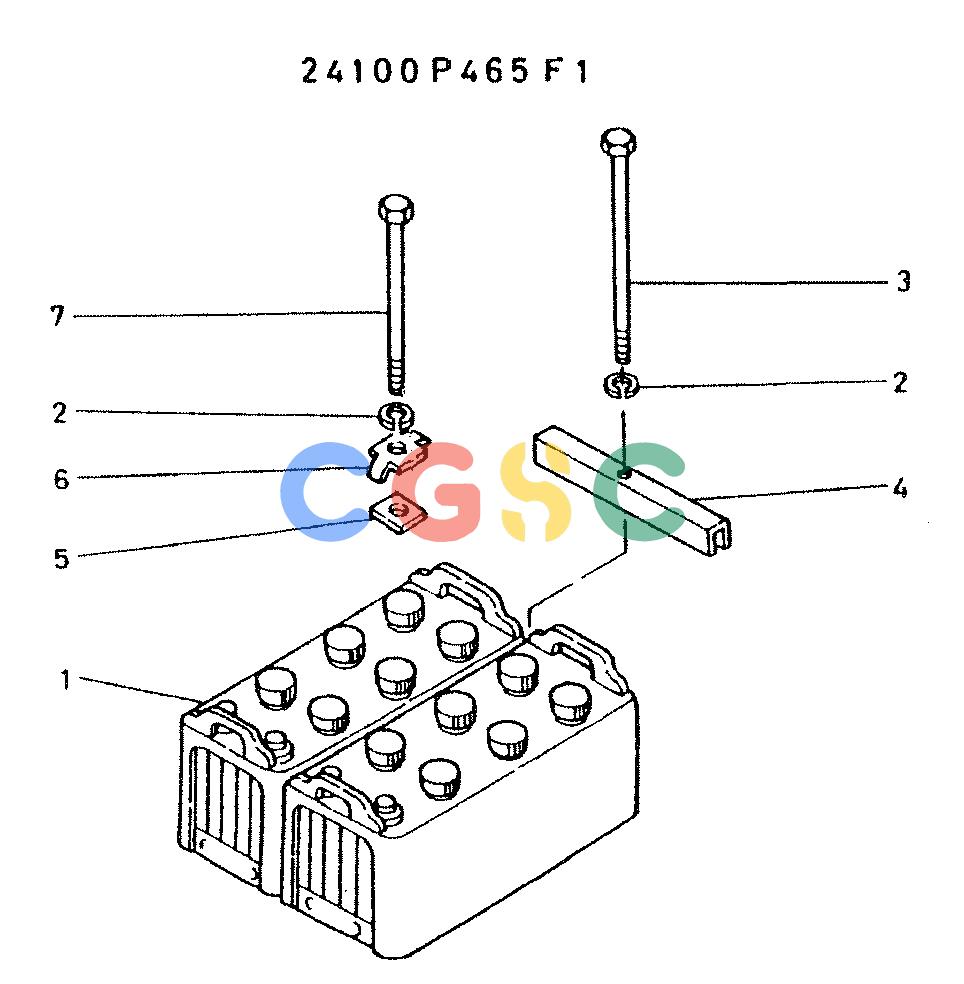

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P465F1 | [1] | MOUNT ASSY, BATTERY CONSISTS OF REF. 1 TO 7 | |
| 1. | 84Z52 | [2] | BATTERY | |
| 2. | ZW22X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 3. | R20T0084D11 | [1] | CAPSCREW | |
| 4. | B16T0039 | [1] | SUPPORT | |
| 5. | B16T0040 | [1] | PLATE | |
| 6. | B16T0041 | [1] | PLATE | |
| 7. | R20T0084D10 | [1] | CAPSCREW | KOBSCREW M10x1.50x250mm |
