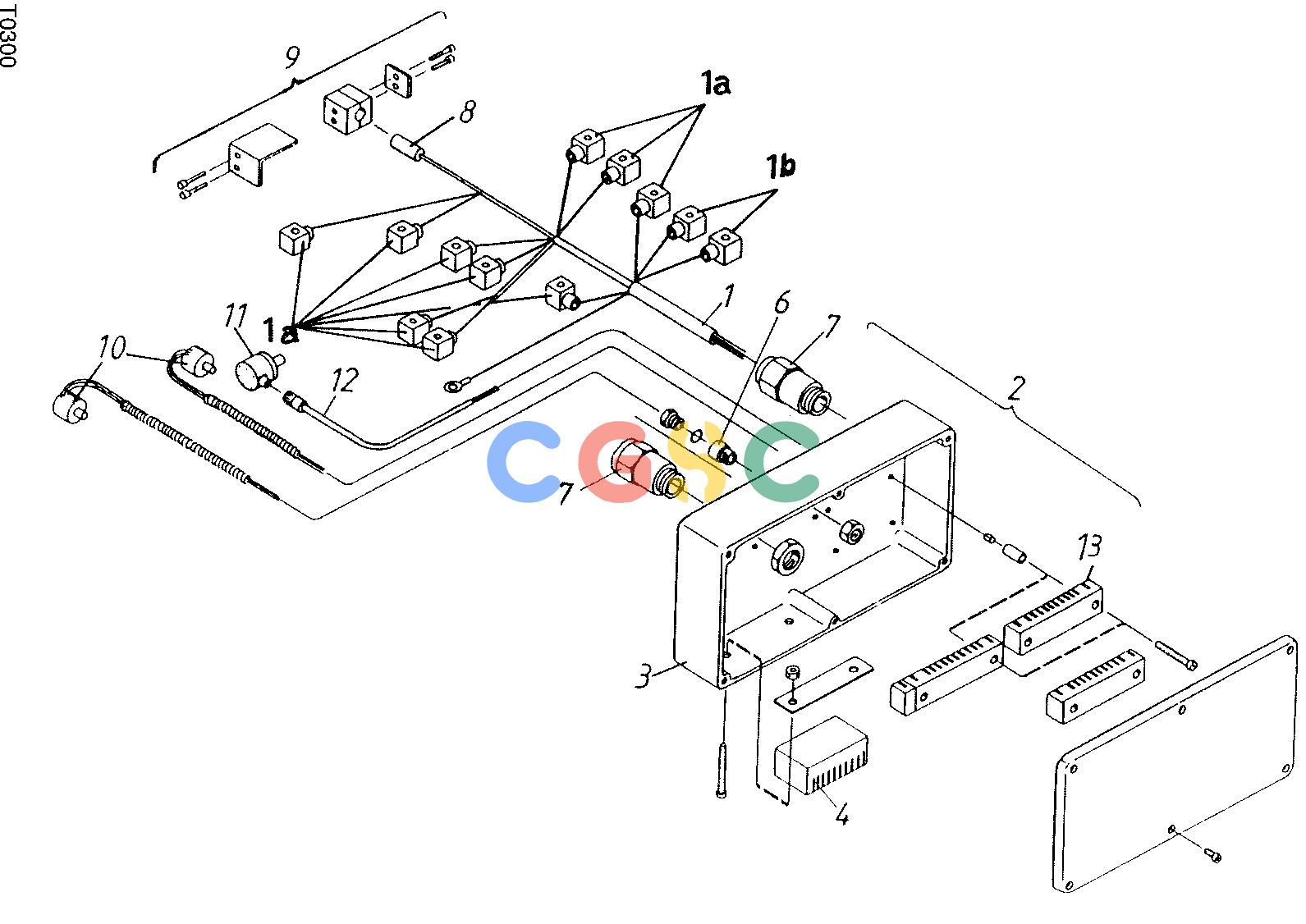

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE ELECTRICAL MOUNTING F042138 11 42 T0300 [T0300]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
881 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F024841
|
[1] |
CABLE HARNESS
|
|
| 1A. |
F025731
|
[10] |
Connector
|
|
| 1B. |
F025732
|
[2] |
Connector
|
|
| 2. |
F021643
|
[1] |
Box
|
|
| 3. |
F021644
|
[1] |
Box
|
|
| 4. |
F008194
|
[1] |
Amplifier
|
|
| 6. |
F008708
|
[5] |
Seal
|
|
| 7. |
F008707
|
[1] |
Seal
|
|
| 8. |
F024842
|
[1] |
Sensor
|
|
| 9. |
F008711
|
[1] |
Holder
|
|
| 10. |
F005352
|
[2] |
Potentiometer
|
|
| 11. |
F005559
|
[1] |
Sensor
|
|
| 12. |
F005813
|
[1] |
CABLE HARNESS
|
|
| 13. |
F005308
|
[3] |
TERMINAL BLOCK
|
|
