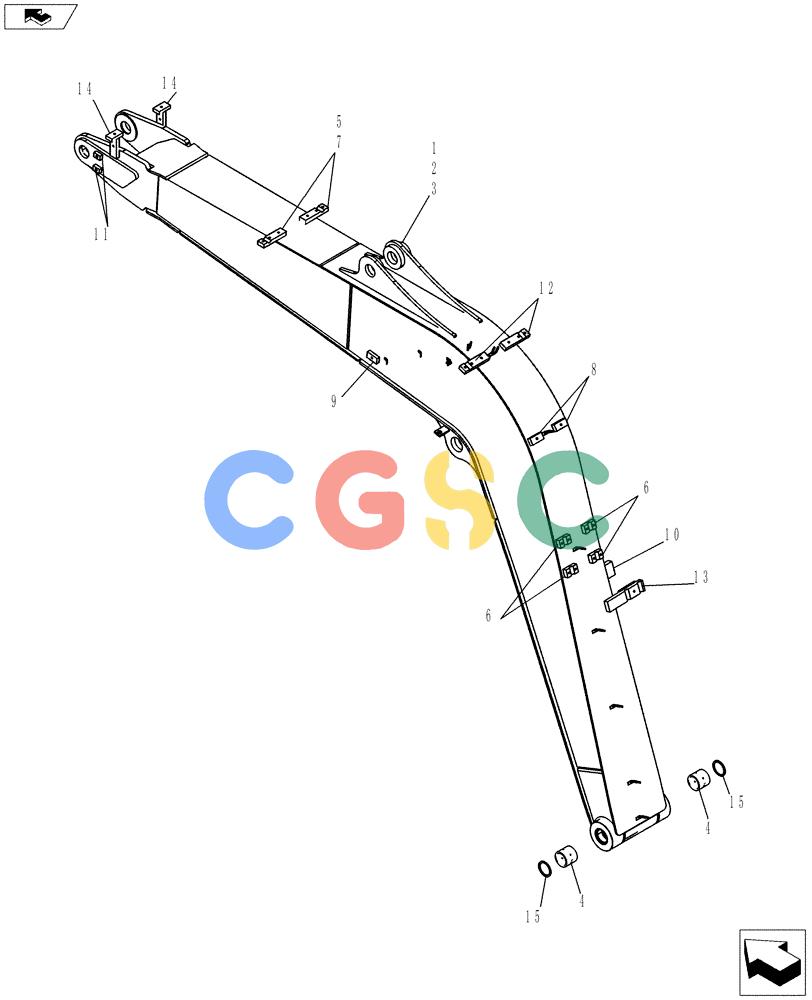

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR ASN YT06-18001 (03-002[00]) - BOOM, HOE 3.84M New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
240 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT02B00139F1 | [1] | Hoe 3.84M | |
| 1. | YT02B00140F1 | [1] | BOOM | KOBHoe |
| 2. | YT02B00093F1 | [1] | Hoe | |
| 3. | YT02B00083P1 | [1] | Hoe | |
| 4. | YT02B01212P1 | [2] | BUSHING | KOB |
| 5. | YT02B00141P1 | [1] | Hoe | |
| 6. | YT02B01198P1 | [4] | BLOCK | KOBTapped |
| 7. | YT02B01149P1 | [2] | BLOCK | KOBTapped |
| 8. | HY35B10032G1 | [2] | BLOCK | KOBTapped |
| 9. | 2416T9878 | [1] | BLOCK,M10 Thd Hole - 16mm Thk x 32mm W x 60mm L | KOBTapped |
| 10. | YT02B01294P1 | [1] | BLOCK | KOBTapped |
| 11. | 2416T12922 | [2] | BLOCK | KOBTapped |
| 12. | YT02B01201P1 | [2] | BLOCK | KOBTapped |
| 13. | YT02B01291P1 | [1] | BRACKET | KOB |
| 14. | YT02B01146P1 | [2] | BRACKET | KOB |
| 15. | 2445R138D3 | [2] | SEAL,60mm ID x 75mm OD x 4mm Thk | KOBDust |
