神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (11-008) - GUARD ASSY, G.M. ENG. MOUNT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
442 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

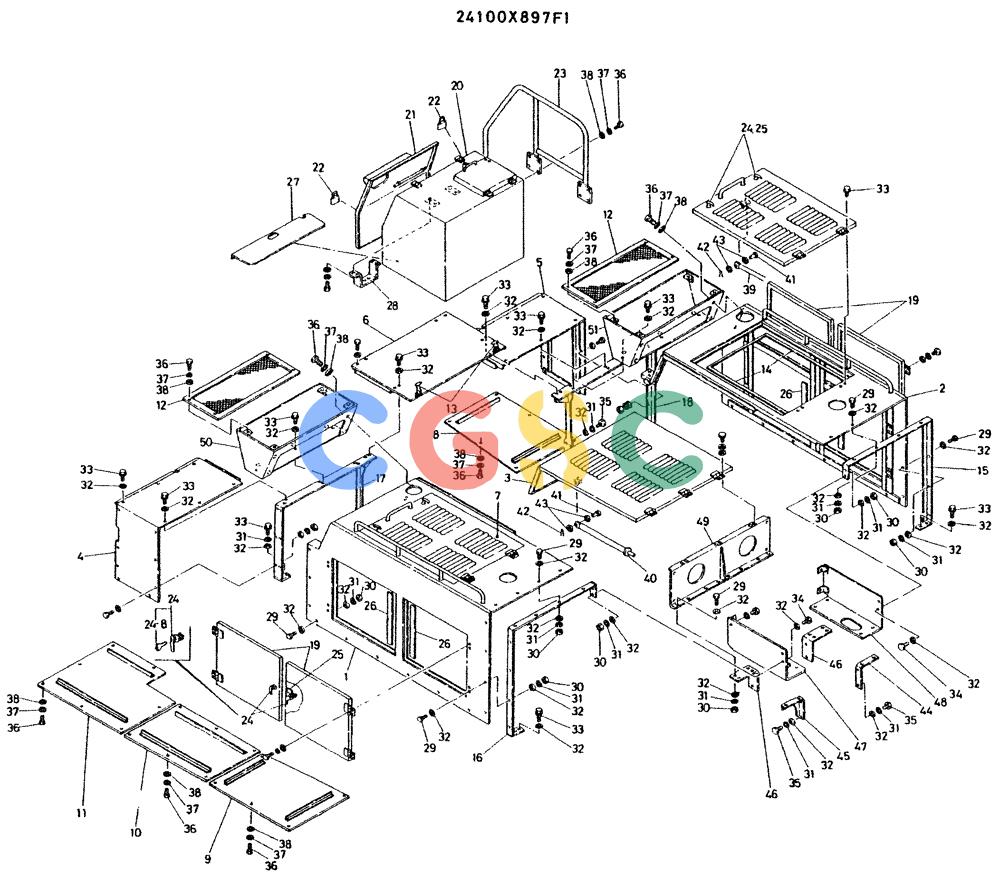

| . . | 24100X897F1 | [1] | GUARD ASSY , CONSISTS OF REF 1 TO 51 | |
| 1. | 2414J656 | [1] | GUARD | |
| 2. | 2414J658 | [1] | GUARD | |
| 3. | 2414J657 | [1] | GUARD | |
| 4. | 2414N1199 | [1] | GUARD | |
| 5. | 2414N1201 | [1] | GUARD | |
| 6. | 2414P1829 | [1] | GUARD | |
| 7. | 2414N885 | [2] | DOOR | |
| 8. | 2414P1366D2 | [1] | COVER | COVER |
| 9. | 2414P1366 | [1] | COVER | COVER |
| 10. | 2414P1370 | [1] | COVER | COVER |
| 11. | 2414P1372 | [1] | COVER | COVER |
| 12. | 2414P1831 | [2] | COVER | |
| 13. | R27T0013D1 | [2] | LATCH | KOB Superseded by part number: R27T0013D2 |
| 14. | 2427Z213D16 | [2] | CHANNEL, RUBBER (PACKING) | CHANNEL, RUBBER (PACKING) |
| 15. | 2416N1774D1 | [1] | BRACKET | |
| 16. | 2416N1774D2 | [1] | BRACKET | |
| 17. | 2416N1775D1 | [1] | BRACKET | |
| 18. | 2416N1775D2 | [1] | BRACKET | |
| 19. | 2414P1830 | [4] | DOOR | |
| 20. | 2427J678 | [1] | BOX, TOOL | |
| 21. | 2414N1200 | [1] | COVER | |
| 22. | 21Z1 | [2] | WRENCH | KOBKEY, LOCK |
| 23. | 2406N455 | [1] | HANDRAIL | |
| 24. | 2427R171 | [8] | HANDLE | KOBINCLUDE REF 24-8 |
| 24-8. | 2427R171S8 | [2] | KEY | KOB |
| 25. | 2418T5028 | [8] | PLATE | PLATE |
| 26. | 2427Z213D3 | [4] | CHANNEL, RUBBER | CHANNEL, RUBBER |
| 27. | 2414P1368 | [2] | COVER | |
| 28. | 2416T4808 | [1] | BRACKET | |
| 29. | ZS16C12030 | [50] | CAPSCREW M12x1.75x30mm | CAPSCREW M12x1.75x30mm |
| 30. | ZN16C12010 | [68] | NUT | KOB Superseded by part number: ZN18C12010 |
| 31. | ZW26X12000 | [54] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 32. | ZW16X12000 | [175] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 33. | ZM11C12025 | [48] | SCREW | KOBM12x1.75x25mm (Incls. Lockwasher) Superseded by part number: ZM12C12025 |
| 34. | ZS16C12040 | [4] | SCREW | KOBM12x1.75x40mm Superseded by part number: ZS18C12040, 77276427 |
| 35. | ZS16C12020 | [4] | KEY | KOBM12x1.75x20mm Superseded by part number: ZS18C12020 |
| 36. | ZS16C10015 | [63] | CAPSCREW M10x1.50x15mm | CAPSCREW M10x1.50x15mm |
| 37. | ZW26X10000 | [63] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 38. | ZW16X10000 | [63] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 39. | 2406P1355D1 | [2] | STAY | |
| 40. | 2406P1355D2 | [2] | STAY | |
| 41. | ZP45X16050 | [4] | PIN | |
| 42. | ZP15D04040 | [4] | COTTER PIN | KOBOD 04 x 40mm Long Superseded by part number: ZP15D04050 |
| 43. | ZW16X16000 | [8] | WASHER | KOBID 16 x OD 30 x Th 3.2mm |
| 44. | 2416T5329D1 | [1] | BRACKET | |
| 45. | 2416T5329D2 | [1] | BRACKET | |
| 46. | 2416T5330 | [2] | BRACKET | |
| 47. | 2416P4788D2 | [1] | BRACKET | |
| 48. | 2416P4788D1 | [1] | BRACKET | |
| 49. | 2416P4789 | [1] | BRACKET | |
| 50. | 2427N1174D1 | [1] | DUCT | |
| 51. | 2427N1174D2 | [1] | DUCT | |
