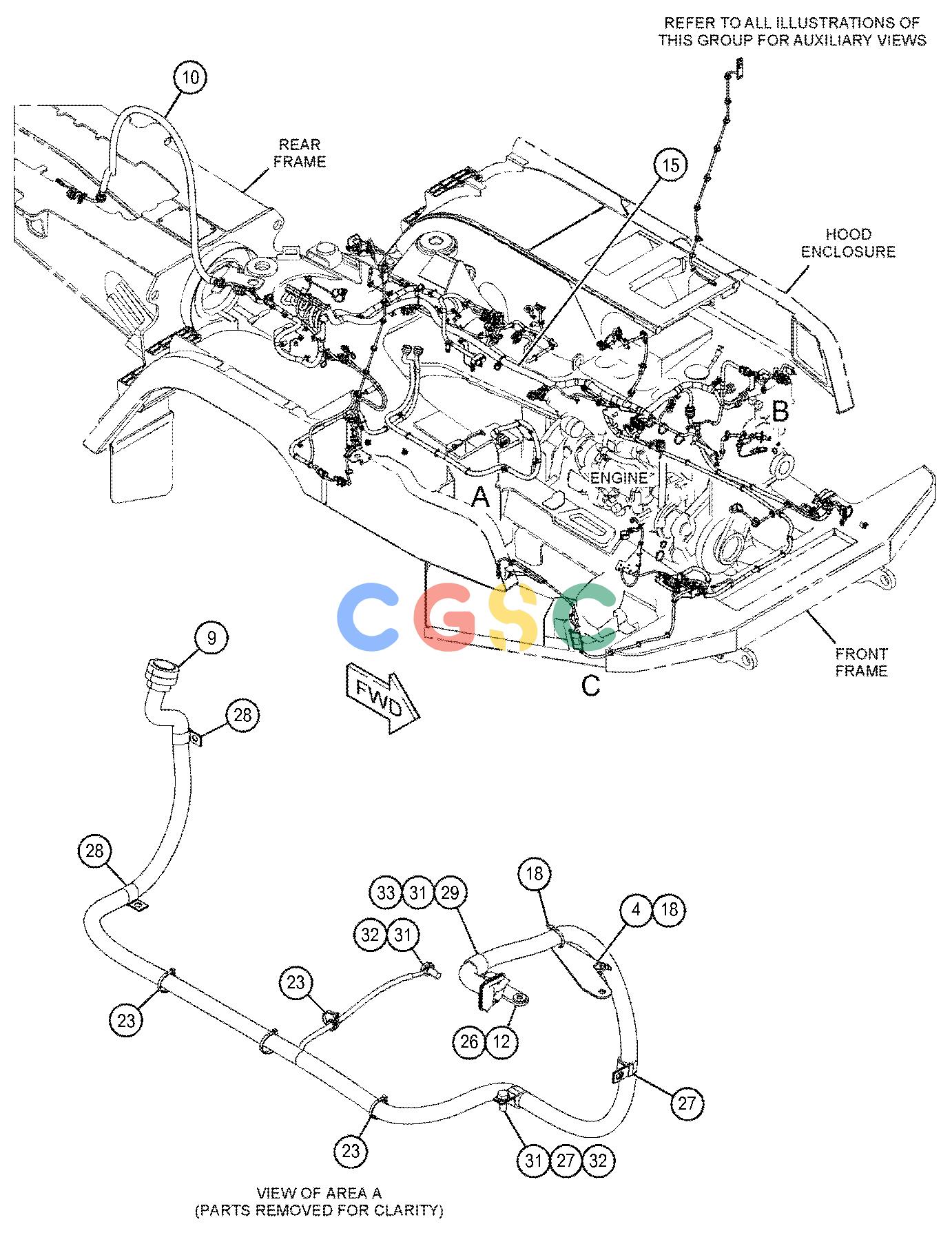

卡特零件查询（730C） 425-6240: WIRING GP-FRONT
广数供应链运营团队, 15 02月, 2025，浏览：
382 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 189-3158 | [1] | SUPPRESSOR-ARC | |
| 2. | 441-5127 | [1] | SENSOR AS-NITROGEN OXIDE(ENGINE OUTPUT) | |
| 3. | 441-5128 | [1] | SENSOR AS-NITROGEN OXIDE(EXHAUST PIPE OUT) | |
| 4. | 384-9767 | [1] | PLATE | |
| 5. | 392-3520 | [1] | BRACKET AS | |
| 6. | 420-3138 | [1] | BRACKET AS | |
| 7. | 487-4218 | [1] | PLATE AS | |
| | 9R-2613M | [1] | BOSS-WELD(M10X1.5X25-MM) | |
| | 7T-1099 | [1] | LINK | |
| | 9R-2672M | [2] | BOSS-THREADED(M10X1.5X120-MM) | |
| 8. | 420-3195Y | [1] | HARNESS AS-FRONT(DEF PUMP) | |
| 9. | 420-5134Y | [1] | HARNESS AS-FRONT CHASSIS(CLEAN EMISSIONS MODULE) | |
| 10. | 420-9656Y | [1] | WIRING GP-FRONT | |
| 11. | 421-2269 | [1] | PLATE | |
| 12. | 424-0039 | [1] | PLATE AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 13. | 437-8510 | [1] | BRACKET AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 14. | 446-9103Y | [1] | HARNESS AS-SENSOR(FUEL FILTER) | |
| 15. | 455-6292Y | [1] | HARNESS AS-FRONT CHASSIS(ARC SUPPRESSOR) | |
| 17. | 450-5418 | [1] | PLATE AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 18. | 326-4516 | [12] | TIE-CABLE | |
| 19. | 342-2135 | [2] | CLIP(LOOP) | |
| 20. | 355-3148 | [1] | SWITCH AS-PRESSURE(HIGH, LOW)(REFRIGERANT COMPRESSOR) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 21. | 3G-6883 | [1] | CLIP(SLOT) | |
| 22. | 3G-6884 | [1] | CLIP(TAB) | |
| 23. | 3S-2093 | [38] | STRAP-CABLE | |
| 24. | 4P-7581 | [2] | CLIP(LADDER) | |
| 25. | 4P-8134 | [2] | CLIP(LADDER) | |
| 26. | 5P-4116 | [1] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 27. | 6D-4244 | [2] | CLIP(LOOP) | |
| 28. | 6D-4246 | [4] | CLIP(LOOP) | |
| 29. | 6D-4636 | [1] | CLIP(LOOP) | |
| 30. | 7K-1181 | [5] | STRAP-CABLE | |
| 31. | 8T-4121 | [15] | WASHER-HARD(11X21X2.5-MM THK) | |
| 32. | 8T-4136M | [5] | BOLT(M10X1.5X25-MM) | |
| 33. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 34. | 8T-4171M | [4] | BOLT(M6X1X12-MM) | |
| 35. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 36. | 8T-4191M | [4] | BOLT(M10X1.5X16-MM) | |
| 37. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| 38. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 39. | 9X-2038 | [4] | WASHER(7X19X2-MM THK) | |
| 40. | 9X-7378 | [1] | SEAL-O-RING | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
