久保田零件查询S10305 LABEL (REAR) [ENGLISH] LABELSEPC Kubota online_久保田Kubota_工程机械

久保田零件查询S10305 LABEL (REAR) [ENGLISH] LABELSEPC Kubota online

广数供应链运营团队, 15 02月, 2025，浏览： 961 次

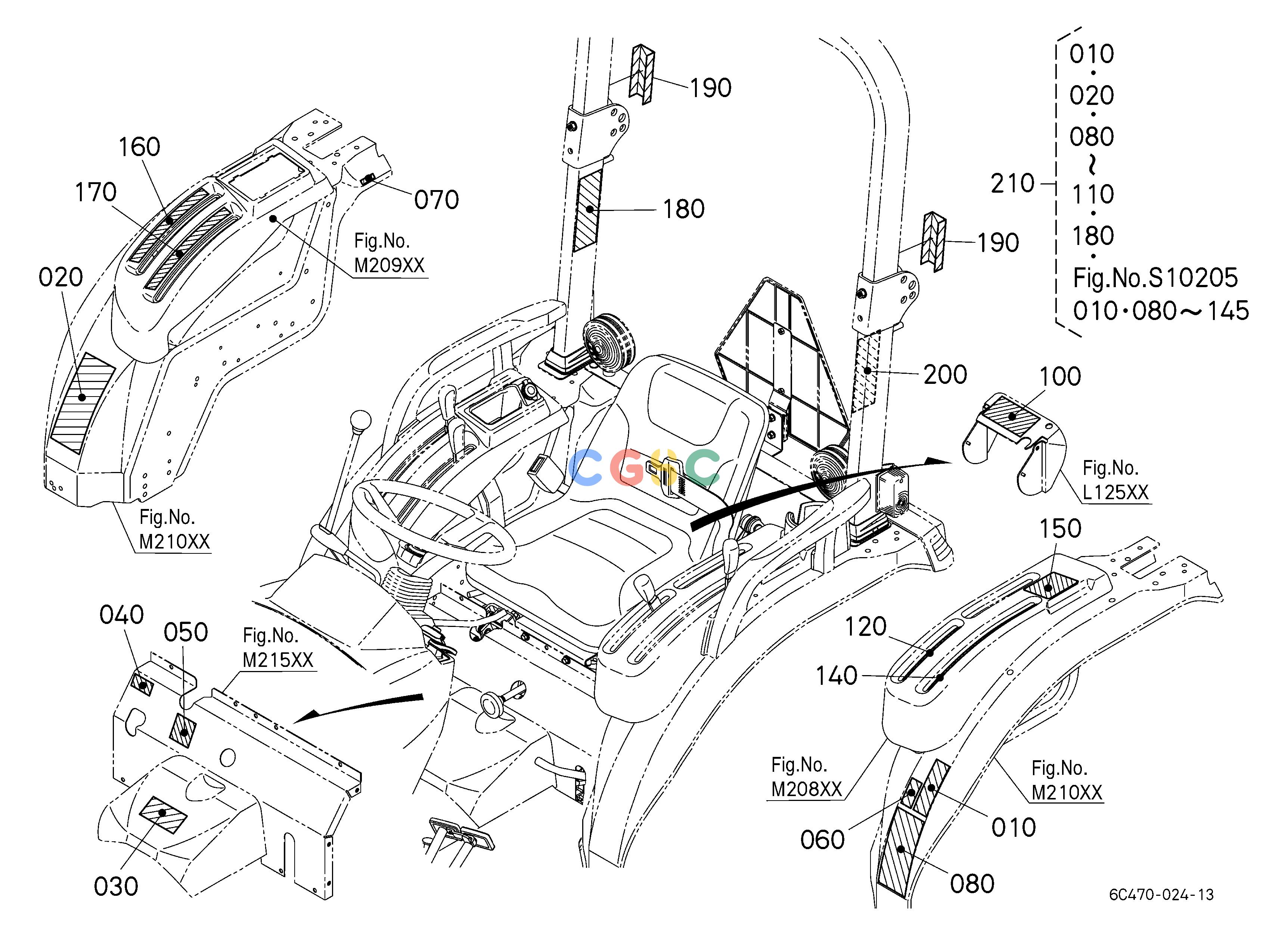

Pos.	Part No	Qty	Parts name	Comments
010.	6C15047430	[1]	LABEL,PARKING	; <=71550 0.0044(lbs); 0.002
010.	6C41047430	[1]	LABEL(PARKING)	; >=71551 0.0044(lbs); 0.002
020.	TA24098482	[1]	LABEL, ROPS WARNING LABEL	0.0110(lbs); 0.005
030.	6C47047480	[1]	LABEL(PEDAL)	; <=71550 0.0044(lbs); 0.002
030.	6C47047482	[1]	LABEL(PEDAL)	; >=71551 0.0044(lbs); 0.002
040.	6C36047512	[1]	LABEL,LEVER LOCK	; <=71550 0.0022(lbs); 0.001
040.	6C36047513	[1]	LABEL,LEVER LOCK	; >=71551 0.0022(lbs); 0.001
050.	TD17037980	[1]	LABEL,HYD.OUTLET	0.0022(lbs); 0.001
060.	6C20047530	[1]	LABEL,S-CHANGE PTO	0.0022(lbs); 0.001
070.	3S20198250	[1]	LABEL(EMC)	; >=70814 0.0022(lbs); 0.001
070.	6C43047550	[1]	LABEL(EMC)	; >=71551 0.0022(lbs); 0.001
080.	6C07047422	[1]	LABEL,SAFETY	; <=71550 0.0110(lbs); 0.005
080.	6C43047420	[1]	LABEL(SAFETY)	; >=71551 0.0110(lbs); 0.005
090.	6C43047520	[1]	LABEL(CRUISE,CAUTION)	OUT OF USE 0.0022(lbs); 0.001
100.	6C20049590	[1]	LABEL,DRAWBARPTO WARNING	0.0066(lbs); 0.003
110.	TA04049020	[1]	LABEL,CAB WARNING	OUT OF USE; <=71550 0.0044(lbs); 0.002
110.	6C43047530	[1]	LABEL(CAB WARNING)	OUT OF USE; >=71551 0.0044(lbs); 0.002
120.	6C41047470	[1]	LABEL(PTO,ON-OFF)	0.0022(lbs); 0.001
140.	6C41047440	[1]	LABEL(RANGE,SHIFT)	; <=70813 0.0044(lbs); 0.002
140.	6C41047442	[1]	LABEL(RANGE,SHIFT)	; >=70814 0.0044(lbs); 0.002
150.	6C20047330	[1]	LABEL	; <=70778 0.0088(lbs); 0.004
150.	6C20047332	[1]	LABEL	; >=70779 0.0088(lbs); 0.004
160.	6C47047350	[1]	LABEL(HYDRAULIC)	0.0044(lbs); 0.002
170.	6C41047360	[1]	LABEL(4WD)	0.0044(lbs); 0.002
180.	3A11195540	[1]	LABEL,FLDNG ROPS CAUTION	0.0066(lbs); 0.003
190.	6C14054990	[2]	REFLECTOR(LABEL)	0.0066(lbs); 0.003
200.	6C41047450	[1]	LABEL(DPF,IMPORTANT)	ORDER BY REF.No.200 NEW PART.; <=62396 0.0132(lbs); 0.006
200.	6C41047452	[1]	LABEL(DPF,IMPORTANT)	; >=70001 0.0132(lbs); 0.006
200.	6C41047453	[1]	LABEL(DPF,IMPORTANT)	; >=71419 0.0132(lbs); 0.006
200.	6C41047454	[1]	LABEL(DPF,IMPORTANT)	; >=71551 0.0132(lbs); 0.006
210.	6C43047403	[1]	LABEL,KIT(SAFETY)	; <=62396 0.0990(lbs); 0.045
210.	6C43047404	[1]	LABEL,KIT(SAFETY)	; >=70001 0.0990(lbs); 0.045
210.	6C43047405	[1]	LABEL,KIT(SAFETY)	; >=71551 0.0990(lbs); 0.045
