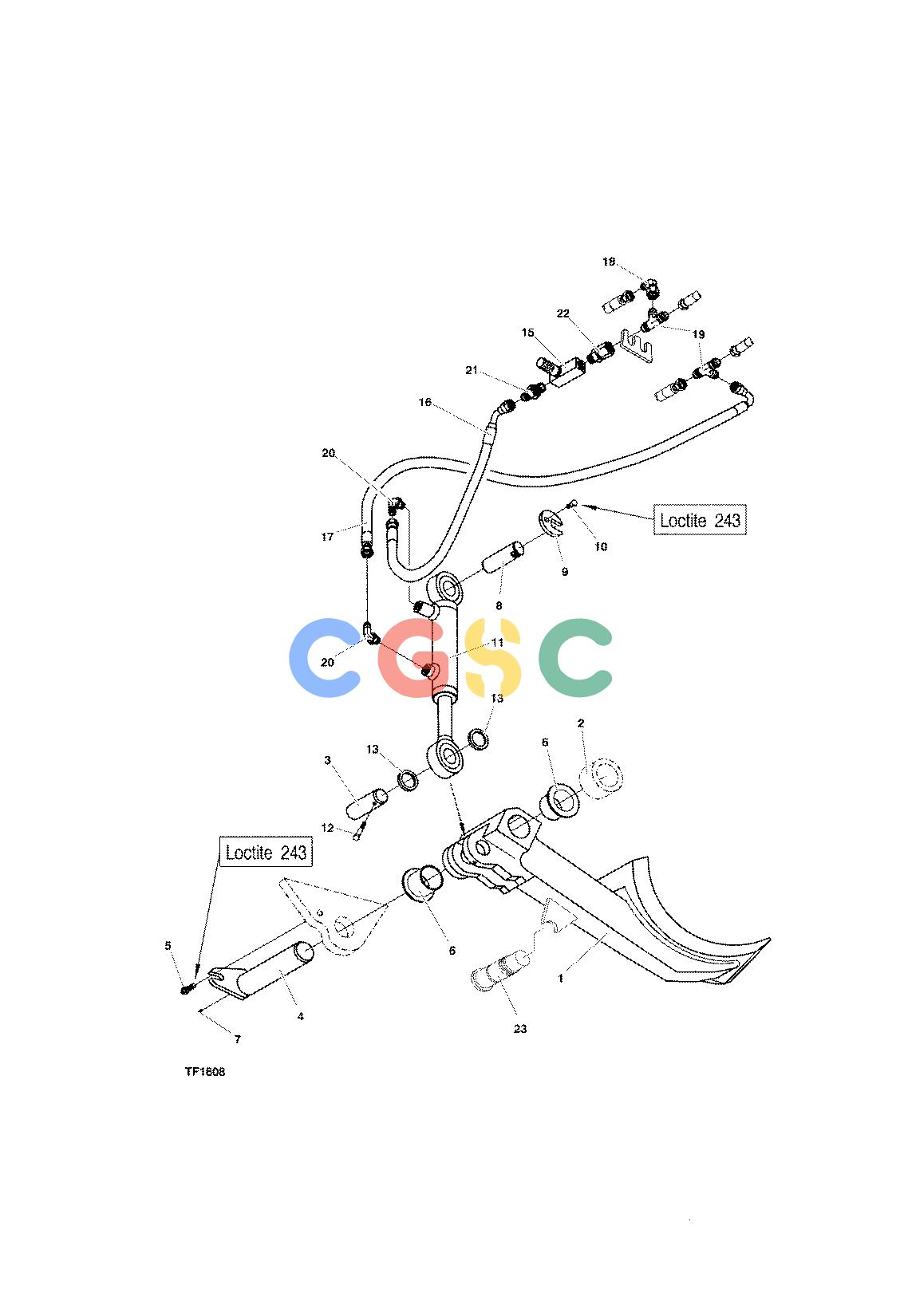

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE DELIMBING TOOL F042138 11 86.A TF1608 [TF1608]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
697 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F058554
|
[1] |
Knife
|
|
| 1. |
F058555
|
[1] |
Knife
|
|
| 2. |
F052922
|
[1] |
Bushing
|
|
| 3. |
F056991
|
[1] |
Pin
|
|
| 4. |
F058338
|
[1] |
PIVOT PIN
|
|
| 5. |
F008445
|
[1] |
Screw
|
|
| 6. |
F015776
|
[2] |
BEARING BUSHING
|
|
| 7. |
F003727
|
[1] |
GREASE NIPPLE
|
|
| 8. |
F047658
|
[1] |
Pin
|
|
| 9. |
F047647
|
[1] |
Plate
|
|
| 10. |
F003523
|
[1] |
Screw
|
|
| 11. |
F055836
|
[1] |
Hydraulic Cylinder
|
|
| 12. |
F003470
|
[1] |
Screw
|
|
| 13. |
F005170
|
[2] |
SEAL RING
|
|
| 15. |
F008675
|
[1] |
Check Valve
|
|
| 16. |
F028694
|
[1] |
HOSE-ASSY
|
|
| 17. |
F054402
|
[1] |
HOSE-ASSY
|
|
| 18. |
F022417
|
[1] |
ELBOW NIPPLE
|
|
| 19. |
F022422
|
[2] |
T-CONNECTION
|
|
| 20. |
F011057
|
[2] |
ELBOW NIPPLE
|
|
| 21. |
F005052
|
[1] |
NIPPLE
|
|
| 22. |
F024875
|
[1] |
CONNECTION
|
|
| 23. |
F059009
|
[1] |
Pin
|
|
