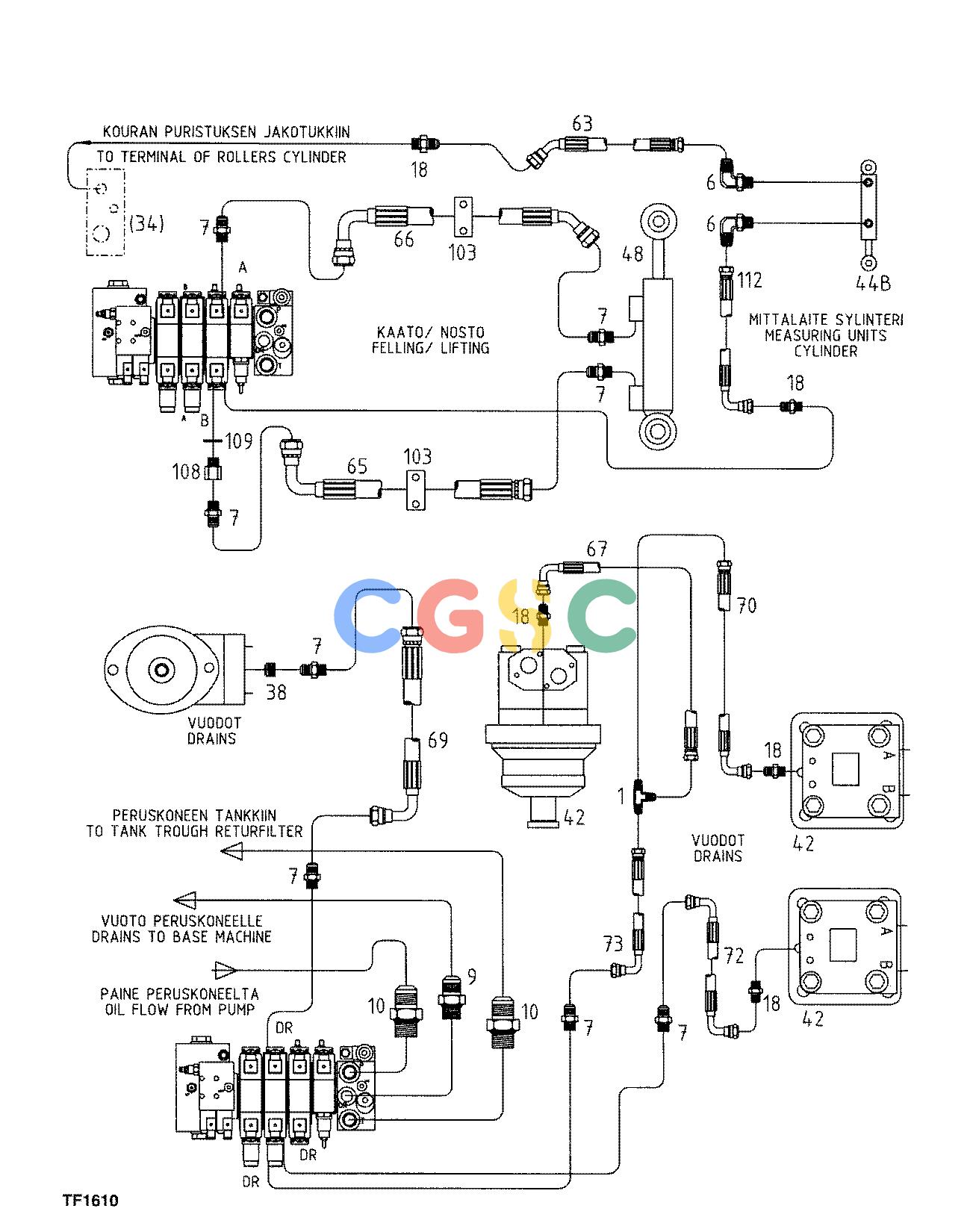

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE HYDRAULIC MOUNTING F042138 11 48.4 TF1610 [TF1610]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
838 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F022422
|
[1] |
T-CONNECTION
|
|
| 6. |
F024599
|
[2] |
ELBOW NIPPLE
|
|
| 7. |
F005055
|
[8] |
NIPPLE
|
|
| 9. |
F005063
|
[1] |
NIPPLE
|
|
| 10. |
F005095
|
[2] |
NIPPLE
|
|
| 18. |
F005057
|
[5] |
NIPPLE
|
|
| 38. |
F008653
|
[1] |
Check Valve
|
|
| 42. |
F034495
|
[3] |
Hydraulic Motor
|
|
| 48. |
F003226
|
[1] |
Cylinder
|
|
| 63. |
F052910
|
[1] |
HOSE-ASSY
|
|
| 65. |
F052905
|
[1] |
HOSE-ASSY
|
|
| 66. |
F031944
|
[1] |
HOSE-ASSY
|
|
| 67. |
F052906
|
[1] |
HOSE-ASSY
|
|
| 69. |
F058551
|
|
HOSE-ASSY
|
|
| 70. |
F052907
|
[1] |
HOSE-ASSY
|
|
| 72. |
F052902
|
[1] |
HOSE-ASSY
|
|
| 73. |
F052903
|
[1] |
HOSE-ASSY
|
|
| 103. |
F008059
|
[2] |
HOSE HOLDER
|
|
| 108. |
F033375
|
[1] |
CONNECTION
|
|
| 109. |
F005166
|
[1] |
SEAL RING
|
|
| 112. |
F052904
|
[1] |
HOSE-ASSY
|
|
