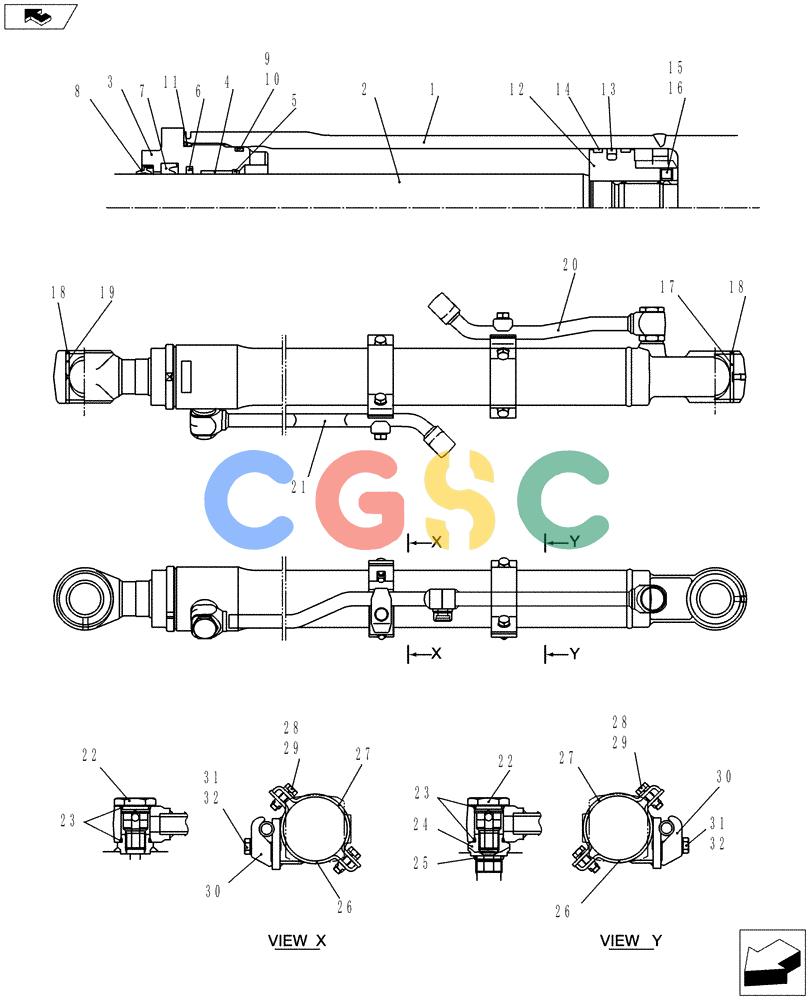

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR ASN YT06-18001 (03-031[02]) - BUCKET CYLINDER INSTALLATION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
574 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONTube Assy. |
| 3. | YT01V00019S003 | [1] | CYLINDER HEAD | KOB |
| 4. | YT01V00019S004 | [1] | BUSHING | KOB |
| 5. | 2438U715S7 | [1] | SNAP RING | KOB |
| 6. | YT01V00019S006 | [1] | RING | KOBBuffer |
| 7. | 2438U715S16 | [1] | SNAP RING | KOBU |
| 8. | YJ01V00008S006 | [1] | WIPER | KOBRing |
| 9. | ZD12G07500 | [1] | O-RING,74.40mm ID x 80.60mm OD x 3.10mm | KOB |
| 10. | PH01V00015S008 | [1] | BACK-UP RING | KOB |
| 11. | ZD11G08000 | [1] | O-RING,79.40mm ID x 85.60mm OD x 3.10mm | KOB |
| 12. | PH01V00015S015 | [1] | PISTON | KOB |
| 13. | 2438U852S15 | [1] | RING | KOBPiston |
| 14. | PH01V00015S017 | [2] | RING | KOB |
| 15. | 2438U1057S16 | [1] | SET SCREW | KOB |
| 16. | 2436U946S11 | [1] | BALL | KOB |
| 17. | YT01V01012P1 | [1] | BUSHING | KOB |
| 18. | 2438U717S21 | [4] | SEAL | KOBWiper |
| 19. | 2438U827S11 | [1] | BUSHING | KOB |
| 20. | YT01V00032S020 | [1] | PIPE | KOB |
| 21. | YT01V00032S021 | [1] | PIPE | KOB |
| 22. | PH01V00014S024 | [2] | PLUG | KOB |
| 23. | ZD12P02600 | [4] | O-RING | KOB |
| 24. | YT01V00032S024 | [1] | NIPPLE | KOBAdapter |
| 25. | ZD12P02400 | [1] | O-RING | KOB |
| 26. | YT01V00032S026 | [2] | BAND | KOBAssy. |
| 27. | YT01V00003S022 | [2] | BAND | KOB |
| 28. | ZS18C10035 | [4] | SCREW,Hex, M10 x 35mm | KOBCap |
| 29. | ZW26X10000 | [4] | LOCK WASHER | KOB |
| 30. | YR01V00001S032 | [2] | CLAMP | KOB |
| 31. | ZS18C12045 | [2] | SCREW,Hex, M12 x 45mm | KOBCap |
| 32. | ZW26X12000 | [2] | WASHER | KOB |
| . . | YT01V00019R100 | [1] | REPAIR KIT | KOBConsists Of Item: 6(1), 7(1), 8(1), 9(1), 10(1), 11(1) |
| . . | YT01V00019R200 | [1] | REPAIR KIT | KOBConsists Of Item: 13(2), 14(2) |
| . . | YT01V00019R300 | [1] | REPAIR KIT | KOBConsists Of Item: 6(1), 7(1), 8(1), 9(1), 10(1), 11(1), 13(1), 14(2) |
| . . | YT01V00032R400 | [1] | REPAIR KIT | KOBConsists Of Item: 1(1), 17(1), 18(2) |
| . . | YT01V00032R500 | [1] | REPAIR KIT | KOBConsists Of Item: 2(1), 19(1), 18(2) |
