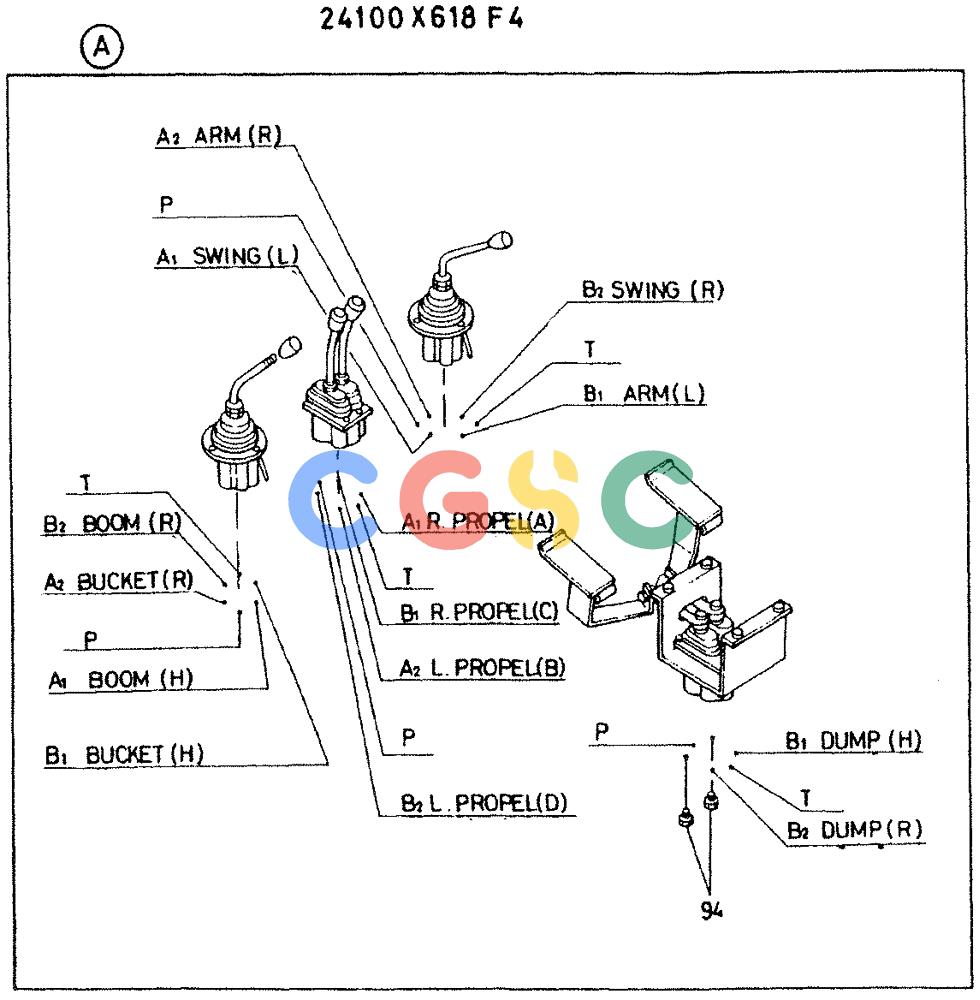

| . . | 24100X618F4 | [1] | CONTROL ASSY, CONSISTS OF REF 1 TO 125 | |
| 1. | B36N0021F3 | [2] | VALVE, PILOT | VALVE, PILOT |
| 2. | 2406T1027 | [2] | LEVER | KOB |
| 3. | 2406T1111 | [2] | LEVER | LEVER |
| 4. | 2436R262 | [1] | VALVE, PILOT | VALVE, PILOT |
| 5. | 2414T991 | [1] | COVER | |
| 6. | 2416P3906 | [1] | STAND | |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONPEDAL ASSY |
| 8. | 2416P3905 | [2] | BLOCK | |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONLEVER ASSY, CONTROL |
| 10. | R36N0009F1 | [1] | FILTER ASSY INCULDE REF 10-1 TO 10-6 | FILTER ASSY INCULDE REF 10-1 TO 10-6 |
| 10-1. | B14P0116 | [1] | CASE | |
| 10-2. | R36P0019 | [1] | HYDRAULIC OIL FILTER | KOB |
| 10-3. | B18T0247 | [1] | FLANGE | |
| 10-4. | ZS23C10030 | [4] | SCREW,Hex Socket Head, M10 x 30mm | KOBM10x1.50x30mm Superseded by part number: ZS28C10030 |
| 10-5. | ZW22K10000 | [4] | LOCK WASHER | KOBLock -- ID 10.2 x OD 15.7 x Th 2.5mm |
| 10-6. | ZD11G05500 | [1] | O-RING,54.40mm ID x 60.60mm OD x 3.10mm | KOBID 54.40 ± 0.49 x OD 60mm |
| 11. | 2436R236F1 | [1] | VALVE, RELIEF | VALVE, RELIEF |
| 12. | 2416P3438 | [2] | STAND, CONTROL | |
| 13. | R20T0188 | [1] | U-BOLT | U-BOLT |
| 14. | ZN11C08007 | [20] | NUT | KOBM08x1.25mm Superseded by part number: ZN16C08007 |
| 15. | ZW22X08000 | [18] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 16. | ZS11C12030 | [8] | CAP,Hex, M12 x 30mm, Cl 4.8 | KOBScrew -- M12x1.75x30mm Superseded by part number: ZM12C12030 |
| 17. | ZN11C12010 | [8] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 18. | ZW22X12000 | [8] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 19. | ZS11C10030 | [11] | CAPSCREW,Hex, M10 x 30mm, Cl 4.8 | KOBSCREW M10x1.50x30mm |
| 20. | ZN11C10008 | [11] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 21. | ZW22X10000 | [11] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 22. | 2419T2002 | [1] | PIN | PIN |
| 23. | 2416P3904 | [1] | BRACKET | |
| 24. | ZX23M06220 | [3] | HOSE ASSY. | KOBHOSE |
| 25. | ZH31K08006 | [6] | ELBOW | KOB |
| 26. | 2420R350D5 | [2] | HOSE | HOSE |
| 27. | 2420R350D3 | [1] | HOSE | HOSE |
| 28. | 2420R350D14 | [1] | HOSE | HOSE |
| 29. | 2420R350D2 | [1] | HOSE | HOSE |
| 30. | ZG51U04000 | [1] | TEE | KOB |
| 31. | 2444Z1786 | [2] | CONNECTOR | CONNECTOR |
| 32. | ZG22B12006 | [2] | HYD CONNECTOR | KOB |
| 33. | ZH22Z06000 | [6] | CONNECTION | KOB |
| 34. | ZH22F06000 | [1] | CONNECTION | KOB |
| 35. | 2483Z33 | [2] | VALVE | VALVE |
| 36. | ZG32B06000 | [2] | ELBOW | KOB |
| 37. | ZG52U06000 | [2] | TEE | KOB |
| 38. | ZG22E06000 | [2] | HYD CONNECTOR | KOB |
| 39. | ZG22E08006 | [2] | LUBE NIPPLE | KOB |
| 40. | ZH21K08004 | [17] | HYD CONNECTOR | KOB |
| 41. | ZH32Z06000 | [9] | ELBOW | KOB |
| 42. | ZH31K08004 | [6] | ELBOW | KOB |
| 43. | 2418N986 | [1] | TUBE | TUBE |
| 44. | 2418N987 | [1] | TUBE | TUBE |
| 45. | ZH22F04000 | [12] | HYD CONNECTOR | KOB |
| 46. | 2418N989 | [1] | TUBE | TUBE |
| 47. | 2418P3937D2 | [1] | TUBE | |
| 48. | 2418N990 | [1] | TUBE | TUBE |
| 49. | 2418N991 | [1] | TUBE | TUBE |
| 50. | 2418N992 | [1] | TUBE | TUBE |
| 51. | 2418N993 | [1] | TUBE | TUBE |
| 52. | 2418P3937D3 | [1] | TUBE | TUBE |
| 53. | 2418N994 | [1] | TUBE | TUBE |
| 54. | 2418N995 | [1] | TUBE | TUBE |
| 61. | 2406P2065D2 | [3] | LEVER | KOB Superseded by part number: 2406P2065D5 |
| 62. | 2406P2065D1 | [1] | BALL, LEVER | BALL, LEVER |
| 64. | 2420R349D18 | [1] | HOSE ASSY | HOSE ASSY |
| 66. | ZS23C06012 | [8] | SCREW,Hex Socket Head, M6 x 12mm | KOBM06x1.0x12mm |
| 67. | ZW22K06000 | [8] | LOCK WASHER | KOBID 06 x OD 10 x Th 1.5mm |
| 68. | 2420R349D14 | [1] | FLEXIBLE HOSE | KOB140mm Long (5-1/2 in) Superseded by part number: HX21E04100DX |
| 69. | 2420R349D13 | [1] | HOSE | HOSE |
| 70. | ZF33E10004 | [29] | ELBOW | ELBOW |
| 71. | ZF23E10004 | [13] | HYD CONNECTOR | KOB |
| 72. | ZG22E04000 | [6] | HYD CONNECTOR | KOB |
| 74. | ZH32Z04000 | [7] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
| 75. | R16T0124 | [4] | BLOCK, TAPPED | |
| 76. | ZX15K08400 | [1] | TUBE | KOB |
| 77. | ZX15K08200 | [6] | TUBE | KOB |
| 78. | ZX15K08120 | [2] | FLEXIBLE HOSE | KOB |
| 79. | R16P0036D8 | [12] | CLAMP | |
| 80. | ZS11C08014 | [12] | CAPSCREW M08x1.25x14mm | CAPSCREW M08x1.25x14mm |
| 81. | ZH22Z04000 | [19] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 82. | ZW22K08000 | [2] | LOCK WASHER | KOBID 08 x OD 13 x Th 2.0mm |
| 83. | ZG21B08004 | [1] | BUSHING | KOB |
| 85. | ZE72T08000 | [1] | PLUG | KOB |
| 86. | ZS23C08070 | [2] | SCREW,Hex Socket Head, M8 x 70mm | KOBM08x1.25x70mm |
| 87. | ZW11K10000 | [2] | WASHER | KOBID 10 x OD 18 x Th 2.0mm |
| 89. | ZS11C08035 | [4] | CAPSCREW -- M08x1.25x35mm | |
| 90. | ZX15K08070 | [1] | FLEXIBLE HOSE | KOB |
| 91. | 2420R384D20 | [1] | HOSE | HOSE |
| 92. | 2420R384D12 | [1] | HOSE | HOSE |
| 93. | R20T0133D2 | [1] | PLUG | PLUG |
| 94. | ZE72T04000 | [3] | PLUG | KOB |
| 95. | ZH32W12000 | [2] | ELBOW | KOB90° -- 3/4"PFx1-1/16-12UN (Incls. O-Ring 237-6012), Alternate, Serial Range: Part-YN02P01165P1 |
| 95-4. | 2445Z7D8 | [2] | O-RING | KOB Superseded by part number: 921206 |
| 96. | ZX21M12130 | [2] | HOSE | |
| 97. | ZG51U08000 | [1] | TEE | KOB |
| 98. | 2444Z1695D3 | [2] | CONNECTOR | CONNECTOR |
| 99. | ZC15X02600 | [8] | CLAMP | KOB |
| 100. | ZG21E08000 | [1] | LUBE NIPPLE | KOB |
| 101. | 2444Z1711 | [2] | ELBOW | ELBOW |
| 102. | 2432Z186D1 | [10] | CLIP | CLIP |
| 103. | 2432Z187 | [10] | RING, CLIP | RING, CLIP |
| 104. | 2418P4351 | [1] | TUBE | TUBE |
| 105. | 2418P4350 | [1] | TUBE | TUBE |
| 106. | ZG32B04000 | [9] | ELBOW | KOB |
| 107. | 2418N1128 | [1] | TUBE | TUBE |
| 111. | 2420R349D420 | [1] | HOSE | KOB4200mm Long (165-3/8 in) Superseded by part number: HX21E04420DX |
| 112. | 2420R349D440 | [1] | HOSE | KOBHOSE |
| 114. | 2420R349D460 | [1] | FLEXIBLE HOSE | KOB4600mm Long (181-7/64 in) |
| 115. | 2420R349D470 | [2] | HOSE 4700mm Long (185-1/32 in) | HOSE 4700mm Long (185-1/32 in) |
| 116. | 2420R349D510 | [1] | HOSE | HOSE |
| 117. | 2420R349D550 | [1] | HOSE | KOB |
| 118. | ZG22U04000 | [1] | HYD CONNECTOR | KOB |
| 119. | 2418T6467 | [4] | TUBE | |
| 120. | 2444T1606 | [1] | CONNECTOR | |
| 121. | 2420R349D480 | [1] | HOSE | HOSE |
