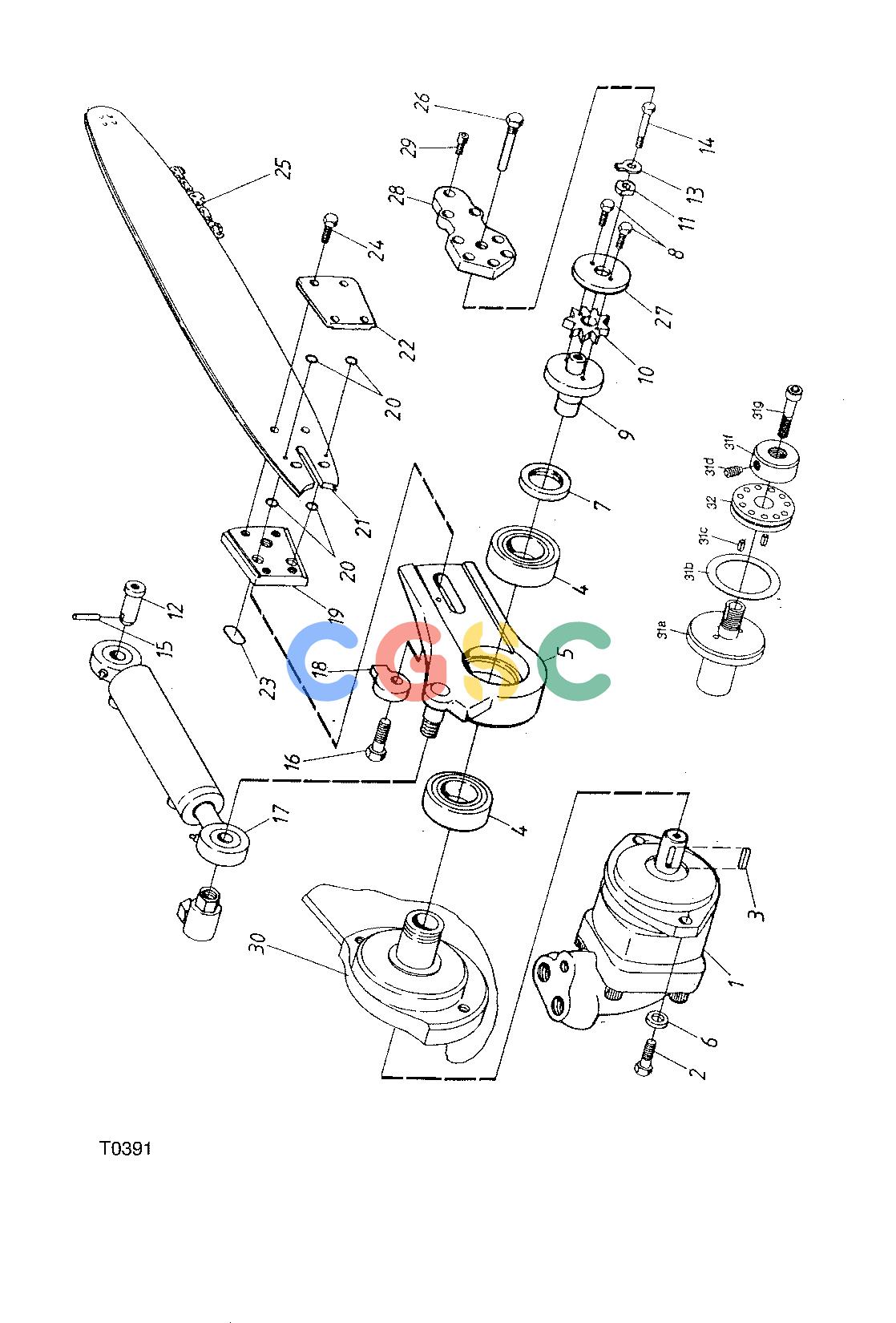

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE SAW F042138 11 16 T0391 [T0391]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
954 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F024764
|
[1] |
Saw Unit
|
|
| 1. |
F024732
|
[1] |
Hydraulic Motor
|
|
| 2. |
F003542
|
[2] |
Screw
|
|
| 3. |
F003222
|
[1] |
Wedge
|
|
| 4. |
F005546
|
[2] |
Ball Bearing
|
|
| 5. |
F024765
|
[1] |
Bracket
|
|
| 6. |
F003340
|
[2] |
Washer
|
|
| 7. |
F024766
|
[1] |
Nut
|
|
| 8. |
F003196
|
[2] |
Screw
|
|
| 9. |
F008560
|
[1] |
EXTENSION SLEEVE
|
|
| 10. |
F008562
|
[1] |
SPROCKET WHEEL
|
|
| 10. |
F030999
|
[1] |
SPROCKET WHEEL
|
|
| 10. |
F045584
|
[1] |
SPROCKET WHEEL
|
|
| 11. |
F008563
|
[1] |
LOCKING PLATE
|
|
| 12. |
F003245
|
[1] |
PIVOT PIN
|
|
| 13. |
F003325
|
[1] |
Lock Washer
|
|
| 14. |
F003197
|
[1] |
Screw
|
|
| 15. |
F003616
|
[1] |
Spring Pin
|
|
| 16. |
F003552
|
[1] |
Screw
|
|
| 17. |
F024733
|
[1] |
Hydraulic Cylinder
|
|
| 18. |
F003241
|
[1] |
CHAIN TIGHTENER
|
|
| 19. |
F021568
|
[1] |
Washer
|
|
| 20. |
F004566
|
[4] |
O-Ring
|
|
| 21. |
F010734
|
[1] |
SWORD
|
|
| 21. |
F053980
|
[1] |
SWORD
|
|
| 22. |
F021569
|
[1] |
Bracket
|
|
| 23. |
F005501
|
[1] |
O-Ring
|
|
| 24. |
F021647
|
[4] |
Screw
|
|
| 25. |
F010756
|
[1] |
Saw Chain
|
|
| 25. |
F053982
|
[1] |
Saw Chain
|
|
| 26. |
F003248
|
[1] |
CHAIN CATCHER
|
|
| 27. |
F031000
|
[1] |
Lock Washer
|
|
| 28. |
F030852
|
[1] |
COVER PLATE
|
|
| 29. |
F003400
|
[8] |
Screw
|
|
| 30. |
F030853
|
[1] |
Bracket
|
|
| 31. |
F052829
|
[1] |
EXTENSION SLEEVE
|
|
| 31A. |
F026716
|
[1] |
Bushing
|
|
| 31B. |
F052830
|
[3] |
Shim
|
|
| 31C. |
F026720
|
[2] |
Spring Pin
|
|
| 31D. |
F008586
|
[1] |
STOP SCREW
|
|
| 31F. |
F050882
|
[1] |
Nut
|
|
| 31G. |
F052837
|
[1] |
Screw
|
|
| 32. |
F023816
|
[1] |
SPROCKET WHEEL
|
|
