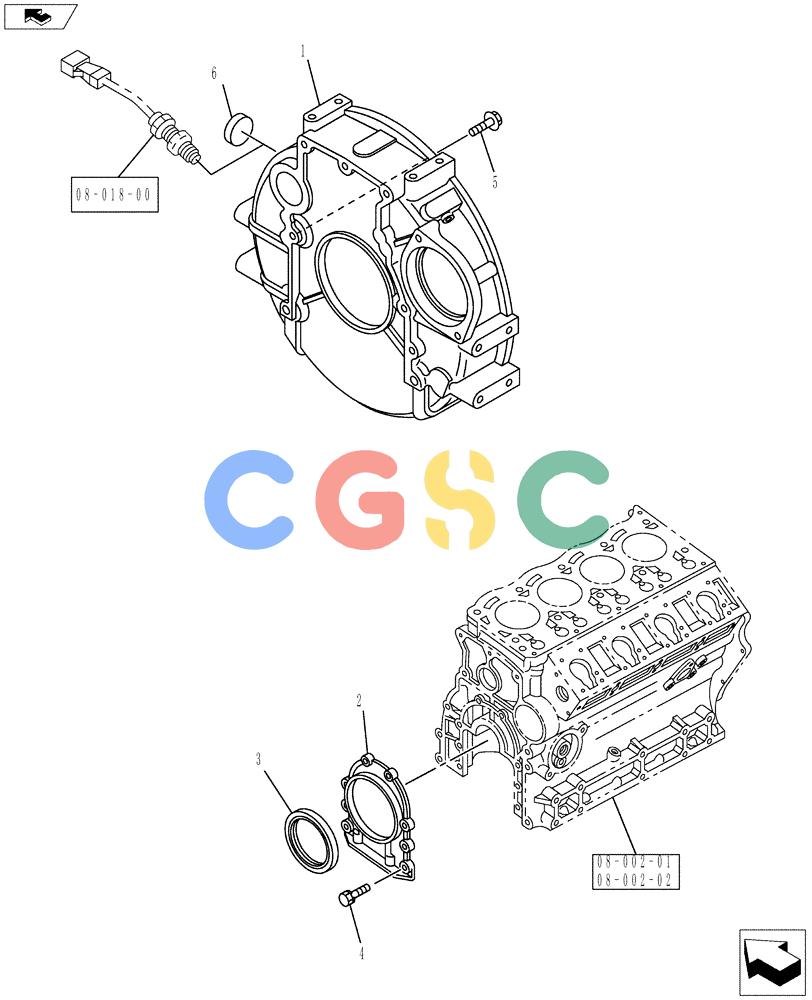

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR ASN YT06-18001 (08-005[02]) - TIMING GEAR CASE AND FLYWHEEL HOUSING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
651 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VI8980903220 | [1] | HOUSING | KOBFlywheel Superseded by part number: VI8980903222 |
| 2. | VI8972310302 | [1] | RETAINER | KOBCr./Shf. |
| 3. | VI5096250940 | [1] | OIL SEAL | KOBCr./Shf., RR. |
| 4. | VI0280506200 | [8] | BOLT | KOBRet .To C/Bl |
| 5. | VI0281510250 | [6] | BOLT | KOBHsg. Superseded by part number: 419915A1 |
| 6. | VI8972207400 | [1] | COVER | KOBHole |
