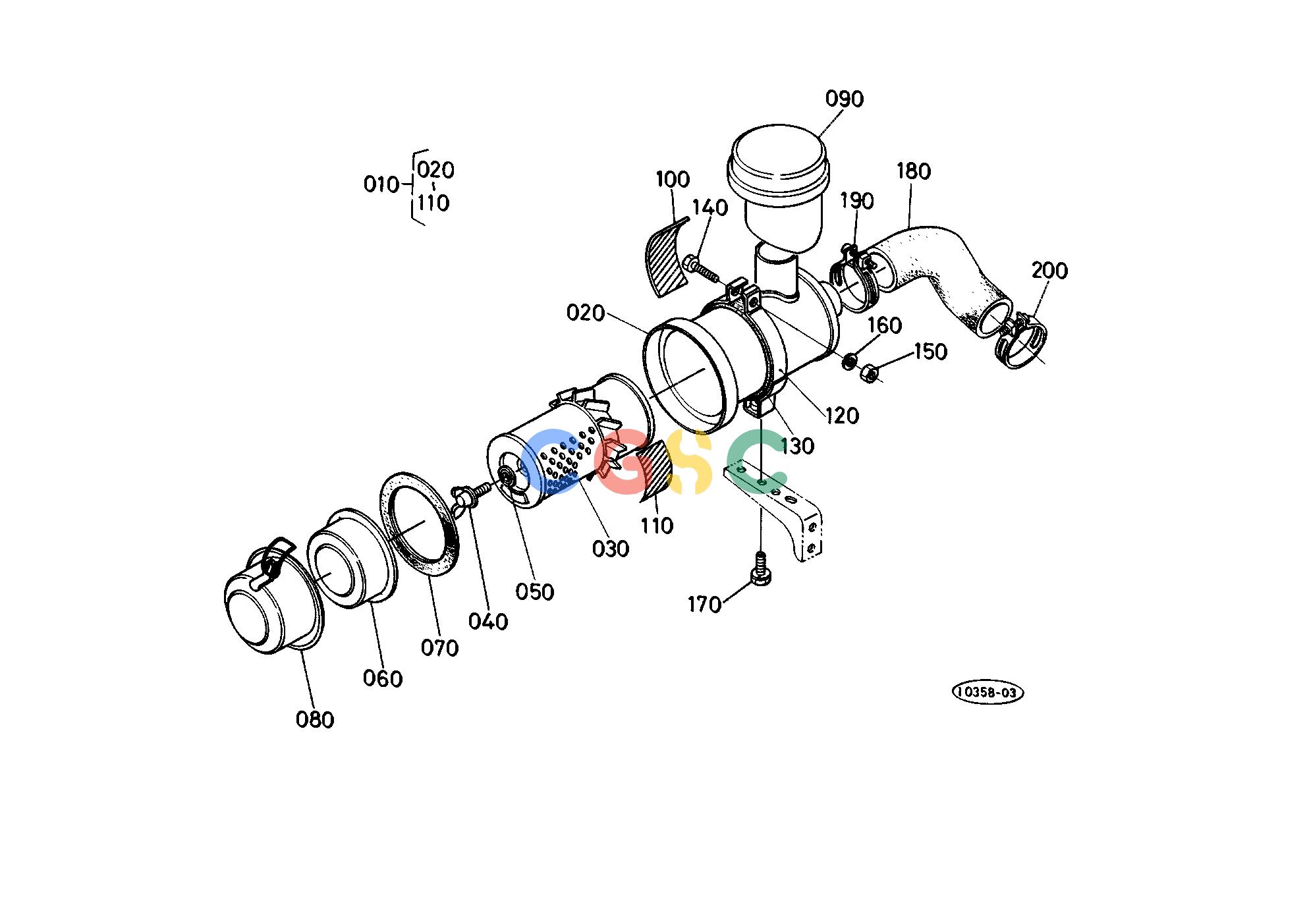

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | 1537211010 | [1] | ASSY CLEANER AIR | [A] [CA] [FR] [U] 0.0000(lbs); 0.000 |
| 010. | 1597211010 | [1] | ASSY CLEANER AIR | [WG] [AU] 3.9600(lbs); 1.800 |
| 020. | 1524111150 | [1] | BODY AIR CLEANER | 1.5180(lbs); 0.690 |
| 030. | 1522211220 | [1] | ELEMENT AIR CLEANER | 0.7568(lbs); 0.344 |
| 040. | 1522192620 | [1] | BOLT WING | 0.0880(lbs); 0.040 |
| 050. | 1522194430 | [1] | WASHER WITH RUBBER | 0.0088(lbs); 0.004 |
| 060. | 1522111410 | [1] | COVER BAFFLE | 0.2288(lbs); 0.104 |
| 070. | 1522111170 | [1] | GASKET A/C COVER | 0.0220(lbs); 0.010 |
| 080. | 1524111160 | [1] | COVER AIR CLEANER | 0.5500(lbs); 0.250 |
| 090. | 1524111350 | [1] | CAP AIR CLEANER | 1.0560(lbs); 0.480 |
| 100. | 1537287452 | [1] | LABEL AIR CLEANER | [A] [CA] [FR] [U] 0.0022(lbs); 0.001 |
| 100. | 1597287450 | [1] | LABEL AIR CLEANER | [WG] [AU] 0.0022(lbs); 0.001 |
| 110. | 1522787480 | [1] | LABEL ELEMENT A/C | [A] [CA] [FR] [U] 0.0088(lbs); 0.004 |
| 110. | 1597287480 | [1] | LABEL ELEMENT A/C | [WG] [AU] 0.0044(lbs); 0.002 |
| 120. | 1537111252 | [1] | BAND AIR CLEANER | 0.4620(lbs); 0.210 |
| 130. | 1537111870 | [1] | CUSHION | 0.0550(lbs); 0.025 |
| 140. | 0122250830 | [1] | BOLT | 0.0286(lbs); 0.013 |
| 150. | 0211450080 | [1] | NUT | 0.0110(lbs); 0.005 |
| 160. | 0451250080 | [1] | WASHER SPRING | 0.0044(lbs); 0.002 |
| 170. | 0112350816 | [2] | BOLT | 0.0242(lbs); 0.011 |
| 180. | 1526211620 | [1] | PIPE INLET | 0.4400(lbs); 0.200 |
| 190. | 1522111720 | [1] | BAND PIPE | 0.0660(lbs); 0.030 |
| 200. | 1526111720 | [1] | BAND PIPE | 0.0660(lbs); 0.030 |
