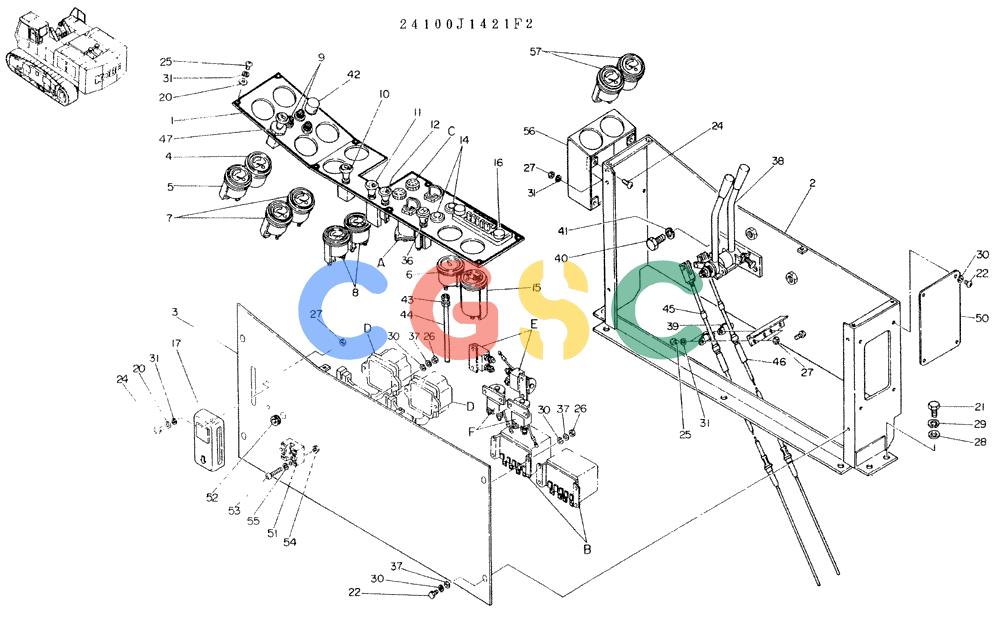

神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (03-010) - PANEL ASSY, INSTAL, P/N 24100J1421F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
806 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J1421F2 | [1] | PANEL ASSY, INST, CONSISTS OF REF 1 TO 57 | |
| 1. | 2416J415 | [1] | PANEL | PANEL |
| 2. | 2416J359 | [1] | BRACKET | |
| 3. | 2416N1163 | [1] | BRACKET | |
| 4. | R79P0055 | [1] | AMMETER | KOB |
| 5. | R79K0002 | [1] | FUEL GAUGE | KOB |
| 6. | 2489U122 | [1] | PRESSURE GAUGE | KOB |
| 7. | 2489U115 | [2] | GAUGE | KOB |
| 6. | 2489U121 | [2] | OIL PRESSURE GAUGE | KOB |
| 9. | 4056R5F1 | [3] | LAMP INCLUDE REF 9-1 | LAMP INCLUDE REF 9-1 |
| 9-1. | 4056Z20D1 | [1] | BULB | KOB |
| 10. | R79T0001 | [1] | SWITCH | KOB |
| 11. | 2479R466 | [1] | SWITCH | |
| 12. | R79T0054 | [1] | SWITCH | SWITCH |
| 14. | 2479Z494D1 | [2] | SWITCH | KOB |
| 15. | R79P0106 | [1] | HOUR-METER | HOUR-METER |
| 16. | 4079U2F1 | [1] | RADIO | KOB |
| 17. | 2479R243F1 | [1] | FUSE BOX | KOB |
| 20. | ZW11K05000 | [14] | WASHER | |
| 21. | ZS11C10020 | [7] | CAPSCREW M10x1.50x20mm | CAPSCREW M10x1.50x20mm |
| 22. | ZS11C06012 | [8] | SCREW,Hex, M6 x 12mm, Cl 4.8 | KOBM06x1.0x12mm Superseded by part number: ZS18C06012 |
| 24. | ZS31C05016 | [10] | BOLT,Phillips Drive, Pan HD, M5 x 16mm | KOBM05x0.8x16mm |
| 25. | ZS31C05012 | [12] | BOLT,Phillips Drive, Pan HD, M5 x 12mm | KOBM05x0.8x12mm |
| 26. | ZN11C06005 | [20] | NUT | KOBNUT M06x1.0mm Superseded by part number: ZN18C06005 |
| 27. | ZN11C05004 | [6] | NUT M05x0.8mm | NUT M05x0.8mm |
| 28. | ZW11X10000 | [7] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 29. | ZW22X10000 | [7] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 30. | ZW22X06000 | [32] | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm |
| 31. | ZW22X05000 | [18] | LOCK WASHER | KOBID 05 x OD 09.2 x Th 1.3mm |
| 36. | R79T0058 | [1] | SWITCH | KOB |
| 37. | ZW11X06000 | [24] | WASHER | KOBID 06.6 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 38. | 24100P393F1 | [1] | LEVER ASST, THROTTLE | |
| 39. | R16T0402D1 | [2] | CLAMP | KOB |
| 40. | ZS11C12030 | [3] | CAP,Hex, M12 x 30mm, Cl 4.8 | KOBScrew -- M12x1.75x30mm Superseded by part number: ZM12C12030 |
| 41. | ZW22X12000 | [3] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 42. | R79P0007F1 | [1] | FILTER ASSY | KOB |
| 43. | ZH21K04004 | [1] | HYD CONNECTOR | KOB |
| 44. | ZX15K04060 | [1] | TUBE, N2 | TUBE, N2 |
| 45. | R06P0039D7F1 | [1] | WIRE HARNESS | KOB |
| 46. | R06P0039D4F1 | [1] | CABLE | KOB |
| 47. | 2479Z214 | [1] | CIGARETTE LIGHTER | KOB |
| 50. | 2414T1047 | [1] | COVER | |
| 51. | 2479Z495 | [1] | CONTROL | KOB |
| 52. | R16T0063D4 | [1] | GROMMET | KOB |
| 53. | ZS31C04040 | [2] | SCREW,Phillips Drive, Pan HD, M4 x 40mm | KOBM04x0.7x40mm |
| 54. | ZN11C04003 | [2] | NUT | KOBM04x0.7mm Superseded by part number: ZN18C04003 |
| 55. | ZW22X04000 | [2] | LOCK WASHER | KOBID 04 x OD 07.6 x Th 1.0mm Superseded by part number: ZW26X04000 |
| 56. | 2416P4205 | [1] | PANEL | |
| 57. | 2489U116 | [1] | GUAGE | |
| A. | VA3089005200 | [2] | SWITCH | KOBSTARTER |
| B. | VA3089004500 | [2] | RELAY | |
| C. | VA3096690100 | [2] | HEATER INDICATOR | HEATER INDICATOR |
| D. | VA3096690200 | [2] | RELAY | KOBSTARTER SAFETY |
| E. | VAME037140 | [2] | RELAY STARTER | RELAY STARTER |
| F. | VA3096600071 | [2] | RELAY | KOBMETER |
