神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (04-011) - LUB ASSY, P/N 24100J1453F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
150 次

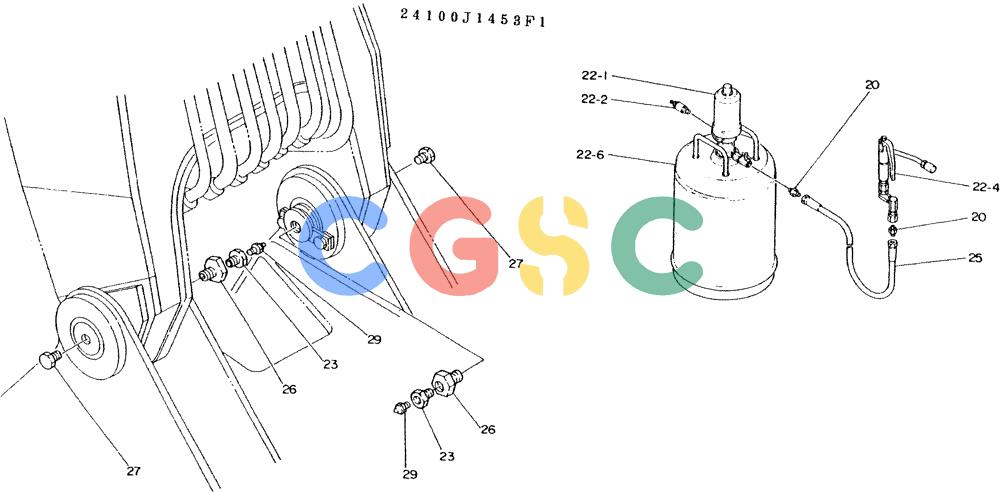

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J1453F1 | [1] | LUB ASSY CONSISTS OF REF. 20 TO 29 | |
| 20. | ZH22Z04000 | [2] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 22. | 2421U2F2 | [1] | PUMP | KOBCONSISTS OF REF. 22-1 TO 22-6 |
| 22-1. | 2421U2S1 | [1] | PUMP | KOB |
| 22-2. | 2421U2S2 | [1] | CHUCK, AIR | CHUCK, AIR |
| 22-4. | 2421U2S4 | [1] | GUN, GREASE | GUN, GREASE |
| 22-6. | 2421U2S6 | [1] | CABINET | CABINET |
| 23. | R44P0034 | [2] | CONNECTOR | CONNECTOR |
| 24. | 24100X471F1 | [1] | LUB ASSY | |
| 25. | 2444R531D1 | [1] | HOSE | HOSE |
| 26. | R20T0125 | [2] | PLUG | KOB |
| 27. | ZE82T06000 | [2] | PLUG | KOBPipe, 3/8" PT |
| 28. | ZG32B06000 | [2] | ELBOW | KOB |
| 29. | ZG91S04000 | [2] | LUBE NIPPLE | KOB1/4" PT -- Straight |
