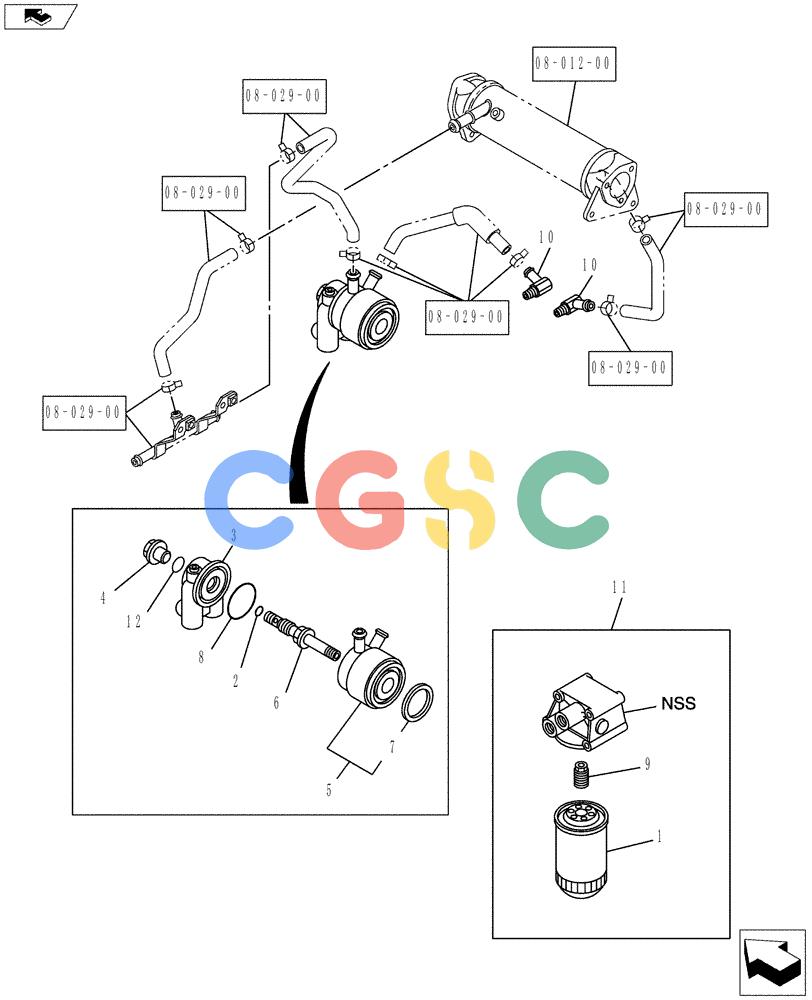

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR ASN YT06-18001 (08-025[00]) - OIL COOLER AND OIL FILTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
1005 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VI8980756760 | [1] | ELEMENT | KOBOil Filter Superseded by part number: 87729947 |
| 2. | VI1096235880 | [1] | GASKET | KOBCenter Bolt |
| 3. | VI8980805460 | [1] | COVER | KOBOil Cooler Superseded by part number: 47544050 |
| 4. | VI8980489680 | [1] | PLUG | KOBOil Cooler Superseded by part number: 47544053 |
| 5. | VI8971023200 | [1] | COOLER ASSY. | KOBOil Superseded by part number: 47544057 |
| 6. | VI8980489670 | [1] | BOLT | KOBCenter |
| 7. | VI8943708280 | [1] | GASKET | KOBOil Cooler Superseded by part number: 47544063 |
| 8. | VI1096235650 | [1] | GASKET | KOBCover To Cooler |
| 9. | VI8980757200 | [1] | ADAPTER | KOBOil Filter Superseded by part number: 47544067 |
| 10. | VI8980636680 | [2] | HYD CONNECTOR | KOBWater |
| 11. | VI8980756710 | [1] | FILTER ASSY | KOBAsm., Oil Superseded by part number: 47544071 |
| 12. | VI8943966790 | [1] | GASKET | KOBPlug, Oil Port Cover Superseded by part number: 47544073 |
