神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (05-008) - POWER-PLANT INSTAL, P/N 24100X630F6 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
774 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

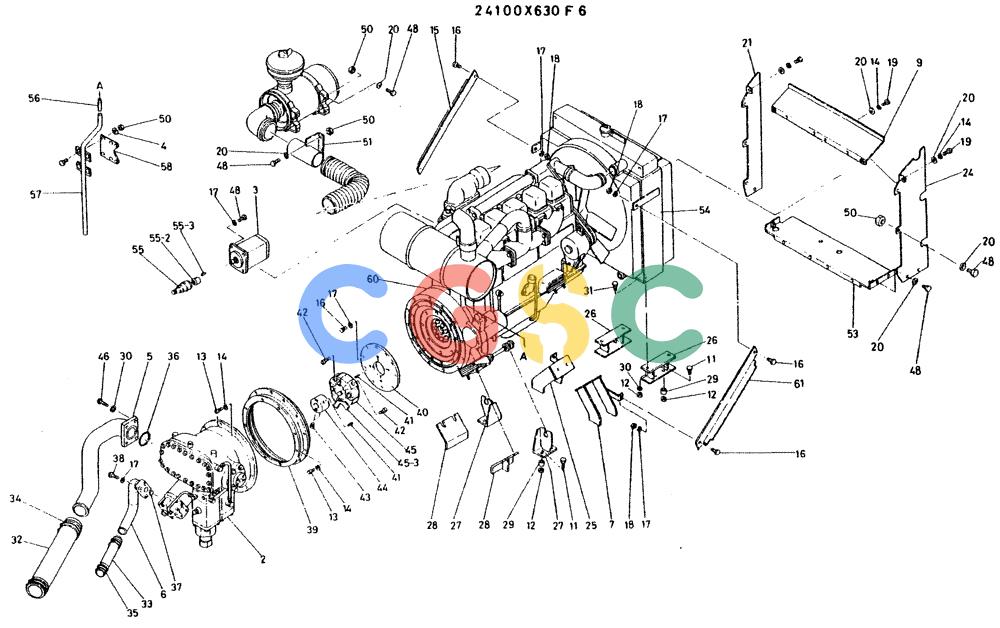

| . . | 24100X630F6 | [1] | INSTAL, POWER-PLANT CONSISTS OF REF. 2 TO 61 | |
| 2. | 2441U210F2 | [1] | PUMP | PUMP |
| 3. | 2441R6F1 | [1] | PUMP | |
| . . | ZW22X10000 | [34] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 5. | 2418N914 | [1] | PIPE | KOB |
| 6. | 2418P3783 | [1] | PIPE | PIPE |
| 7. | 2416N1825D1 | [1] | BRACKET | |
| 9. | 2427P1229 | [1] | DUCT | |
| 11. | ZS13C16060 | [8] | CAPSCREW | KOBSCREW M16x2.0x60mm |
| 12. | ZN12C16013 | [12] | NUT | KOBM16x2.0mm |
| 13. | ZS23C10030 | [20] | SCREW,Hex Socket Head, M10 x 30mm | KOBM10x1.50x30mm Superseded by part number: ZS28C10030 |
| 14. | ZW22K10000 | [38] | LOCK WASHER | KOBLock -- ID 10.2 x OD 15.7 x Th 2.5mm |
| 15. | 2416T6633 | [1] | STAY | |
| 16. | ZS12C12030 | [14] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm Superseded by part number: ZS18C12030 |
| 17. | ZW22X12000 | [18] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 18. | ZN11C12010 | [1] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 19. | ZS11F10025 | [8] | CAPSCREW | |
| 20. | ZW11X10000 | [18] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 21. | 2427P1228D2 | [1] | DUCT | |
| 24. | 2427P1227D2 | [1] | DUCT | |
| 25. | 2416N1825D2 | [1] | BRACKET | |
| 26. | 2416P3375 | [2] | BRACKET | |
| 27. | 2416P3376 | [2] | BRACKET | |
| 28. | 2416P4963 | [2] | BRACKET | |
| 29. | 2416T4036 | [8] | WASHER | |
| 30. | ZW22X16000 | [24] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 31. | ZS11C16045 | [4] | CAPSCREW | |
| 32. | R18T0001D1 | [1] | HOSE | KOB |
| 33. | 2444Z1697D1 | [1] | HOSE | KOB |
| 34. | ZC15X12500 | [1] | CLIP | KOB |
| 35. | ZC15X08000 | [4] | CLIP | KOB |
| 36. | ZD11G11000 | [1] | O-RING,109.40mm ID x 115.60mm OD x 3.10mm | KOBID 109.40 ± 0.91 x OD 115mm |
| 37. | ZD11G05000 | [1] | O-RING,3.1mm Thk x 49.4mm ID, 70 Duro | KOBO-Ring -- ID 49.40 ± 0.45 x OD 55mm |
| 38. | ZS12C12040 | [4] | CAPSCREW M12x1.75x40mm | CAPSCREW M12x1.75x40mm |
| 39. | 2414N722 | [1] | HOUSING | |
| 40. | 2418P2981 | [1] | FLANGE | KOB |
| 41. | ZP26D05014 | [12] | ROLL PIN | KOB |
| 42. | ZS23C16050 | [8] | CAPSCREW,Hex Socket Head, M16 x 50mm | KOBSCREW M16x2.0x50mm |
| 43. | ZS73C16022 | [2] | SCREW | KOBM16x2.0x22mm Superseded by part number: ZS73C16025 |
| 44. | 2418P2982 | [1] | COUPLING | KOB |
| 45. | 2418R139F1 | [1] | COUPLING INCL. REF. 45-3 | COUPLING INCL. REF. 45-3 |
| 445-3. | 2418R139E3 | [1] | FLEXIBLE COUPLING | KOB Superseded by part number: LQ30P01003S001 |
| 46. | ZS12C16040 | [4] | SCREW,Hex, M16 x 40mm | KOBM16x2.0x40mm |
| 48. | ZS12C10025 | [14] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm Superseded by part number: ZS18C10025 |
| 49. | ZS11C10012 | [18] | CAPSCREW | |
| 50. | ZN11C10008 | [10] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 51. | 2418T5022 | [1] | PIPE | |
| 53. | 2427P1231D2 | [1] | DUCT | |
| 54. | 2452U101FI | [1] | RADIATOR ASSY | |
| 55. | 2410P489 | [1] | SHAFT CONSISTS OF REF. 55-2 TO 55-3 | |
| 55-2. | 2418T5198 | [1] | SLEEVE | |
| 55-3. | 2420T3061 | [1] | KEY | |
| 56. | 2418T5600 | [1] | PIPE | |
| 57. | 2418P4495 | [1] | PIPE | |
| 58. | 2416T5547 | [1] | BRACKET | |
| 60. | 2451U124F3 | [1] | ENGINE ASSY | |
| 61. | 2416T7762 | [1] | STAY | |
