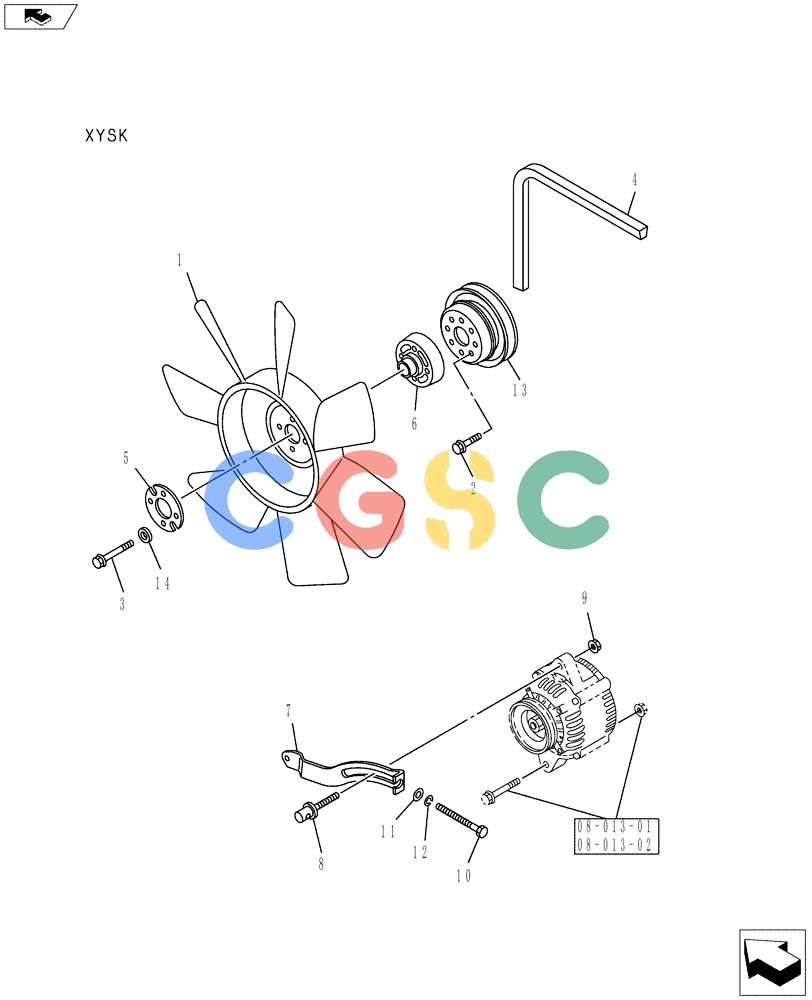

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR ASN YT06-18001 (08-032[00]) - FAN AND FAN BELT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
511 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VI8972876961 | [1] | FAN | KOBCooling |
| 2. | VI0208006120 | [2] | BOLT | KOBFan |
| 3. | VI0280506600 | [4] | BOLT | KOBCooling Fan |
| 4. | VI8980490330 | [1] | BELT | KOBCooling Fan |
| 5. | VI8970634003 | [1] | SPACER | KOBFan |
| 6. | VI9136420780 | [1] | SPACER | KOBFan |
| 7. | VI8980488910 | [1] | ADJUSTING PLATE | KOB |
| 8. | VI8972572230 | [1] | SLIDE | KOBPiece |
| 9. | VI0911802080 | [1] | NUT | KOBAdj. Plate |
| 10. | VI8971727201 | [1] | BOLT | KOBAdj. |
| 11. | VI0916147080 | [1] | WASHER | KOBPl, Adj. Plate |
| 12. | VI0915108080 | [1] | WASHER | KOBLK, Adj. Plate |
| 13. | VI8980044530 | [1] | PULLEY | KOBFan Center |
| 14. | VI0916107060 | [4] | WASHER | KOBPl, Fan |
