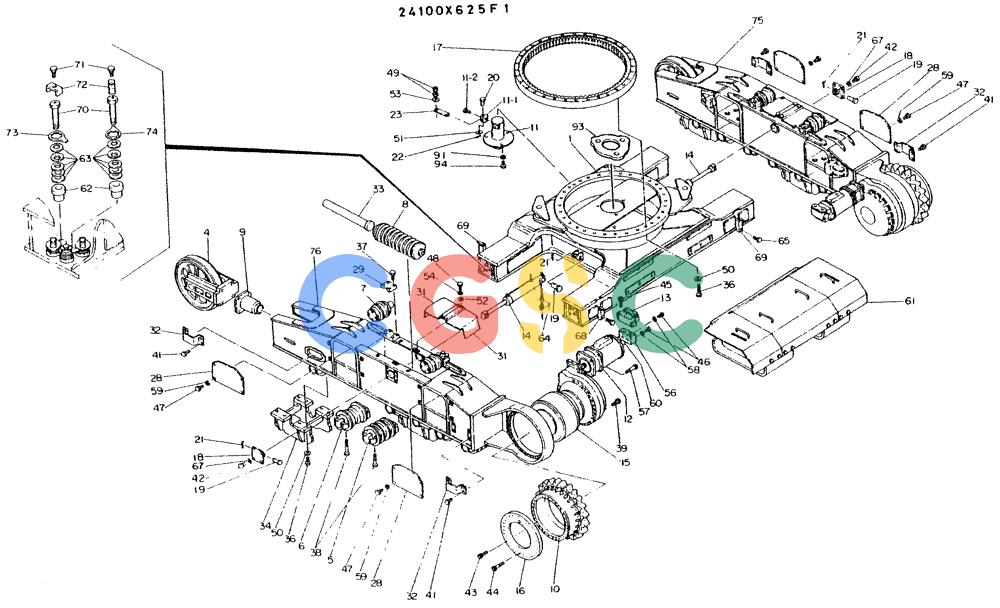

神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (08-002) - LOW INSTAL, P/N 24100X625F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
161 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100X625F1 | [1] | INSTAL, LOW CONSISTS OF REF. 1 TO 94 | |
| 1. | 2422X297 | [1] | CARBODY | |
| 4. | 24100J1813F1 | [2] | IDLER ASSY | |
| 5. | 24100J1848F1 | [8] | ROLLER | KOB Superseded by part number: 24100J1848F3 |
| 6. | 24100J1848F2 | [6] | ROLLER | KOB |
| 7. | 24100J1849F1 | [4] | ROLLER | KOB |
| 8. | 24100N1102F1 | [2] | SPRING ASSY, TRACK | |
| 9. | 24100N1103F1 | [2] | CYLINDER ASSY | |
| 10. | 2404J116 | [2] | SPROCKET | KOB |
| 11. | 2436U259F1 | [1] | JOINT, SWIVEL | JOINT, SWIVEL |
| 11-1. | 2436U259S10 | [1] | BRACKET | BRACKET |
| 11-2. | ZS23C08022 | [4] | CAPSCREW | |
| 12. | 2441U209F1 | [2] | MOTOR | MOTOR |
| 13. | 2436U356F1 | [2] | BRAKE VALVE | KOB |
| 14. | 2438U376F1 | [2] | CYLINDER | KOB |
| 15. | 24100X419F3 | [2] | GEAR REDUCTION UNIT | KOB |
| 16. | 2418N1123 | [2] | COUPLING | |
| 17. | 2425U126 | [1] | RING, SLEWING | RING, SLEWING |
| 18. | 2416P3699 | [2] | BRACKET | |
| 19. | ZP45X35095 | [4] | PIN | |
| 20. | B19T0091 | [1] | PIN | |
| 21. | ZP15D08045 | [4] | COTTER-PIN | |
| 22. | ZP15D05030 | [1] | BASE PLATE Pin, Cotter | BASE PLATE Pin, Cotter |
| 23. | B06T0014 | [1] | LINK | |
| 28. | 2414T949 | [4] | COVER | |
| 29. | 2416T4659 | [4] | CLAMP | |
| 31. | 2414T955 | [4] | COVER | |
| 32. | 2429P318 | [4] | STEP | |
| 33. | 2420T2973 | [2] | ROD | ROD |
| 34. | 2414P1352 | [4] | GUIDE, CRAWLER TRACK | |
| 35. | 2420T3118 | [20] | CAPSCREW | |
| 36. | ZS13C24080 | [68] | SCREW | KOBM24x3.0x80mm |
| 37. | ZS13C24090 | [16] | SCREW | KOB |
| 38. | ZS13C24120 | [56] | SCREW | KOBM24x3.0x120mm |
| 39. | ZS23C24130 | [36] | CAPSCREW M24x3.0x130mm | CAPSCREW M24x3.0x130mm |
| 41. | ZS12C16030 | [20] | SCREW,Hex, M16 x 30mm | KOBM16x2.0x30mm |
| 42. | ZS13C16035 | [8] | SCREW | KOBM16x2.0x35mm |
| 43. | ZS23C16045 | [64] | CAP,Hex Socket Head, M16 x 45mm | KOBScrew -- M16x2.0x45mm |
| 44. | ZS23C16070 | [64] | SCREW,Hex Socket Head, M16 x 70mm | KOBM16x2.0x70mm |
| 45. | ZS23C16150 | [16] | CAPSCREW | |
| 46. | ZS23C12120 | [16] | SCREW,Hex Socket Head, M12 x 120mm | KOBM12x1.75x120mm |
| 47. | ZS12C12020 | [16] | SCREW,Hex, M12 x 20mm | KOBM12x1.75x20mm Superseded by part number: ZS18C12020 |
| 48. | ZS12C10020 | [8] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm Superseded by part number: ZS18C10020 |
| 49. | ZN11C12010 | [2] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 50. | R16T0152D4 | [68] | WASHER | KOBFlat -- ID 24 x OD 44 x Th 4.5mm |
| 51. | ZW11K16000 | [1] | WASHER | |
| 52. | ZW11K10000 | [8] | WASHER | KOBID 10 x OD 18 x Th 2.0mm |
| 53. | ZW11K12000 | [1] | WASHER | |
| 54. | ZW22K10000 | [8] | LOCK WASHER | KOBLock -- ID 10.2 x OD 15.7 x Th 2.5mm |
| 56. | 2418P3803 | [2] | FLANGE | |
| 57. | ZS13C20190 | [8] | CAPSCREW | |
| 58. | ZW22K12000 | [16] | LOCK WASHER | KOBID 12.2 x OD 17.8 x Th 2.5mm |
| 59. | ZW22K12000 | [16] | LOCK WASHER | KOBID 12.2 x OD 17.8 x Th 2.5mm |
| 60. | ZD12P03400 | [4] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 61. | 24100J1892F1 | [1] | COVER ASSY | |
| 62. | 2418T5221 | [20] | SPACER | |
| 63. | 2417Z181 | [100] | SPRING | KOB |
| 64. | 2444Z1779 | [4] | ADAPTER | ADAPTER |
| 65. | ZS12C16030 | [4] | SCREW,Hex, M16 x 30mm | KOBM16x2.0x30mm |
| 66. | ZD12G05000 | [4] | O-RING,49.40mm ID x 55.60mm OD x 3.10mm | KOBID 49.40 ± 0.45 x OD 55mm |
| 67. | ZW11X16000 | [8] | WASHER | KOBID 16 x OD 30 x Th 2.3mm |
| 68. | 2419T2365D1 | [2] | PIN | |
| 69. | 2419T2365D2 | [2] | PIN | |
| 70. | 2420T3443 | [20] | SCREW | KOB |
| 71. | 2420T3444 | [20] | CAPSCREW | CAPSCREW |
| 72. | 2416T6213 | [20] | BRACKET | BRACKET |
| 73. | 2418P5238 | [12] | PLATE | KOB |
| 74. | 2418P5239 | [8] | PLATE | KOB |
| 75. | 2422J889D1 | [1] | FRAME, CRAWLER | |
| 76. | 2422J889D2 | [1] | FRAME, CRAWLER | |
| 91. | 2418T6689 | [3] | SPACER | |
| 93. | 2418P5868 | [1] | PLATE | |
| 94. | ZS13C16080 | [3] | CAPSCREW | KOBSCREW M16x2.0x80mm |
