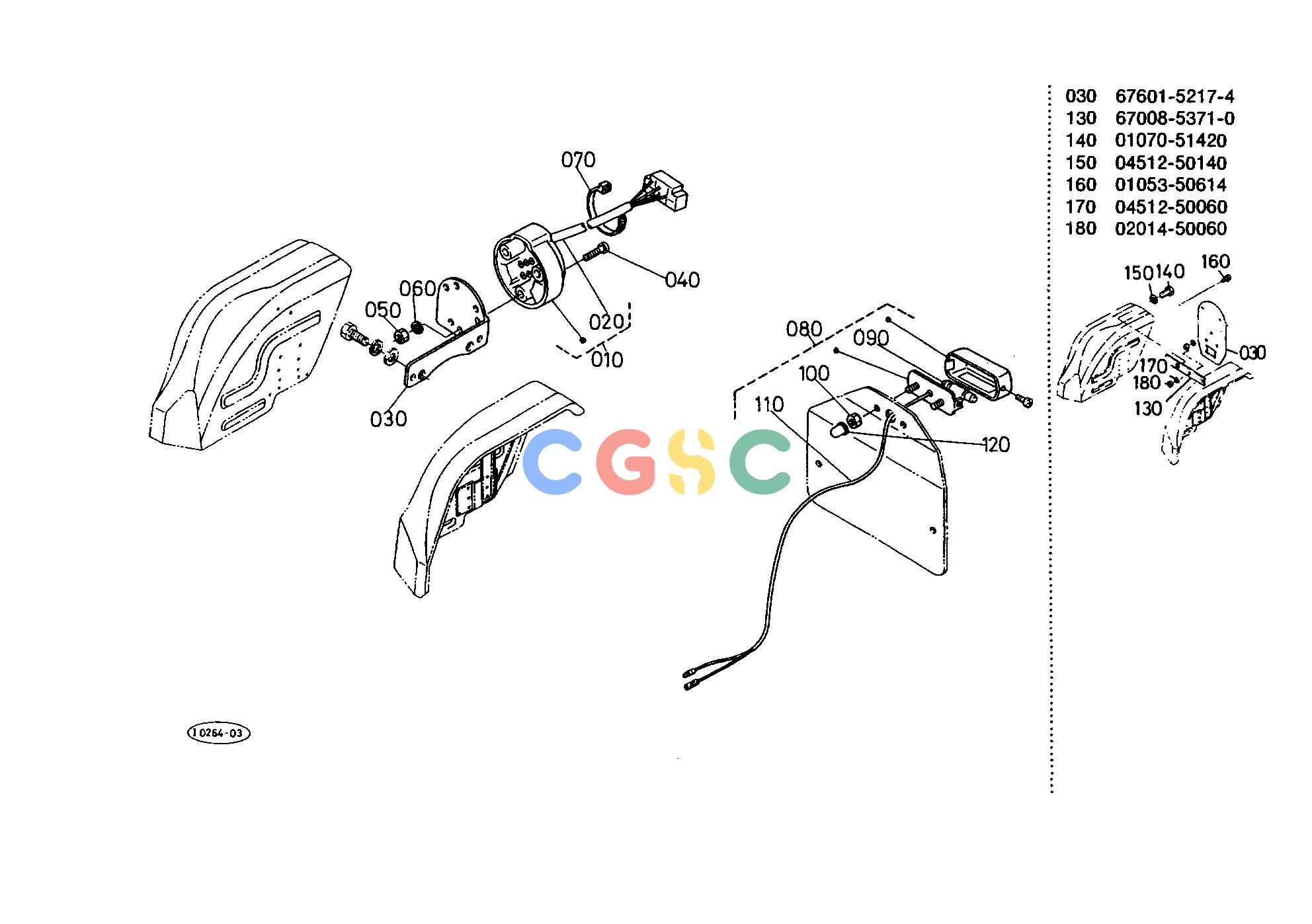

久保田零件查询T04600 TRAILER SOCKET [WG] ELECTRICAL SYSTEMEPC Kubota online_久保田Kubota_工程机械

久保田零件查询T04600 TRAILER SOCKET [WG] ELECTRICAL SYSTEMEPC Kubota online

广数供应链运营团队, 15 02月, 2025，浏览： 608 次

Pos.	Part No	Qty	Parts name	Comments
010.	6670955850	[1]	ASSY SOCKET TRAILER	0.0000(lbs); 0.000
020.	6670955250	[1]	WIRE HARNESS	0.0000(lbs); 0.000
030.	6760152174	[1]	PLATE TRAILERSOCKET	; <=51365 0.2200(lbs); 0.100
030.	6670952810	[2]	PLATE TRAILERSOCKET	; =>51366 0.4400(lbs); 0.200
040.	0305450530	[3]	SCREW PAN HEAD	0.0110(lbs); 0.005
050.	0205450050	[3]	NUT	0.0044(lbs); 0.002
060.	0451250050	[3]	WASHER SPRING	0.0022(lbs); 0.001
070.	5358164150	[3]	BAND CORD	0.0044(lbs); 0.002
080.	6784155240	[3]	ASSY HARNESS LIGHT	0.1540(lbs); 0.070
090.	6670991320	[1]	BULB	KE SUPPLY 0.0000(lbs); 0.000
100.	0201450060	[3]	NUT	0.0044(lbs); 0.002
110.	6670955310	[1]	WIRE HARNESS	0.0330(lbs); 0.015
120.	1340744890	[2]	CAP	0.0022(lbs); 0.001
130.	6700853710	[1]	STAY TRAILER SOCKET	; <=51365 0.1980(lbs); 0.090
140.	0107051420	[1]	BOLT	; <=51365 0.0000(lbs); 0.000
150.	0451250140	[1]	WASHER SPRING	; <=51365 0.0154(lbs); 0.007
160.	0105350614	[2]	BOLT	; <=51365 0.0110(lbs); 0.005
170.	0451250060	[2]	WASHER SPRING	; <=51365 0.0022(lbs); 0.001
180.	0201450060	[2]	NUT	; <=51365 0.0044(lbs); 0.002
