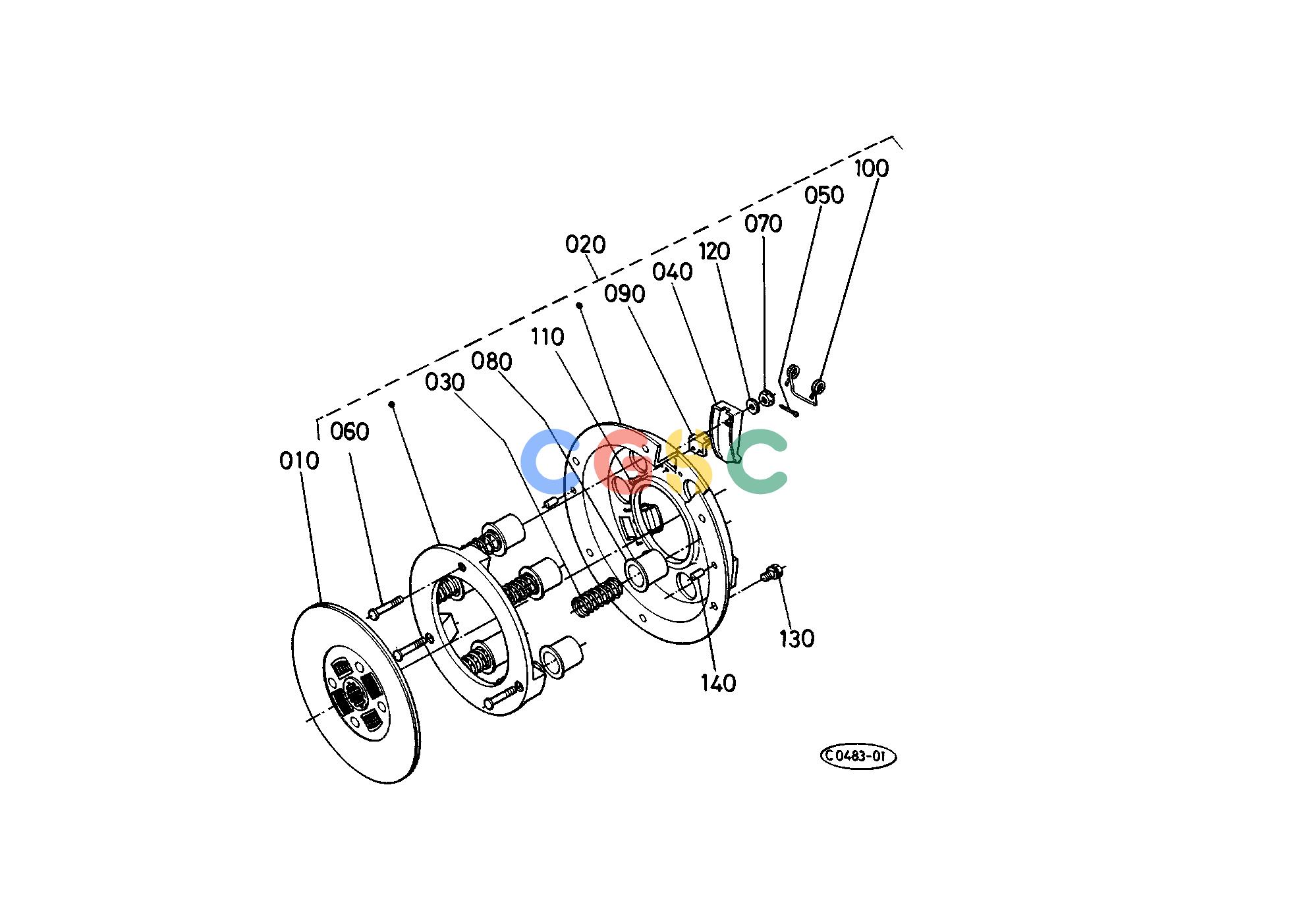

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6659113300
|
[1] |
ASSY DISK CLUTCH
|
1.9800(lbs); 0.900
|
| 020. |
6659113400
|
[1] |
ASSY PLATE PRESSURE
|
6.6000(lbs); 3.000
|
| 030. |
6659113310
|
[6] |
SPRING PRESSURE
|
0.1276(lbs); 0.058
|
| 040. |
3220014540
|
[3] |
LEVER CLUTCH
|
0.1100(lbs); 0.050
|
| 050. |
3213014560
|
[3] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 060. |
3220014570
|
[3] |
BOLT LEVER
|
0.0198(lbs); 0.009
|
| 070. |
3213014580
|
[3] |
NUT LEVER
|
0.0066(lbs); 0.003
|
| 080. |
3213014590
|
[6] |
CAP
|
0.0528(lbs); 0.024
|
| 090. |
3213014620
|
[3] |
SEAT LEVER
|
0.0374(lbs); 0.017
|
| 100. |
3213014630
|
[3] |
SPRING RETURN
|
0.0132(lbs); 0.006
|
| 110. |
3213014640
|
[6] |
RIVET
|
0.0022(lbs); 0.001
|
| 120. |
3213014650
|
[3] |
WASHER RELEASE YOKE
|
0.0044(lbs); 0.002
|
| 130. |
0112350816
|
[6] |
BOLT
|
0.0242(lbs); 0.011
|
| 140. |
0501200614
|
[2] |
PIN STRAIGHT
|
0.0088(lbs); 0.004
|
