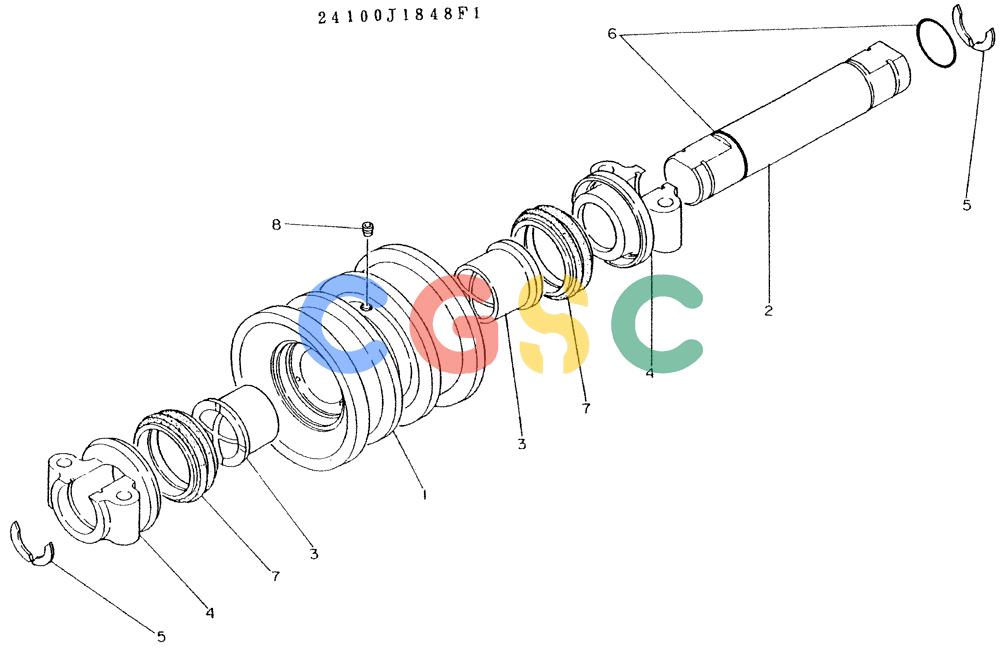

神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (08-008) - ROLLER ASSY, P/N 24100J1848F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
532 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J1848F1 | [1] | ROLLER | KOBCONSISTS OF REF 1 TO 8 Superseded by part number: 24100J1848F3 |
| 1. | 2413J200 | [1] | | |
| 2. | 2410N335 | [1] | SHAFT | SHAFT |
| 3. | 2405P220 | [2] | BUSHING | KOB |
| 4. | 2418N899 | [2] | COLLER | |
| 5. | 2418T3946 | [4] | RING | KOB |
| 6. | ZD11G08500 | [2] | O-RING,84.40mm ID x 90.60mm OD x 3.10mm | KOBID 84.40 ± 0.61 x OD 90mm |
| 7. | R45P0018D15 | [2] | SEAL | KOB Superseded by part number: ZD58F13038 |
| 8. | ZE82T04000 | [1] | PLUG | KOB1/4" PT |
