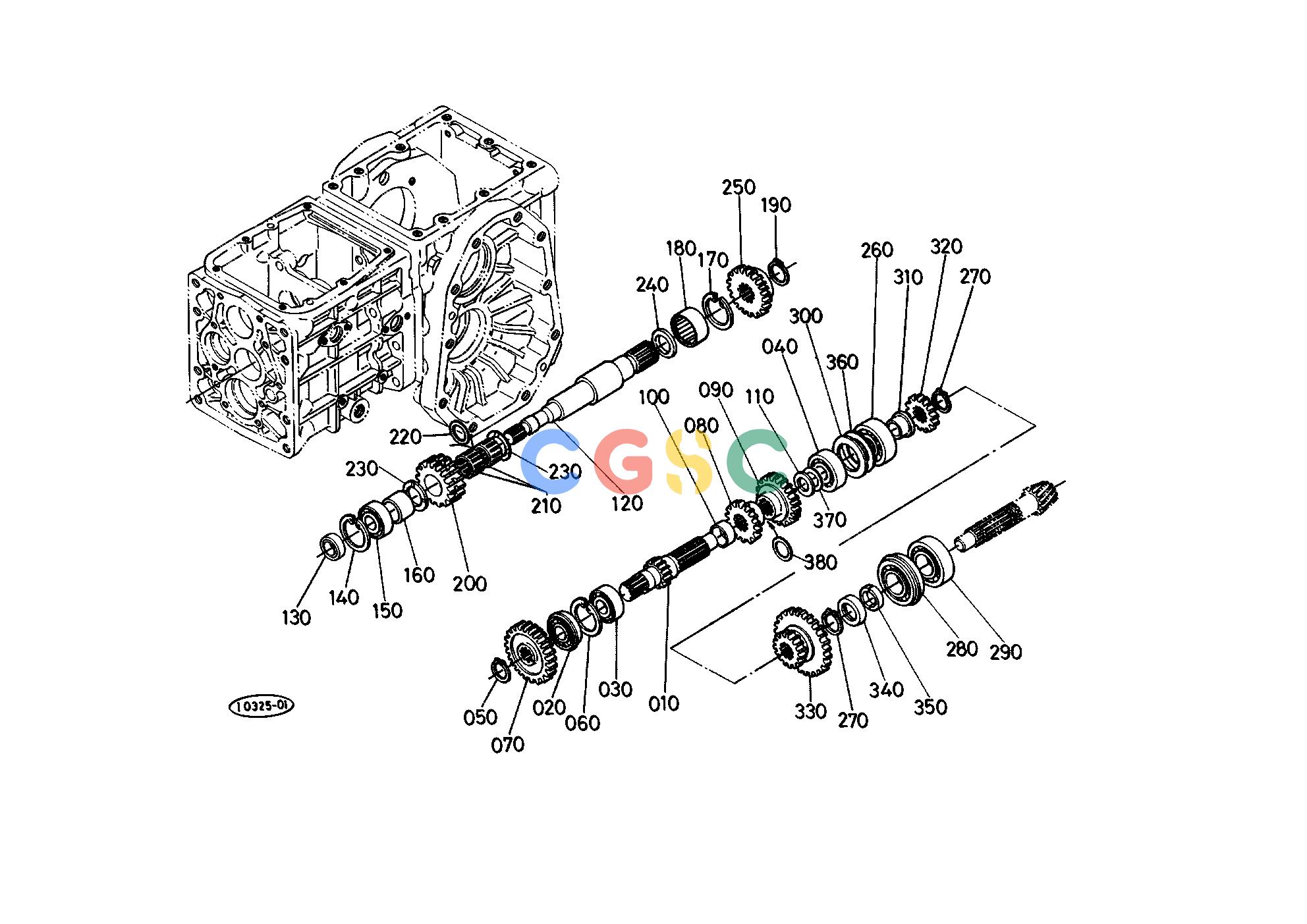

久保田零件查询T05400 2ND SHAFT REVERSE SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
395 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6662114312
|
[1] |
SHAFT
|
0.6600(lbs); 0.300
|
| 020. |
0815106203
|
[1] |
BEARING BALL
|
0.1540(lbs); 0.070
|
| 030. |
0810106203
|
[1] |
BEARING BALL
|
0.1386(lbs); 0.063
|
| 040. |
0810106302
|
[1] |
BEARING BALL
|
0.1848(lbs); 0.084
|
| 050. |
0461200160
|
[1] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 060. |
0461100400
|
[1] |
CIR-CLIP INTERNAL
|
0.0088(lbs); 0.004
|
| 070. |
6700114320
|
[1] |
GEAR
|
0.6160(lbs); 0.280
|
| 070. |
6700114310
|
[1] |
GEAR
|
0.5720(lbs); 0.260
|
| 080. |
6700114330
|
[1] |
GEAR
|
0.3080(lbs); 0.140
|
| 090. |
6700114340
|
[1] |
GEAR
|
0.4136(lbs); 0.188
|
| 100. |
6662114360
|
[1] |
COLLAR
|
0.0088(lbs); 0.004
|
| 110. |
6662114350
|
[1] |
SPACER
|
0.0044(lbs); 0.002
|
| 120. |
6662114610
|
[1] |
SHAFT REVERSE
|
1.1924(lbs); 0.542
|
| 130. |
0950017308
|
[1] |
SEAL OIL
|
0.0198(lbs); 0.009
|
| 140. |
0461100400
|
[1] |
CIR-CLIP INTERNAL
|
0.0088(lbs); 0.004
|
| 150. |
0810106203
|
[1] |
BEARING BALL
|
0.1386(lbs); 0.063
|
| 160. |
6681114670
|
[1] |
COLLAR BACK SHAFT
|
0.0858(lbs); 0.039
|
| 170. |
0461100300
|
[1] |
CIR-CLIP INTERNAL
|
0.0088(lbs); 0.004
|
| 180. |
0885203015
|
[1] |
BEARING NEEDLE
|
0.0814(lbs); 0.037
|
| 190. |
0461200190
|
[1] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 200. |
6662114622
|
[1] |
GEAR
|
0.4884(lbs); 0.222
|
| 210. |
0882202410
|
[2] |
BEARING NEEDLE
|
0.0330(lbs); 0.015
|
| 220. |
6662114660
|
[1] |
COLLAR
|
0.0088(lbs); 0.004
|
| 230. |
6223114770
|
[2] |
COLLAR
|
0.0022(lbs); 0.001
|
| 240. |
6662114640
|
[1] |
COLLAR
|
0.0132(lbs); 0.006
|
| 250. |
6640414650
|
[1] |
GEAR
|
0.3960(lbs); 0.180
|
| 260. |
0821107204
|
[1] |
BEARING BALL
|
0.2310(lbs); 0.105
|
| 270. |
0461200190
|
[2] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 280. |
0815106304
|
[1] |
BEARING BALL
|
0.3256(lbs); 0.148
|
| 290. |
0810106304
|
[1] |
BEARING BALL
|
0.3212(lbs); 0.146
|
| 300. |
6659114720
|
[1] |
SPACER
|
0.0044(lbs); 0.002
|
| 310. |
6659114733
|
[1] |
BUSH
|
0.0440(lbs); 0.020
|
| 320. |
6640414840
|
[1] |
GEAR
|
0.1298(lbs); 0.059
|
| 330. |
6662114850
|
[1] |
GEAR
|
0.7788(lbs); 0.354
|
| 340. |
6662114860
|
[1] |
COLLAR
|
0.0308(lbs); 0.014
|
| 350. |
6659114770
|
[2] |
COLLAR STOP
|
0.0066(lbs); 0.003
|
| 360. |
6661114670
|
[1] |
SHIM
|
0.0176(lbs); 0.008
|
| 360. |
6661114680
|
[1] |
SHIM
|
0.0220(lbs); 0.010
|
| 360. |
6661114690
|
[1] |
SHIM
|
0.0022(lbs); 0.001
|
| 370. |
6662114370
|
[1] |
SHIM
|
0.0022(lbs); 0.001
|
| 370. |
6662114380
|
[1] |
SHIM
|
0.0022(lbs); 0.001
|
| 380. |
6659156910
|
[1] |
SHIM
|
0.0022(lbs); 0.001
|
| 380. |
6659156920
|
[1] |
SHIM
|
0.0022(lbs); 0.001
|
