神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (08-017) - SPRING ASSY, TRACK, P/N 24100N1102F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
114 次

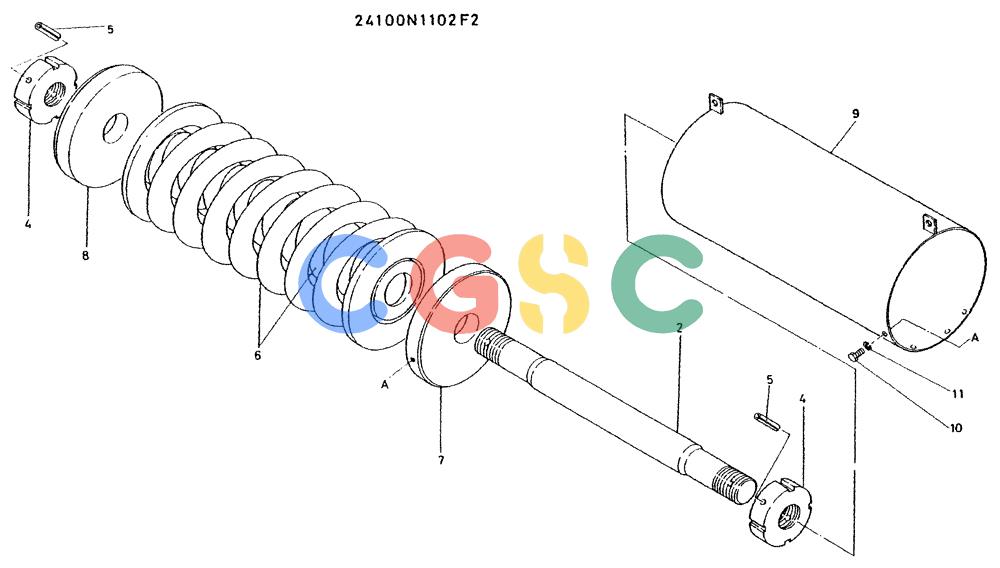

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N1102F2 | [1] | SPRING ASSY, TRACK CONSISTS OF REF 2 TO 11 | SPRING ASSY, TRACK CONSISTS OF REF 2 TO 11 |
| 2. | 2420P1009 | [1] | ROD | |
| 4. | 2420T2974 | [2] | NUT | |
| 5. | ZP26D08063 | [2] | ROLL PIN | KOB |
| 6. | 2417N101D2 | [1] | SPRING | |
| 7. | 2418T6575 | [1] | PLATE | |
| 8. | 2418T6576 | [1] | PLATE | |
| 9. | 2414P1961 | [1] | COVER | |
| 10. | ZS12C12020 | [4] | SCREW,Hex, M12 x 20mm | KOBM12x1.75x20mm Superseded by part number: ZS18C12020 |
| 11. | ZW11X12000 | [4] | WASHER | KOBID 12 x OD 24 x Th 2.3mm Superseded by part number: ZW16X12000 |
