神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (08-019) - CYLINDER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
757 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

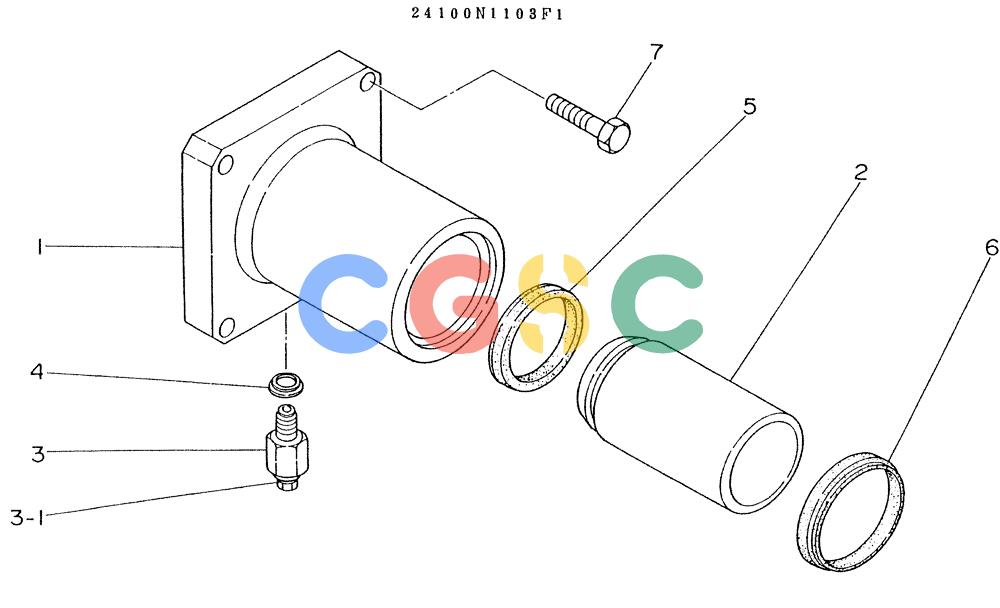

| . . | 24100N1103F1 | [1] | CYLINDER ASSY, CONSISTS OF REF 1 TO 7 | |
| 1. | 2438P110 | [1] | CYLINDER | |
| 2. | 2439P121 | [1] | PISTON | |
| 3. | B91P0054 | [1] | ADAPTER | KOBGREASE, CONSIST OF REF 3-1 TO 3-1 |
| 3-1. | R45T0004D4 | [1] | WASHER | KOB |
| 4. | R45T0004D8 | [1] | SEAL | KOB |
| 5. | R45T0003D4 | [1] | PACKING | KOBID 105 x OD 125 x Th 16mm |
| 6. | R45T0009D4 | [1] | SEAL | KOB |
| 7. | ZS12C20080 | [4] | SCREW,Hex, M20 x 80mm | KOBM20x2.50x80mm |
