纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR ASN YT06-18001 (04-001[00]) - TOOL & ACCESSORY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
688 次

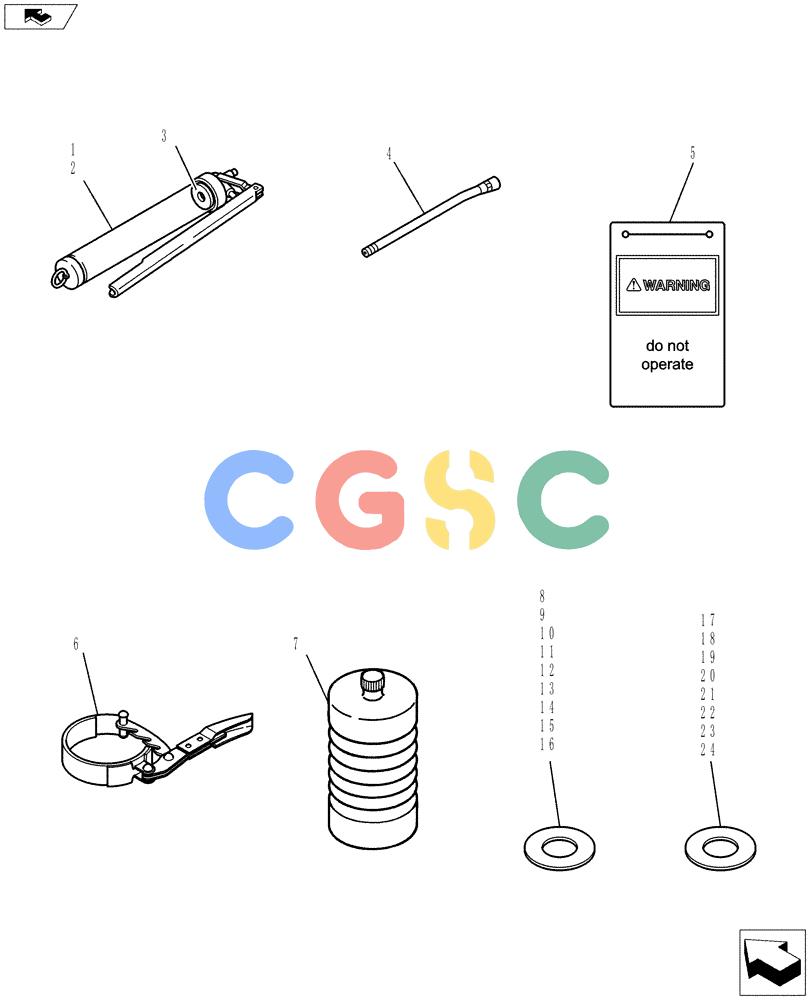

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT01T00013F3 | [1] | TOOL | KOBAccessory |
| 1. | YT01T01007F1 | [1] | GREASE GUN | KOB Superseded by part number: YT01T01009F1 |
| 2. | 2421R145 | [1] | GREASE GUN | KOB Superseded by part number: YT01T01009F1 |
| 3. | PW01T01008P1 | [1] | SEAL | KOB |
| 4. | 2421R140 | [1] | NOZZLE | KOB |
| 5. | YN20T01320P1 | [1] | LABEL | KOB |
| 6. | YW01T01014P1 | [1] | ADJUSTING WRENCH | KOB |
| 7. | 2421Z183 | [1] | GREASE | KOBCartridge |
| 8. | B16T0442D54 | [7] | SHIM,52mm ID x 80mm OD x 0.5mm Thk | KOB |
| 9. | B16T0442D41 | [7] | SHIM,80mm OD x 52mm ID x 0.9mm Thk | KOB |
| 10. | B16T0442D25 | [7] | SHIM,80mm OD x 52mm ID x 1.2mm Thk | KOB |
| 11. | B16T0442D23 | [1] | SHIM,80mm OD x 52mm ID x 1.6mm Thk | KOB(1.6) |
| 12. | YR12B01028P1 | [8] | SHIM | KOB(2.0) |
| 13. | YT02B01008D1 | [1] | SHIM | KOB(0.5) |
| 14. | B16T0442D93 | [1] | SHIM,120mm OD x 72mm ID x 0.9mm Thk | KOB(0.9) |
| 15. | YT02B01008D2 | [1] | SHIM | KOB(1.2) |
| 16. | YR02B01262P1 | [2] | SHIM | KOB(2.0) |
| 17. | B16T0442D82 | [1] | SHIM,120mm OD x 77mm ID x 0.5mm Thk | KOB(0.5) |
| 18. | B16T0442D81 | [1] | SHIM,120mm OD x 77mm ID x 0.9mm Thk | KOB(0.9) |
| 19. | B16T0442D80 | [1] | SHIM,120mm OD x 77mm ID x 1.2mm Thk | KOB(1.2) |
| 20. | YR02B01261P1 | [2] | SHIM,2mm Thk | KOB(2.0) |
| 21. | YR02B01266D3 | [2] | SHIM | KOB(0.5) |
| 22. | YR02B01266D1 | [2] | SHIM | KOB(0.9) |
| 23. | YR02B01266D2 | [2] | SHIM | KOB(1.2) |
| 24. | YR02B01265P1 | [2] | SHIM | KOB(2.0) |
