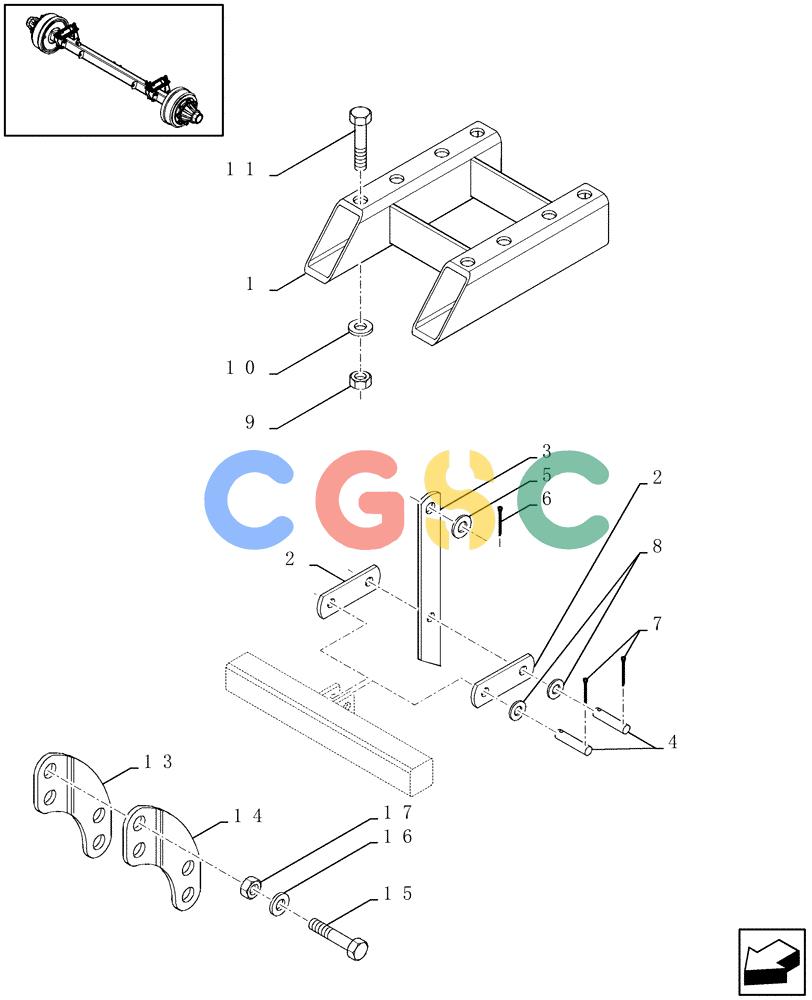

凯斯零件查询(LBX331S) - BIG RECTANGULAR BALER (6/01-12/03) (05.14[01]) - AXLE, FIXING PARTS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
771 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84078606
|
[2] |
SUPPORT
|
ZED
|
| 2. |
84068050
|
[4] |
PLATE
|
ZED
Superseded by part number: 87389143, 87389143, 87389145, 87389143, 87389145, 87389147
|
| 3. |
84068048
|
[2] |
PLATE
|
ZED
Superseded by part number: 87389143, 87389143, 87389145, 87389143, 87389145, 87389147
|
| 3. |
84068692
|
[2] |
PLATE
|
ZED
Superseded by part number: 87389143, 87389143, 87389145, 87389143, 87389145, 87389147
|
| 4. |
89503184
|
[4] |
CLEVIS PIN
|
ZED
Superseded by part number: 87021826
|
| 5. |
80140104
|
[2] |
WASHER
|
ZED
Superseded by part number: 140104
|
| 6. |
80300595
|
[2] |
COTTER PIN
|
ZED
Superseded by part number: 10733901
|
| 7. |
80130007
|
[4] |
COTTER PIN
|
ZED
Superseded by part number: 83903970
|
| 8. |
80378246
|
[4] |
WASHER
|
ZED
16MM Superseded by part number: 378246
|
| 9. |
89706694
|
[1] |
NUT,M20, Cl 8
|
ZED
Superseded by part number: 9706694
|
| 10. |
80322359
|
[1] |
LOCK WASHER
|
ZED
20MM Superseded by part number: 322359
|
| 11. |
89838134
|
[1] |
SCREW
|
ZED
M20x50 Superseded by part number: 9847023
|
| 12. |
80384197
|
[1] |
SCREW
|
ZED
M20x150 Superseded by part number: 384197
|
| 13. |
84807813
|
[2] |
PLATE
|
ZED
|
| 14. |
84807811
|
[2] |
PLATE
|
ZED
|
| 15. |
80280264
|
[4] |
SCREW
|
ZED
M14x50 Superseded by part number: 280264
|
| 16. |
80140069
|
[4] |
WASHER
|
ZED
Superseded by part number: 140069
|
| 17. |
80412370
|
[4] |
LOCK NUT
|
ZED
M14 Superseded by part number: 412370
|
