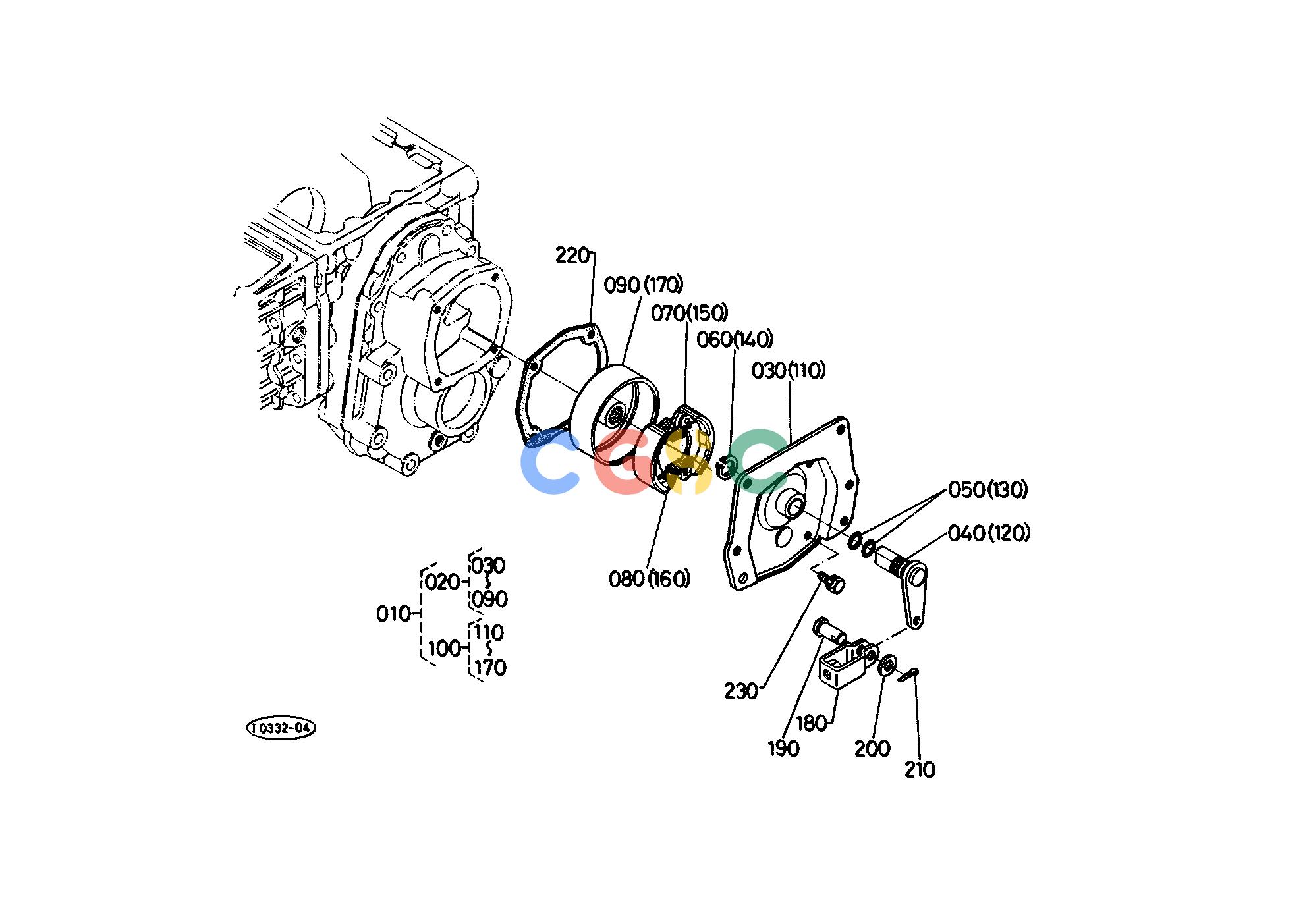

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6700122100
|
[1] |
ASSY BRAKE
|
0.0000(lbs); 0.000
|
| 020. |
6700122200
|
[1] |
ASSY BRAKE LH
|
4.8400(lbs); 2.200
|
| 030. |
6700122310
|
[1] |
COVER BRAKE LH
|
1.6500(lbs); 0.750
|
| 040. |
6662122320
|
[1] |
CAM BRAKE LH
|
0.4510(lbs); 0.205
|
| 050. |
0481105170
|
[2] |
RING
|
0.0022(lbs); 0.001
|
| 060. |
0461200200
|
[1] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 070. |
6661188800
|
[2] |
SHOE BRAKE
|
0.0000(lbs); 0.000
|
| 080. |
6659122350
|
[2] |
SPRING RETURN
|
0.0066(lbs); 0.003
|
| 090. |
6681122360
|
[1] |
DRUM BRAKE
|
1.9800(lbs); 0.900
|
| 100. |
6700122400
|
[1] |
ASSY BRAKE RH
|
4.8400(lbs); 2.200
|
| 110. |
6700122410
|
[1] |
COVER BRAKE RH
|
1.6500(lbs); 0.750
|
| 120. |
6662122420
|
[1] |
CAM BRAKE RH
|
0.4400(lbs); 0.200
|
| 130. |
0481105170
|
[2] |
RING
|
0.0022(lbs); 0.001
|
| 140. |
0461200200
|
[1] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 150. |
6661188800
|
[2] |
SHOE BRAKE
|
0.0000(lbs); 0.000
|
| 160. |
6659122350
|
[2] |
SPRING RETURN
|
0.0066(lbs); 0.003
|
| 170. |
6681122360
|
[1] |
DRUM BRAKE
|
1.9800(lbs); 0.900
|
| 180. |
6375342350
|
[2] |
YOKE
|
0.0770(lbs); 0.035
|
| 190. |
0512250820
|
[2] |
PIN JOINT
|
0.0198(lbs); 0.009
|
| 200. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 210. |
0551150215
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 220. |
6662122380
|
[2] |
GASKET
|
0.0000(lbs); 0.000
|
| 230. |
0112350822
|
[8] |
BOLT
|
0.0264(lbs); 0.012
|
