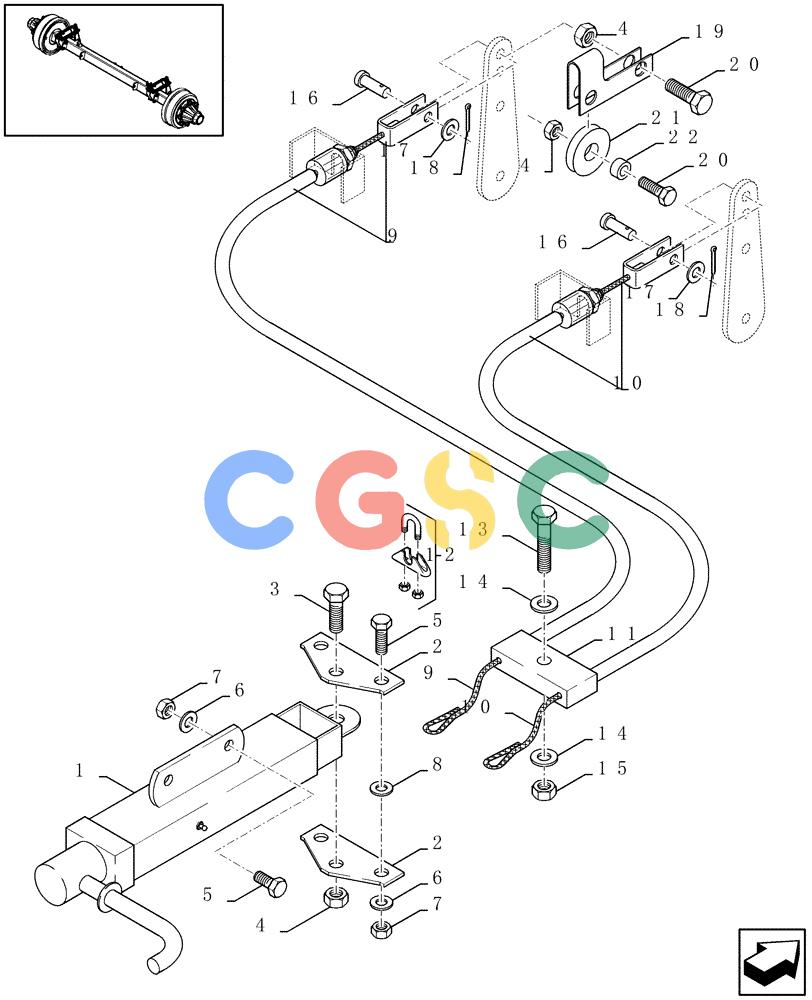

凯斯零件查询(LBX331S) - BIG RECTANGULAR BALER (6/01-12/03) (05.20[01]) - PARKING BRAKES - TANDEM AXLE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
215 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84078617
|
[1] |
LEVER
|
ZED
Superseded by part number: 84274758
|
| 2. |
84078394
|
[2] |
SUPPORT
|
ZED
|
| 3. |
89706687
|
[1] |
SCREW
|
ZED
M12x30 Superseded by part number: 9706687
|
| 4. |
80100038
|
[1] |
NUT
|
ZED
M12 Superseded by part number: 100038
|
| 5. |
80043139
|
[4] |
BOLT,M10 x 25mm
|
ZED
Superseded by part number: 11106231
|
| 6. |
80140045
|
[4] |
WASHER
|
ZED
10MM Superseded by part number: 140045
|
| 7. |
100016
|
[4] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 8. |
80748797
|
[2] |
RING
|
ZED
Superseded by part number: 748797
|
| 9. |
84429162
|
[1] |
CABLE
|
ZED
LH Superseded by part number: 84227383
|
| 10. |
84429163
|
[1] |
CABLE
|
ZED
RH
|
| 11. |
84078393
|
[1] |
SUPPORT
|
ZED
|
| 12. |
84607247
|
[2] |
WIRE CLAMP
|
ZED
|
| 13. |
89706702
|
[1] |
SCREW
|
ZED
M12x50 Superseded by part number: 9706702
|
| 14. |
80140046
|
[2] |
WASHER
|
ZED
12MM Superseded by part number: 140046
|
| 15. |
89706685
|
[1] |
NUT
|
ZED
M12 Superseded by part number: 9706685
|
| 16. |
80322901
|
[2] |
PIN
|
ZED
D=10mm Superseded by part number: 322901
|
| 17. |
86511323
|
[2] |
WASHER,10.5mm ID x 20mm OD x 2mm Thk
|
NH
Superseded by part number: 14496621
|
| 18. |
80130003
|
[2] |
COTTER PIN
|
ZED
Superseded by part number: 130003
|
| 19. |
84429166
|
[2] |
BRACKET
|
ZED
|
| 20. |
80043154
|
[4] |
BOLT
|
ZED
Superseded by part number: 86629541
|
| 21. |
84078395
|
[2] |
ROLLER,60mm OD x 11.5mm L
|
ZED
|
| 22. |
89838358
|
[2] |
RING
|
ZED
Superseded by part number: 9838358
|
