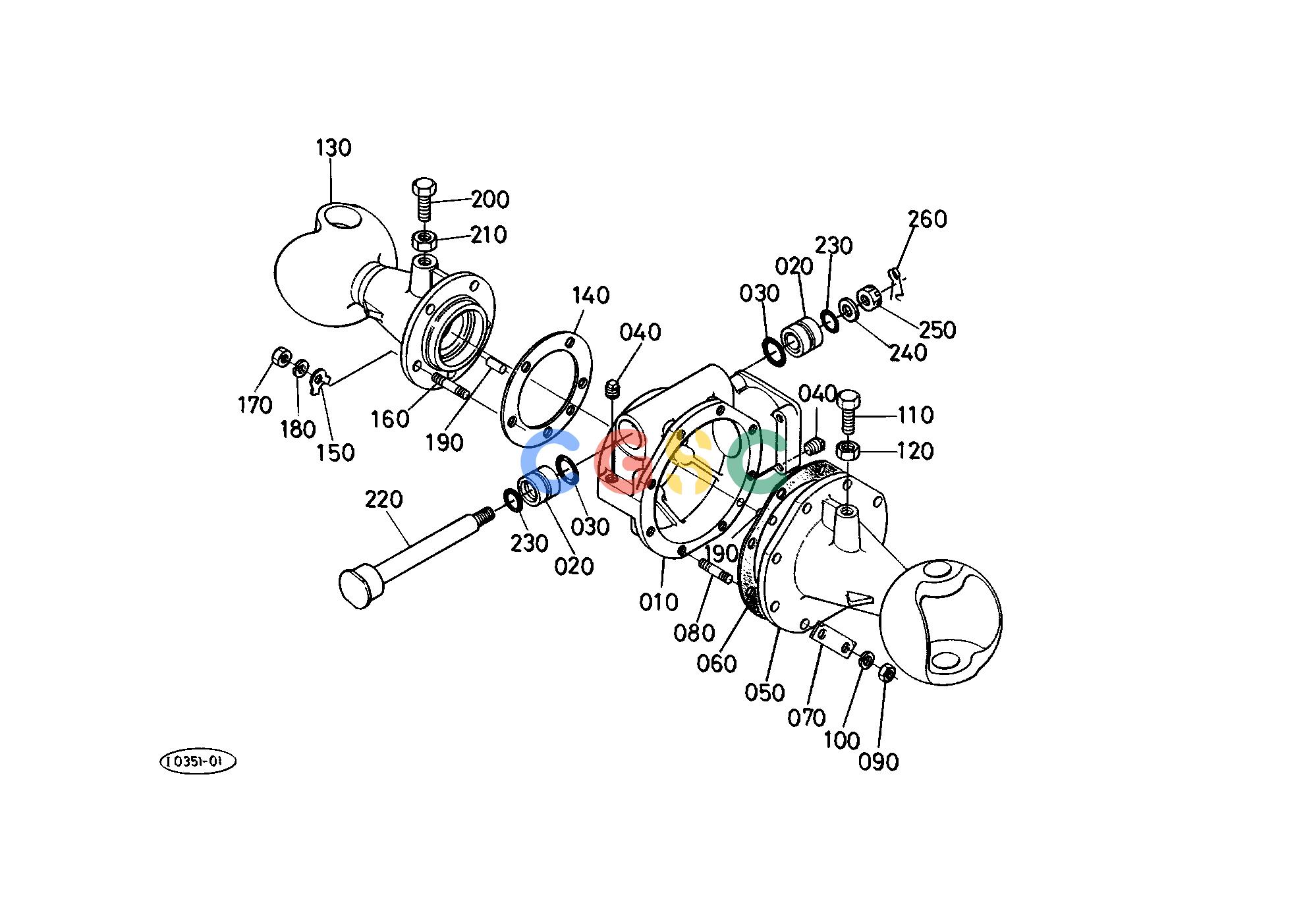

久保田零件查询T07000 FRONT AXLE CASE FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
1008 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6681156110
|
[1] |
CASE FRONT BEVEL
|
10.4280(lbs); 4.740
|
| 020. |
6659156120
|
[2] |
BUSH
|
0.1628(lbs); 0.074
|
| 030. |
0481150250
|
[2] |
RING
|
0.0022(lbs); 0.001
|
| 040. |
0631210020
|
[2] |
PLUG
|
0.0352(lbs); 0.016
|
| 050. |
6681156210
|
[1] |
CASE FRONT AXLE LH
|
12.9800(lbs); 5.900
|
| 060. |
6662156220
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 070. |
6681156620
|
[4] |
WASHER LOCK
|
0.0220(lbs); 0.010
|
| 080. |
0151850820
|
[8] |
STUD
|
0.0264(lbs); 0.012
|
| 090. |
0211450080
|
[8] |
NUT
|
0.0110(lbs); 0.005
|
| 100. |
0451250100
|
[8] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 110. |
6659156282
|
[1] |
BOLT
|
0.0880(lbs); 0.040
|
| 120. |
0211250120
|
[1] |
NUT
|
0.0154(lbs); 0.007
|
| 130. |
6681156310
|
[1] |
CASE FRONT AXLE RH
|
11.0000(lbs); 5.000
|
| 140. |
6662156320
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 150. |
6661156610
|
[5] |
WASHER
|
0.0066(lbs); 0.003
|
| 160. |
0155551022
|
[5] |
STUD
|
0.0462(lbs); 0.021
|
| 170. |
0217650100
|
[5] |
NUT
|
0.0110(lbs); 0.005
|
| 180. |
0451250100
|
[5] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 190. |
0501201018
|
[2] |
PIN STRAIGHT
|
0.0264(lbs); 0.012
|
| 200. |
6740156280
|
[1] |
BOLT
|
0.0770(lbs); 0.035
|
| 210. |
0211250120
|
[1] |
NUT
|
0.0154(lbs); 0.007
|
| 220. |
6662157152
|
[1] |
PIN CENTER
|
1.1440(lbs); 0.520
|
| 230. |
0481140140
|
[2] |
RING
|
0.0022(lbs); 0.001
|
| 240. |
0401150180
|
[1] |
WASHER PLAIN
|
0.0264(lbs); 0.012
|
| 250. |
0237250180
|
[1] |
NUT
|
0.0418(lbs); 0.019
|
| 260. |
6661157150
|
[1] |
SPRING SET
|
0.0440(lbs); 0.020
|
