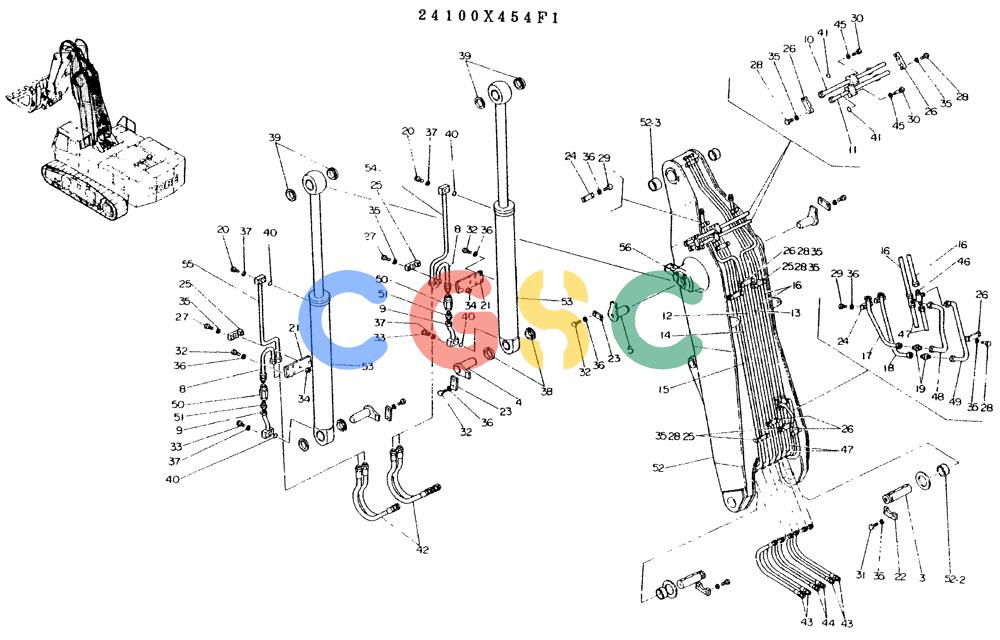

神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (09-001) - BOOM ASSY, P/N 24100X454F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
845 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100X454F1 | [1] | BOOM ASSY, CONSISTS OF REF 3 TO 56 | |
| 1. | B19T0031 | [2] | PIN | PIN |
| 3. | 2419T1663 | [2] | PIN | PIN |
| 5. | B19T0058 | [2] | PIN | PIN |
| 8. | 2418P3903 | [2] | TUBE | TUBE |
| 9. | 2418P3904 | [2] | TUBE | TUBE |
| 10. | 2418P2938 | [1] | TUBE | |
| 11. | 2418P2939 | [1] | TUBE | |
| 12. | 2418N749D2 | [1] | TUBE | |
| 13. | 2418N749D1 | [1] | TUBE | |
| 14. | 2418N751 | [1] | TUBE | |
| 15. | 2418N750 | [1] | TUBE | |
| 16. | 2418N752 | [2] | TUBE | |
| 17. | 2418P2937 | [1] | TUBE | |
| 18. | 2418P2936 | [1] | TUBE | |
| 19. | ZF23B28000 | [2] | HYD CONNECTOR | KOB Superseded by part number: 47641651 |
| 20. | ZS23C14080 | [8] | SCREW,Hex Socket Head, M14 x 80mm | HITM14x2.0x80mm |
| 21. | 2418T4244 | [2] | PLATE | PLATE |
| 22. | 2418T4060 | [2] | PLATE | PLATE |
| 23. | B16T0006 | [4] | PLATE | PLATE |
| 24. | R16P0035D5 | [4] | CLAMP | |
| 25. | R16P0027D4 | [8] | CLAMP | KOB |
| 26. | R16P0027D3 | [5] | CLAMP | |
| 27. | ZS12C16080 | [4] | CAPSCREW M16x2.0x80mm | CAPSCREW M16x2.0x80mm |
| 28. | ZS12C16070 | [22] | SCREW,Hex, M16 x 70mm | KOBM16x2.0x70mm |
| 29. | ZS12C12060 | [8] | SCREW,Hex, M12 x 60mm | KOBM12x1.75x60mm Superseded by part number: ZS18C12060 |
| 30. | ZS23C12065 | [8] | SCREW,Hex Socket Head, M12 x 65mm | KOBM12x1.75x60mm |
| 31. | ZS12C16035 | [4] | CAPSCREW M16x2.0x35mm | CAPSCREW M16x2.0x35mm |
| 32. | ZS12C12030 | [16] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm Superseded by part number: ZS18C12030 |
| 33. | R20T0033D3 | [8] | CAPSCREW | |
| 31. | ZN12C16013 | [4] | NUT | KOBM16x2.0mm |
| 35. | ZW22X16000 | [30] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 36. | ZW22X12000 | [24] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 37. | ZW22X14000 | [16] | LOCK WASHER | KOBID 14 x OD 24.5 x Th 3.5mm Superseded by part number: ZW26X14000 |
| 38. | R16T0227D2 | [4] | SPACER | SPACER |
| 39. | R16T022703 | [4] | SPACER | |
| 40. | ZD12P03800 | [4] | O-RING | KOBID 37.70 ± 0.37 x OD 44.7mm |
| 41. | ZD12P03400 | [2] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 42. | 2444R488D5 | [4] | HOSE | HOSE |
| 43. | 2444R488D8 | [4] | HOSE | |
| 44. | ZX26N12120 | [2] | FLEXIBLE HOSE | KOB |
| 45. | ZW22K12000 | [8] | LOCK WASHER | KOBID 12.2 x OD 17.8 x Th 2.5mm |
| 46. | 2444Z1773 | [2] | TEE | |
| 47. | 2418P3865 | [2] | TUBE | |
| 48. | 2418P3866 | [1] | TUBE | |
| 49. | 2418N976 | [1] | TUBE | |
| 50. | 2436R287 | [2] | HYDRAULIC VALVE | KOB |
| 51. | ZF23E35020 | [4] | HYD CONNECTOR | KOB |
| 52. | 2411X417F1 | [1] | BOOM ASSY, INCLUDE 52-2 & | |
| 52-2. | 2405T607 | [2] | BUSHING | BUSHING |
| 52-3. | B05T0024D2 | [2] | BUSHING | BUSHING |
| 53. | 2438U292F1 | [2] | CYLINDER | |
| 54. | 2418N747D1 | [1] | TUBE | |
| 55. | 2418N747D2 | [1] | TUBE | TUBE |
| 56. | B16T0122 | [2] | BRACKET | |
