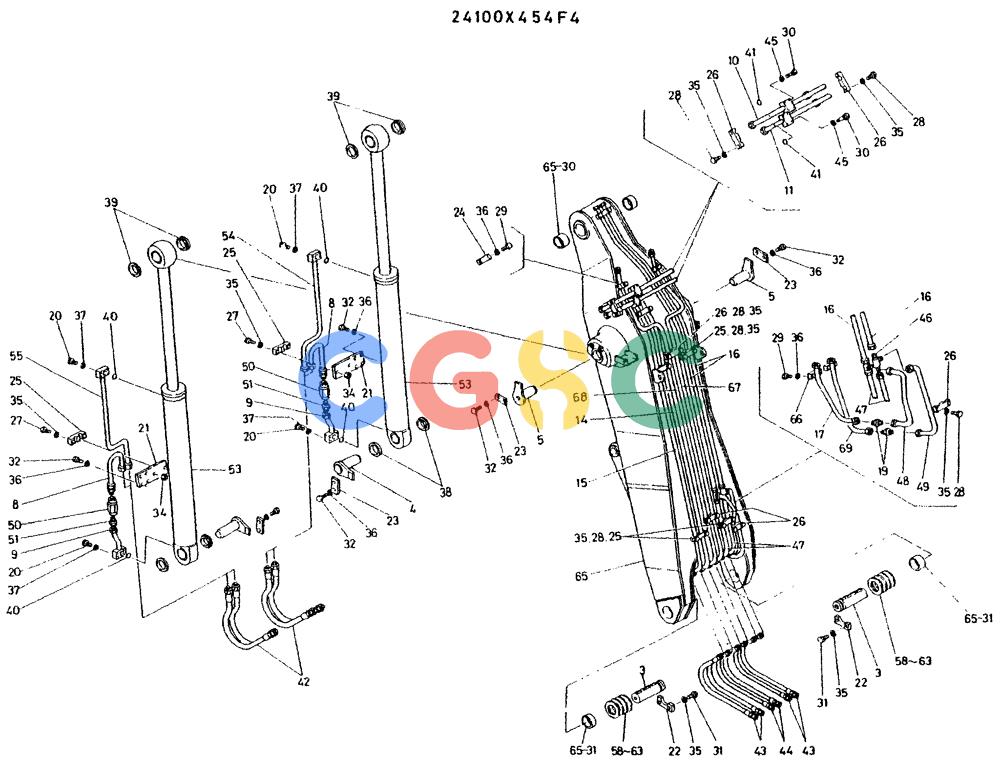

| . . | 24100X454F4 | [1] | BOOM ASSY, CONSISTS OF REF 3 TO 69 | |
| 3. | 2419T1663 | [2] | PIN | PIN |
| 4. | B19T0031 | [2] | PIN | PIN |
| 5. | B19T0058 | [2] | PIN | PIN |
| 8. | 2418P3903 | [2] | TUBE | TUBE |
| 9. | 2418P3904 | [2] | TUBE | TUBE |
| 10. | 2418P2938 | [1] | TUBE | |
| 11. | 2418P2939 | [1] | TUBE | |
| 14. | 2418N751 | [1] | TUBE | |
| 15. | 2418N750 | [1] | TUBE | |
| 16. | 2418N752 | [2] | TUBE | |
| 17. | 2418P2937 | [1] | TUBE | |
| 19. | ZF23B28000 | [2] | HYD CONNECTOR | KOB Superseded by part number: 47641651 |
| 20. | ZS23C14075 | [16] | CAPSCREW,Hex Socket Head, M14 x 75mm | KOBSCREW M14x2.0x75mm |
| 21. | 2418T4244 | [2] | PLATE | PLATE |
| 22. | 2418T4060 | [2] | PLATE | PLATE |
| 23. | B16T0006 | [4] | PLATE | PLATE |
| 24. | R16P0035D5 | [2] | CLAMP | |
| 25. | R16P0027D4 | [8] | CLAMP | KOB |
| 26. | R16P0027D3 | [5] | CLAMP | |
| 27. | ZS12C16080 | [4] | CAPSCREW M16x2.0x80mm | CAPSCREW M16x2.0x80mm |
| 28. | ZS12C16070 | [22] | SCREW,Hex, M16 x 70mm | KOBM16x2.0x70mm |
| 29. | ZS12C12060 | [6] | SCREW,Hex, M12 x 60mm | KOBM12x1.75x60mm Superseded by part number: ZS18C12060 |
| 30. | ZS23C12065 | [8] | SCREW,Hex Socket Head, M12 x 65mm | KOBM12x1.75x60mm |
| 31. | ZS12C16035 | [4] | CAPSCREW M16x2.0x35mm | CAPSCREW M16x2.0x35mm |
| 32. | ZS12C12030 | [16] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm Superseded by part number: ZS18C12030 |
| 34. | ZN12C16013 | [4] | NUT | KOBM16x2.0mm |
| 35. | ZW22X16000 | [30] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 36. | ZW22X12000 | [22] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 37. | ZW22X14000 | [16] | LOCK WASHER | KOBID 14 x OD 24.5 x Th 3.5mm Superseded by part number: ZW26X14000 |
| 38. | R16T0227D2 | [4] | SPACER | SPACER |
| 39. | R16T0227D3 | [4] | SPACER | KOB |
| 40. | ZD12P03800 | [4] | O-RING | KOBID 37.70 ± 0.37 x OD 44.7mm |
| 41. | ZD12P03400 | [2] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 42. | ZX58N16120 | [4] | HOSE | KOB1200mm Long (47-1/4in) |
| 43. | ZX28N16120 | [4] | HOSE | KOB Superseded by part number: ZX58N16120 |
| 44. | ZX28N12120 | [2] | HOSE | HOSE |
| 45. | ZW22K12000 | [8] | LOCK WASHER | KOBID 12.2 x OD 17.8 x Th 2.5mm |
| 46. | 2444Z1773 | [2] | TEE | |
| 47. | 2418P3865 | [2] | TUBE | |
| 48. | 2418P3866 | [1] | TUBE | |
| 49. | 2418N976 | [1] | TUBE | |
| 50. | 2436R287 | [2] | HYDRAULIC VALVE | KOB |
| 51. | ZF23F35020 | [4] | HYD CONNECTOR | KOB |
| 53. | 2438U360F2 | [2] | CYLINDER | |
| 54. | 2418N1039D1 | [1] | TUBE | TUBE |
| 55. | 2418N1039D2 | [1] | TUBE | TUBE |
| 57. | 24100X471F1 | [1] | LUB ASSY | |
| 58. | 2420T2571D3 | [2] | SHIM,123mm ID x 180mm OD x 1.2mm Thk | KOBID 123 x OD 180 x Th 1.2mm |
| 59. | 2420T2571D4 | [2] | SHIM,123mm ID x 180mm OD x 1.6mm Thk | KOBID 123 x OD 180 x Th 1.6mm |
| 60. | 2420T2571D5 | [2] | SHIM,123mm ID x 180mm OD x 2.3mm Thk | KOBID 123 x OD 180 x Th 2.3mm |
| 61. | 2420T2571D6 | [2] | SHIM,123mm ID x 180mm OD x 3.2mm Thk | KOB |
| 62. | 2420T2571D7 | [2] | SHIM | SHIM |
| 63. | 2420T2571D8 | [2] | SHIM, 6.0 | SHIM, 6.0 |
| 65. | 2411X615F1 | [1] | BOOM, INCLUUDE 65-30 TP 65-31 | |
| 65-30. | B05T0024D2 | [2] | BUSHING | BUSHING |
| 65-31. | 2405T607 | [2] | BUSHING | BUSHING |
| 66. | ZC27X28012 | [2] | CLAMP | KOB Superseded by part number: YN43H01097P1 |
| 67. | 2418N1593D1 | [1] | TUBE | |
| 68. | 2418N1593D2 | [1] | TUBE | |
| 69. | 2418P6463 | [1] | TUBE | |
