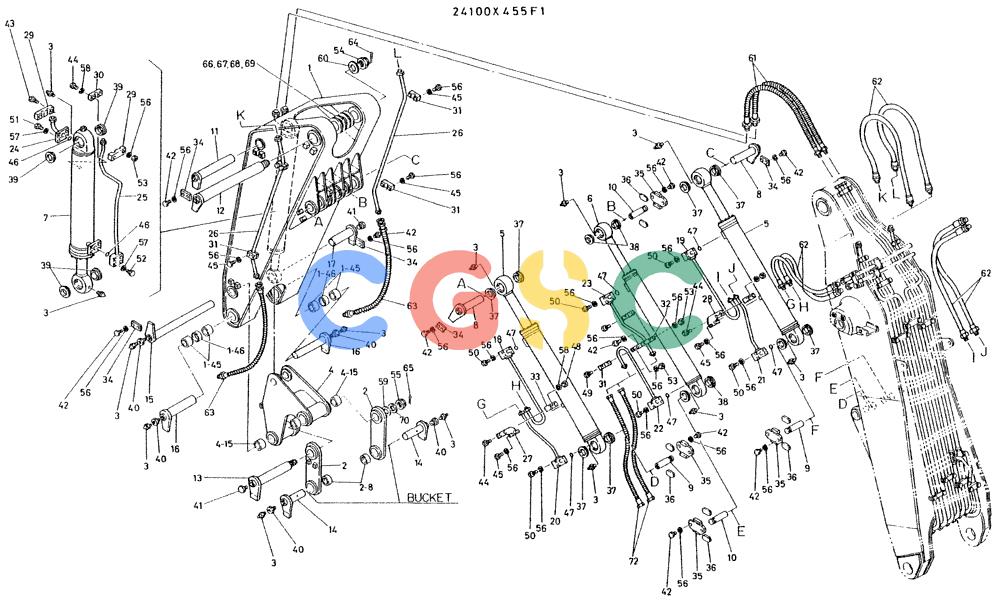

神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (09-006) - ARM ASSY, P/N 24100X455F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
770 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100X455F1 | [1] | ARM ASSY, CONSISTS OF REF 1 TO 72 | |
| 1. | 2411X418F1 | [1] | ARM ,INCLUDE REF 1-45 & 1-46 | |
| 1-45. | B05T0013 | [4] | BUSHING | BUSHING |
| 1-46. | R16T0006D2 | [2] | SPACER | SPACER |
| 2. | 2406N387F1 | [2] | LINK | |
| 2-8. | B05T0004 | [1] | BUSHING | BUSHING |
| 3. | 44Z1D10 | [13] | FITTING | KOB |
| 4. | B06K0017F1 | [1] | LINK, GUIDE INCLUDE REF 4-15 | |
| 4-15. | B05T0013 | [4] | BUSHING | BUSHING |
| 5. | B38K0031F1 | [2] | CYLINDER | |
| 6. | B38K0041F1 | [1] | CYLINDER | |
| 7. | B3BK0032F1 | [1] | CYLINDER | |
| 8. | B19T0033D2 | [2] | PIN | |
| 9. | B19T0172 | [2] | PIN | |
| 10. | B19T0174 | [2] | PIN | |
| 11. | 619T0047 | [1] | PIN | |
| 12. | B19T0110 | [1] | PIN | |
| 13. | B19T0054 | [1] | PIN | |
| 14. | B19P0002 | [2] | PIN | |
| 15. | B19T0108 | [1] | PIN | |
| 16. | B19T0109 | [2] | PIN | PIN |
| 17. | B19T0031 | [1] | PIN | PIN |
| 18. | 2418P2943D2 | [1] | TUBE | |
| 19. | 2418P2943D1 | [1] | TUBE | |
| 20. | 2418P2942D2 | [1] | TUBE | |
| 21. | 2418P2942D1 | [1] | TUBE | |
| 22. | B18P0483 | [1] | LINES, TUBE | |
| 23. | B18P0484 | [1] | LINES, TUBE | |
| 24. | 2418P2940 | [1] | TUBE | |
| 25. | 2418N748 | [1] | TUBE | |
| 26. | 2418P2941 | [2] | TUBE | |
| 27. | 2416T3217D1 | [1] | BRACKET | |
| 28. | 2416T3217D2 | [1] | BRACKET | |
| 29. | R16T0250 | [2] | CLAMP | |
| 30. | R16P0035D3 | [1] | CLAMP | KOB |
| 31. | R16P0035D5 | [6] | CLAMP | |
| 32. | B16T0517 | [1] | PLATE | |
| 33. | R16P0027D3 | [2] | CLAMP | |
| 34. | B16T0006 | [5] | PLATE | PLATE |
| 35. | B16T0524 | [4] | PLATE | |
| 36. | B16T0525 | [8] | PLATE | |
| 37. | R16T0227D1 | [8] | SPACER | |
| 38. | R16T0399 | [4] | SPACER | |
| 39. | R16T0227D2 | [4] | SPACER | SPACER |
| 40. | R20T0125 | [5] | PLUG | KOB |
| 41. | R20T0124 | [2] | PLUG | |
| 42. | ZS12C12030 | [20] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm Superseded by part number: ZS18C12030 |
| 43. | ZS12C12100 | [2] | SCREW,Hex, M12 x 100mm | KOBM12x1.75x100mm Superseded by part number: ZS18C12100 |
| 44. | ZS12C16080 | [6] | CAPSCREW M16x2.0x80mm | CAPSCREW M16x2.0x80mm |
| 45. | ZS12C12060 | [12] | SCREW,Hex, M12 x 60mm | KOBM12x1.75x60mm Superseded by part number: ZS18C12060 |
| 46. | ZD12P03800 | [2] | O-RING | KOBID 37.70 ± 0.37 x OD 44.7mm |
| 47. | ZD12P03400 | [6] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 48. | ZN12C16013 | [5] | NUT | KOBM16x2.0mm |
| 49. | ZS12C12075 | [4] | SCREW,Hex, M12 x 75mm | KOBM12x1.75x75mm Superseded by part number: ZS18C12075 |
| 50. | ZS12C12070 | [24] | CAPSCREW M12x1.75x70mm | CAPSCREW M12x1.75x70mm |
| 51. | ZS23C14050 | [4] | SCREW,Hex Socket Head, M14 x 50mm | KOBM14x2.0x50mm |
| 52. | R20T0033D2 | [4] | CAPSCREW | |
| 53. | ZN12C12010 | [6] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 54. | R20P0050D4 | [1] | NUT | KOB |
| 55. | R20T0020 | [1] | NUT | KOB |
| 56. | ZW22X12000 | [62] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 57. | R16T009701 | [8] | WASHER | |
| 58. | ZW22X16000 | [6] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 59. | R16T0079D1 | [1] | WASHER | |
| 60. | R16T0079D2 | [1] | WASHER | KOB |
| 61. | ZX58N16180 | [2] | HOSE | KOB1800mm Long (70-7/8 in) |
| 62. | ZX28N12180 | [6] | HOSE | KOB |
| 63. | ZX58N12130 | [2] | HOSE | KOB |
| 64. | ZP15D10140 | [1] | COTTER PIN | KOB |
| 65. | ZP15D10100 | [1] | COTTER PIN | KOBOD 10 x 100mm Long |
| 66. | 2418T5223D1 | [1] | SHIM | KOB Superseded by part number: 2420T2571D3 |
| 67. | 2418T5223D2 | [1] | SHIM | KOB Superseded by part number: 2420T2571D4 |
| 68. | 2418T5223D3 | [1] | SHIM | KOB Superseded by part number: 2420T2571D5 |
| 69. | 2418T5223D4 | [1] | SHIM, 3.2 | SHIM, 3.2 |
| 70. | 2418T5458 | [1] | | |
| 72. | ZX58N12135 | [2] | HOSE | |
