神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (09-011) - BUCKET ASSY, 2.7 METER CUBIC P/N 24100X941F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
311 次

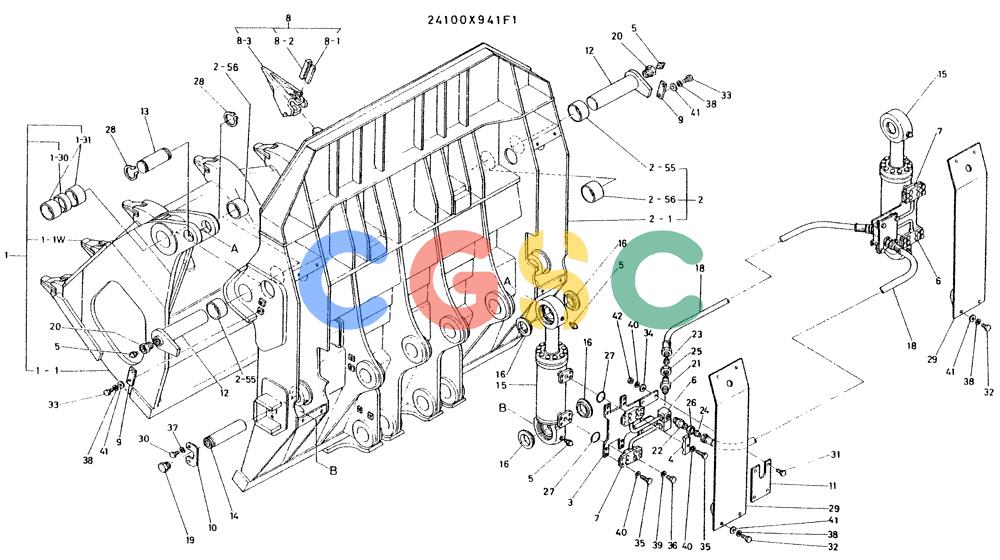

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100X941F1 | [1] | BUCKET ASSY, CONSISTS OF REF 1 TO 42 | |
| 1. | 2412X232F1 | [1] | BUCKET, FR., CONSISTS OF REF 1-1 TO 1-31 | |
| 1-1. | 2412X232 | [1] | BUCKET, FR. INCLUDE REF 1-1W | |
| 1-1W. | 2412U41 | [6] | ADAPTER | |
| 1-30. | R16T0006D1 | [2] | SPACER | |
| 1-31. | B05T0030 | [4] | BUCKET, FR. | |
| 2. | 2412X233F1 | [1] | BUCKET.RE, CONSISTS OF REF 2-1 TO 2-56 | |
| 2-1. | 2412X233 | [1] | BUCKET, RE. | |
| 2-55. | 2405T709 | [2] | BUSHING | KOB |
| 2-56. | 2405T710 | [2] | BUSHING | |
| 3. | 2416P5142 | [2] | BRACKET | |
| 4. | R16T0374D1 | [2] | CLAMP | KOB |
| 5. | 44Z1D10 | [6] | FITTING | KOB |
| 6. | 2418P5810 | [2] | LINES, TUBE | |
| 7. | 2418P5811 | [2] | LINES, TUBE | |
| 8. | 2412U40F1 | [6] | POINT ASSY, CONSISTS OF REF 8-1 & 8-2 | |
| 8-1. | 2412U28S1 | [1] | PIN, LOCKING | PIN, LOCKING |
| 8-2. | 2412U28S2 | [1] | SHEAR BOLT | SHEAR BOLT |
| 8-3. | 2412U40S1 | [1] | POINT | |
| 9. | B16T0006 | [2] | PLATE | PLATE |
| 10. | 2418T5430 | [2] | PLATE | |
| 11. | 2418T7161 | [2] | PLATE | |
| 12. | 2419P982 | [2] | PIN | |
| 13. | B19T0123 | [2] | PIN | PIN |
| 14. | 2419T2096 | [2] | PIN | |
| 15. | B38K0033F2 | [2] | CYLINDER | |
| 16. | R16T0091 | [8] | SPACER | SPACER |
| 18. | ZX58N10150 | [2] | FLEXIBLE HOSE | KOBHOSE 1500mm Long (59-1/16 in) |
| 19. | R20T0124 | [2] | PLUG | |
| 20. | R20T0125 | [2] | PLUG | KOB |
| 21. | R44T0044D1 | [2] | CONNECTOR | |
| 22. | R44T0044D2 | [4] | ADAPTER | |
| 23. | ZF93S28000 | [2] | FERRULE | KOB Superseded by part number: ZA93S28000 |
| 24. | ZF93S22000 | [4] | FERRULE | KOB |
| 25. | ZF93N28000 | [2] | TUBE NUT | KOB Superseded by part number: ZA93N28000 |
| 26. | ZF93N22000 | [4] | NUT | KOB |
| 27. | ZD12P03400 | [4] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 26. | ZR16X07000 | [4] | RING | KOB |
| 29. | 2414T1665 | [2] | COVER | |
| 30. | ZS13C16030 | [4] | SCREW | KOBM16x2.0x30mm |
| 31. | ZS12C10030 | [8] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm Superseded by part number: ZS18C10030 |
| 32. | ZS12C12040 | [8] | CAPSCREW M12x1.75x40mm | CAPSCREW M12x1.75x40mm |
| 33. | ZS12C12020 | [4] | SCREW,Hex, M12 x 20mm | KOBM12x1.75x20mm Superseded by part number: ZS18C12020 |
| 34. | ZW11X10000 | [8] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 35. | ZS11C10030 | [18] | CAPSCREW,Hex, M10 x 30mm, Cl 4.8 | KOBSCREW M10x1.50x30mm |
| 36. | ZS23C12030 | [16] | SCREW,Hex Socket Head, M12 x 30mm | KOBM12x1.75x30mm |
| 37. | ZW22X16000 | [4] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 38. | ZW22X12000 | [8] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 39. | ZW22K12000 | [16] | LOCK WASHER | KOBID 12.2 x OD 17.8 x Th 2.5mm |
| 40. | ZW22X10000 | [26] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 41. | ZW11X12000 | [12] | WASHER | KOBID 12 x OD 24 x Th 2.3mm Superseded by part number: ZW16X12000 |
| 42. | ZN12C10008 | [8] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
