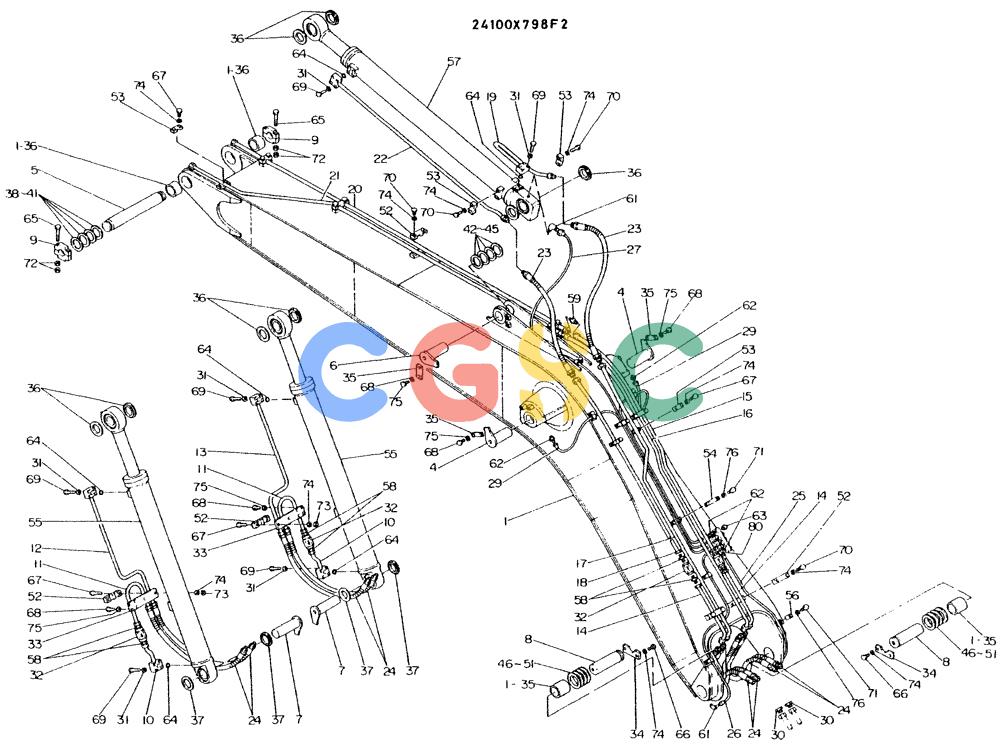

| . . | 24100X798F2 | [1] | BOOM ASSY , CONSISTS OF REF 1 TO 80 | |
| 1. | 2411X523F1 | [1] | BOOM, INCLUDE REF 1-35 & 1-36 | |
| 1-35. | 2405T607 | [2] | BUSHING | BUSHING |
| 1-36. | 2405T705 | [2] | BUSHING | KOB |
| 4. | B19T0058 | [2] | PIN | PIN |
| 5. | 2419P947 | [1] | PIN | PIN |
| 6. | 2419P943 | [1] | PIN | |
| 7. | B19T0031 | [2] | PIN | PIN |
| 8. | 2419T1663 | [2] | PIN | PIN |
| 9. | 2432T995 | [2] | CLAMP | KOB |
| 10. | 2418P3904 | [2] | TUBE | TUBE |
| 11. | 2418P3903 | [2] | TUBE | TUBE |
| 12. | 2418N1039D2 | [1] | TUBE | TUBE |
| 13. | 2418N1039D1 | [1] | TUBE | TUBE |
| 14. | 2418T5557 | [2] | TUBE | TUBE |
| 15. | 2418N1193 | [1] | TUBE | |
| 16. | 2418N1191 | [1] | TUBE | TUBE |
| 17. | 2418N1194 | [1] | TUBE | TUBE |
| 18. | 2418N1192 | [1] | TUBE | KOB |
| 19. | 2418P4066 | [1] | TUBE | TUBE |
| 20. | 2418N1045 | [1] | TUBE | KOB |
| 21. | 2418N1159 | [1] | TUBE | KOB |
| 22. | 2418N1195 | [1] | TUBE | KOB |
| 23. | 2444R488D6 | [2] | HOSE | HOSE |
| 24. | 2444R488D5 | [8] | HOSE | HOSE |
| 25. | 2420R349D150 | [1] | HOSE,6.35mm ID x 1500mm L | KOBPF 1/4 |
| 26. | 2420R349D230 | [1] | HOSE ASSY. | KOB2300mm Long (90-1/2 in) |
| 27. | 2420R349D400 | [1] | FLEXIBLE HOSE | KOB4000mm Long (157-31/64 in) |
| 29. | 2420R349D320 | [2] | HOSE ASSY. | KOB3200mm Long (126 in) |
| 30. | 2444T1329D5 | [2] | PLUG | KOB Superseded by part number: ZF86P28000 |
| 31. | ZW22K14000 | [24] | LOCK WASHER | KOBID 14.2 x OD 21.8 x Th 3.5mm |
| 32. | 2436R287 | [4] | HYDRAULIC VALVE | KOB |
| 33. | 2418T4244 | [2] | PLATE | PLATE |
| 34. | 2418T4060 | [2] | PLATE | PLATE |
| 35. | B16T0006 | [4] | PLATE | PLATE |
| 36. | R16T0227D3 | [8] | SPACER | KOB |
| 37. | R16T0227D2 | [4] | SPACER | SPACER |
| 38. | 2418T5223D4 | [2] | SHIM, 3.2 | SHIM, 3.2 |
| 39. | 2418T5223D3 | [2] | SHIM | KOB Superseded by part number: 2420T2571D5 |
| 40. | 2418T5223D2 | [2] | SHIM | KOB Superseded by part number: 2420T2571D4 |
| 41. | 2418T5223D1 | [2] | SHIM | KOB Superseded by part number: 2420T2571D3 |
| 42. | 2420T2747D5 | [1] | SHIM,102mm ID x 170mm OD x 3.2mm Thk | KOBID 102 x OD 170 x Th 3.2mm |
| 43. | 2420T2747D4 | [1] | SHIM,102mm ID x 170mm OD x 2.3mm Thk | KOBID 102 x OD 170 x Th 2.3mm |
| 44. | 2420T2747D3 | [1] | SHIM,102mm ID x 170mm OD x 1.6mm Thk | KOBID 102 x OD 170 x Th 1.6mm |
| 45. | 2420T2747D2 | [1] | SHIM,102mm ID x 170mm OD x 1.2mm Thk | KOBID 102 x OD 170 x Th 1.2mm |
| 46. | 2420T2571D3 | [2] | SHIM,123mm ID x 180mm OD x 1.2mm Thk | KOBID 123 x OD 180 x Th 1.2mm |
| 47. | 2420T2571D4 | [2] | SHIM,123mm ID x 180mm OD x 1.6mm Thk | KOBID 123 x OD 180 x Th 1.6mm |
| 48. | 2420T2571D5 | [2] | SHIM,123mm ID x 180mm OD x 2.3mm Thk | KOBID 123 x OD 180 x Th 2.3mm |
| 49. | 2420T2571D6 | [2] | SHIM,123mm ID x 180mm OD x 3.2mm Thk | KOB |
| 50. | 2420T2571D7 | [2] | SHIM | SHIM |
| 51. | 2420T2571D8 | [2] | SHIM, 6.0 | SHIM, 6.0 |
| 52. | R16P0027D4 | [8] | CLAMP | KOB |
| 53. | R16P0035D3 | [6] | CLAMP | KOB |
| 54. | 2416T3655 | [2] | CLAMP | KOB |
| 55. | 2438U400F2 | [1] | CYLINDER | CYLINDER |
| 56. | R16P0036D17 | [7] | CLAMP | CLAMP |
| 57. | 2438U468F1 | [1] | CYLINDER ASSY | CYLINDER ASSY |
| 58. | ZF23E35020 | [8] | HYD CONNECTOR | KOB |
| 59. | ZF23B35000 | [2] | HYD CONNECTOR | KOB |
| 61. | ZH32Z04000 | [3] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
| 62. | ZH22Z04000 | [7] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 63. | 44Z1D10 | [5] | FITTING | KOB |
| 64. | ZD12P03800 | [6] | O-RING | KOBID 37.70 ± 0.37 x OD 44.7mm |
| 65. | ZS11C12120 | [4] | CAPSCREW M12x1.75x120mm | CAPSCREW M12x1.75x120mm |
| 66. | ZS12C16035 | [4] | CAPSCREW M16x2.0x35mm | CAPSCREW M16x2.0x35mm |
| 67. | ZS12C16080 | [14] | CAPSCREW M16x2.0x80mm | CAPSCREW M16x2.0x80mm |
| 68. | ZS12C12030 | [16] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm Superseded by part number: ZS18C12030 |
| 69. | ZS23C14075 | [24] | CAPSCREW,Hex Socket Head, M14 x 75mm | KOBSCREW M14x2.0x75mm |
| 70. | ZS12C16070 | [14] | SCREW,Hex, M16 x 70mm | KOBM16x2.0x70mm |
| 71. | ZS11C08012 | [11] | SCREW,Hex, M8 x 12mm, Cl 4.8 | KOBM08x1.25x12mm Superseded by part number: ZS18C08012 |
| 72. | ZN11C12010 | [8] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 73. | ZN12C16013 | [4] | NUT | KOBM16x2.0mm |
| 74. | ZW22X16000 | [28] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 75. | ZW22X12000 | [20] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 76. | ZW22X08000 | [11] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 80. | ZG32B04000 | [1] | ELBOW | KOB |
