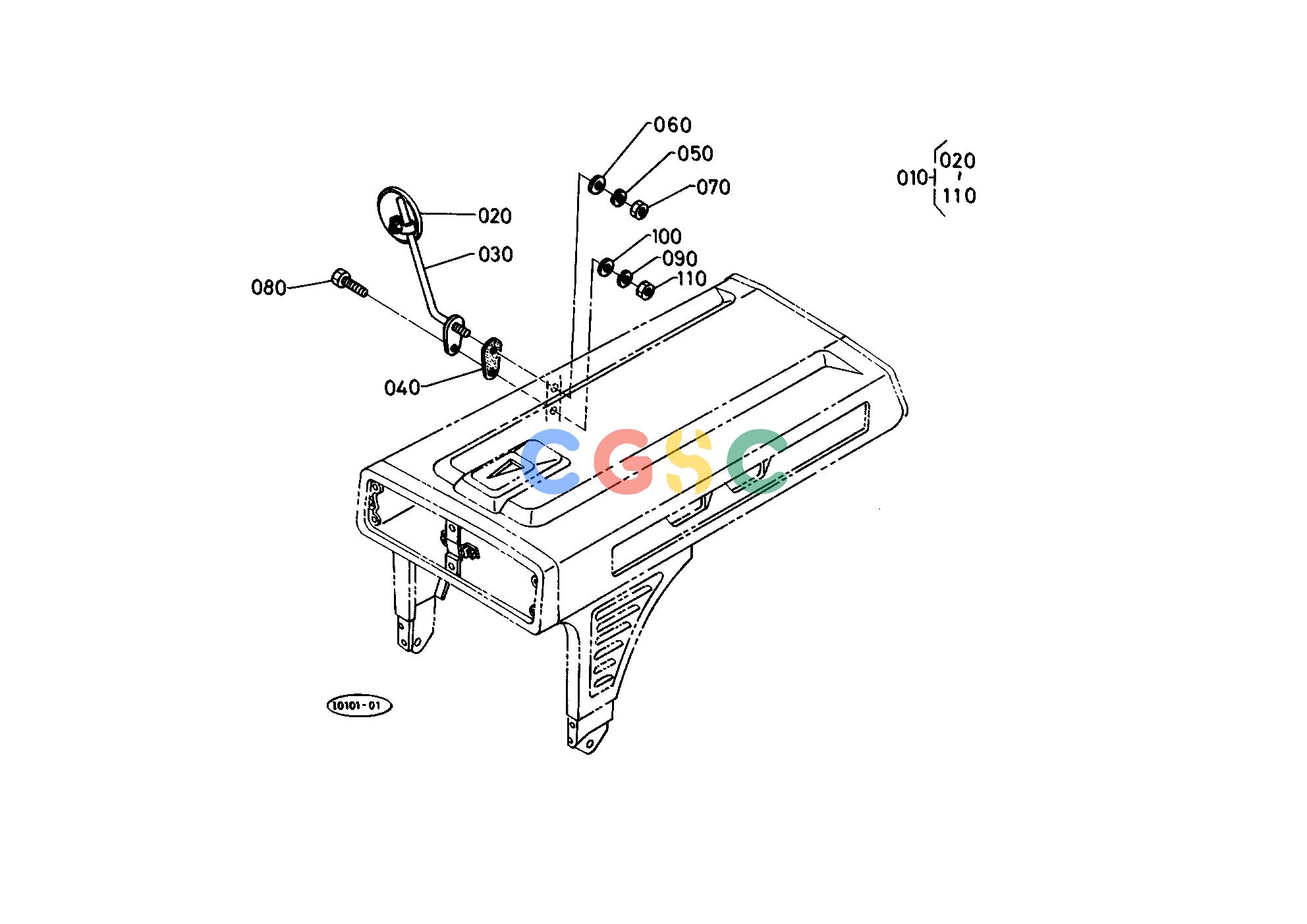

久保田零件查询T09000 REARVIEW MIRROR (OPTION) [A] [CA] [U] HOOD(BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
982 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6670481100
|
[1] |
KIT REARVIEW MIRROR
|
0.6754(lbs); 0.307
|
| 020. |
6671161130
|
[1] |
ASSY MIRROR
|
0.2288(lbs); 0.104
|
| 030. |
6671161110
|
[1] |
SUPPORT R.MIRROR
|
0.3124(lbs); 0.142
|
| 040. |
6671161120
|
[1] |
CUSHION
|
0.0044(lbs); 0.002
|
| 050. |
0451250100
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 060. |
0401350100
|
[1] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 070. |
0211850100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 080. |
0105350618
|
[1] |
BOLT
|
0.0132(lbs); 0.006
|
| 090. |
0451250060
|
[1] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 100. |
0401350060
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 110. |
0201450060
|
[1] |
NUT
|
0.0044(lbs); 0.002
|
| 120. |
6670481110
|
[1] |
MANUAL CONSTRUCTION
|
0.0000(lbs); 0.000
|
