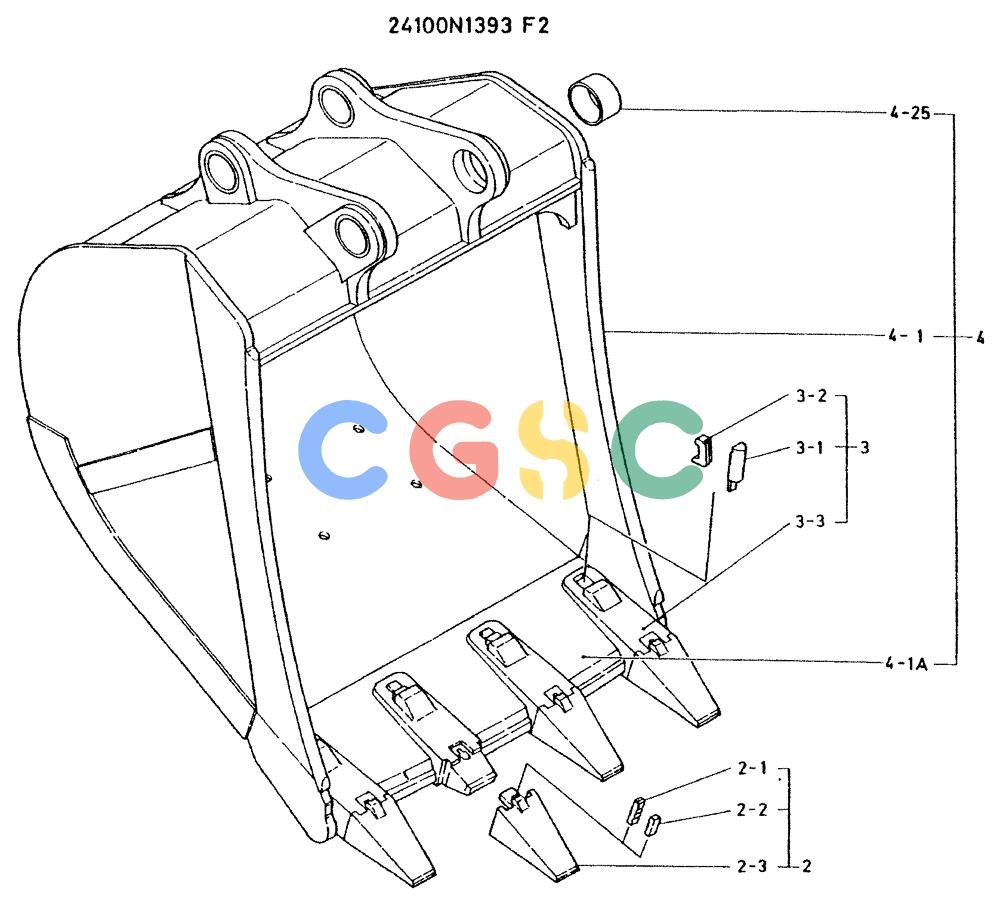

神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (09-022) - BUCKET ASSY, P/N 24100N1393F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
597 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N1393F2 | [1] | BUCKET ASSY. 2.0M, CONSISTS OF ITEM 2 To 4 | |
| 2. | 2412U28F1 | [4] | POINT ASSY, CONSISTS OF ITEM 2-1 To 2-3 | |
| 2-1. | 2412U28S1 | [1] | PIN, LOCKING | PIN, LOCKING |
| 2-2. | 2412U28S2 | [1] | SHEAR BOLT | SHEAR BOLT |
| 2-3. | 2412U28S3 | [1] | POINT | POINT |
| 3. | 2412U27F1 | [4] | ADAPTER | KOBCONSISTS OF ITEM 3-1 TO 3-3 |
| 3-1. | 2412R1D1 | [1] | WEDGE | WEDGE |
| 3-2. | 2412U27S2 | [1] | CLAMP | CLAMP |
| 3-3. | 2412U27S3 | [1] | ADAPTER | |
| 4. | 2412X234F1 | [1] | BUCKET, CONSISTS OF ITEM 4-1 & 4-25 | |
| 4-1. | 2412X234 | [1] | BUCKET, INCLUDE ITEM 4-1A | |
| 4-1A. | 2412U26 | [1] | LIP CENTER | |
| 4-25. | 2405T704 | [4] | BUSHING | BUSHING |
| . . | 2412R1D2 | [1] | WEDGE | WEDGE |
