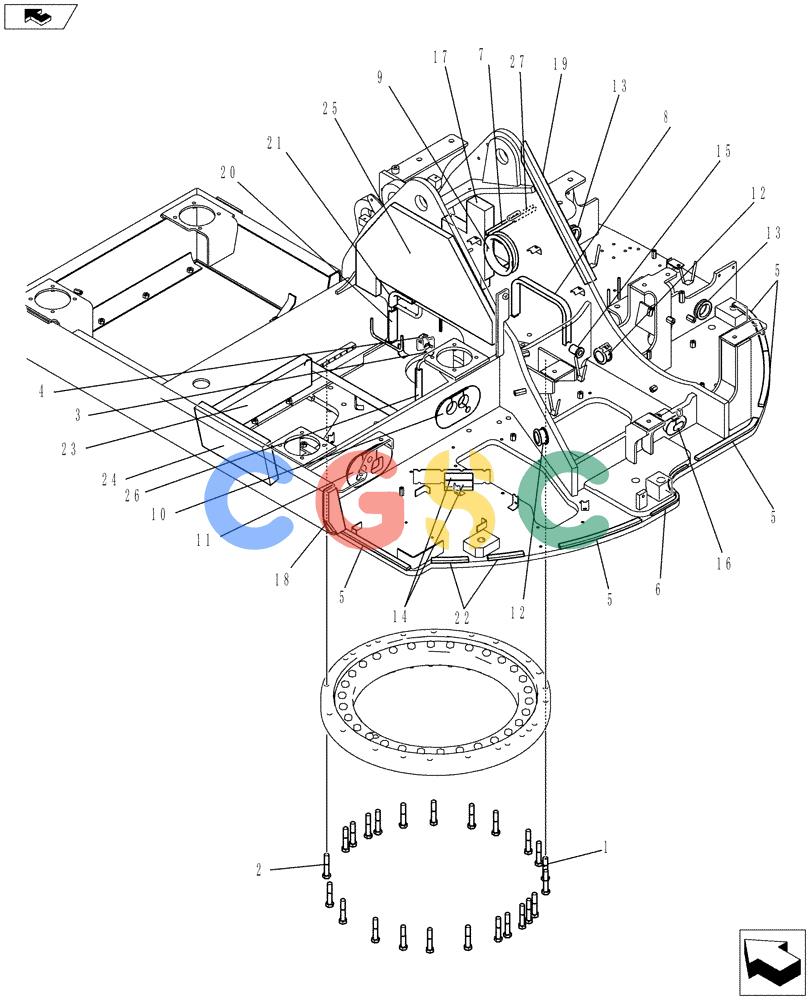

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR ASN YT06-18001 (01-002[00]) - FRAME GROUP, UPPER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
177 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT52F00062F1 | [1] | Upp. | |
| 1. | HS53C16085G1 | [1] | SCREW | KOBCap |
| 2. | ZS13C16085 | [23] | SCREW | KOBCap |
| 3. | ZN18F20016 | [1] | NUT | KOB |
| 4. | ZS18F20085 | [1] | CAPTIVE WASHER SCREW,Hex, M20 x 85mm | KOB |
| 5. | YR52F01080D7 | [5] | RUBBER SEAL | KOB Superseded by part number: YY52F01567D5 |
| 6. | YR52F01086D3 | [1] | RUBBER SEAL | KOB |
| 7. | PF64H01015D6 | [1] | RUBBER SEAL | KOB |
| 8. | YT64H01029D7 | [1] | RUBBER | KOB |
| 9. | YT68H01031P1 | [1] | GROMMET | KOB |
| 10. | YT32H01066P1 | [1] | GROMMET | KOB |
| 11. | YT13E01120P1 | [1] | GROMMET | KOB |
| 12. | PH13E01071P1 | [2] | GROMMET | KOB |
| 13. | 2420Z1234 | [2] | GROMMET | KOB |
| 14. | YT52F01189P1 | [2] | INSULATION | KOB |
| 15. | 2420R766D4 | [1] | GROMMET | KOB |
| 16. | YT52F01266P1 | [1] | GROMMET | KOB |
| 17. | YT52F01257P1 | [1] | INSULATION | KOB |
| 18. | YT52F01258P1 | [1] | INSULATION | KOB |
| 19. | YT52F01259P1 | [1] | INSULATION | KOB |
| 20. | YT64H01029D2 | [1] | RUBBER | KOB |
| 21. | YT64H01029DD | [1] | RUBBER SEAL | KOB |
| 22. | YR52F01080DE | [2] | RUBBER SEAL | KOB Superseded by part number: YY52F01567D5 |
| 23. | YT52F01267P1 | [1] | INSULATION | KOB |
| 24. | YT52F01268P1 | [1] | INSULATION | KOB |
| 25. | YT52F01269P1 | [1] | INSULATION | KOB |
| 26. | YT64H01027D5 | [1] | RUBBER SLEEVE | KOB |
| 27. | PM52F01205D9 | [1] | RUBBER SLEEVE | KOB |
