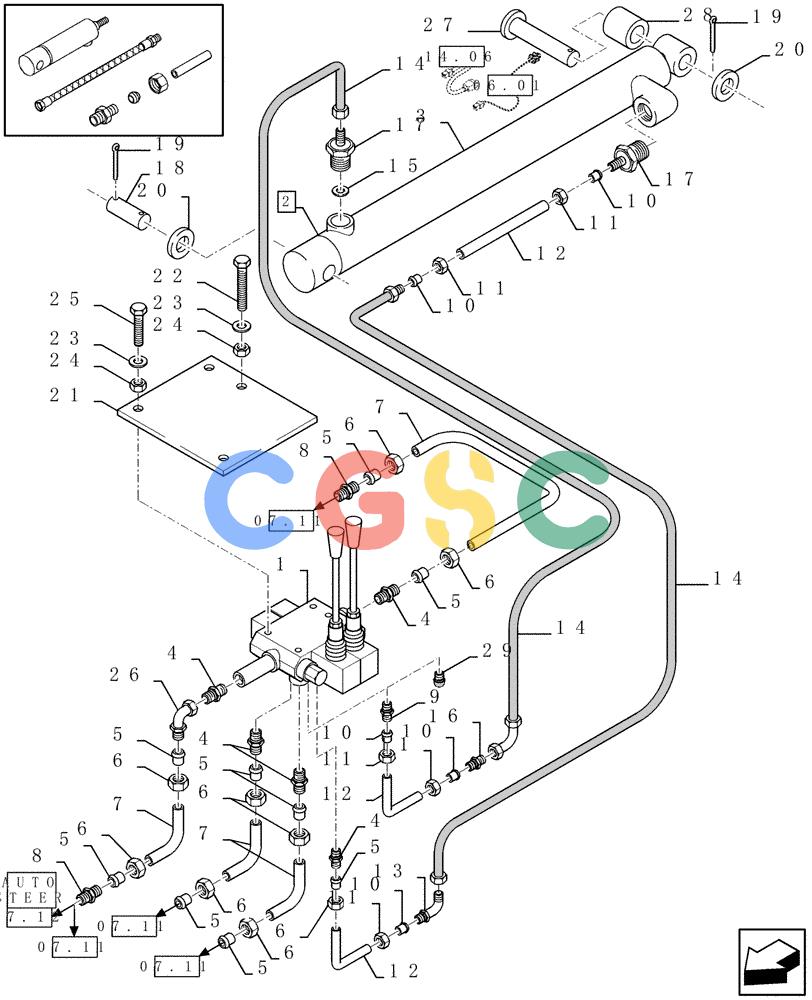

凯斯零件查询(LBX331S) - BIG RECTANGULAR BALER (6/01-12/03) (07.10[01]) - BALE EJECT CONTROLE AND BALE CHUTE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
993 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84062215
|
[1] |
HYDRAULIC VALVE
|
ZED
Superseded by part number: 84568219
|
| 2. |
84807310
|
[1] |
HYDRAULIC CYLINDER,Double Acting, 20mm Rod, 550mm Stroke
|
ZED
(3)
|
| 3. |
84078090
|
[1] |
SEAL KIT
|
ZED
|
| 4. |
89813512
|
[4] |
HYD CONNECTOR
|
ZED
|
| 5. |
80150014
|
[1] |
FERRULE
|
ZED
10MM Superseded by part number: 150014
|
| 6. |
86548975
|
[1] |
PIPE UNION NUT,M16 x 1.5
|
ZED
M10
|
| 7. |
80371539
|
[1] |
RIGID TUBE
|
ZED
D=10MM,L=2M Superseded by part number: 371539
|
| 8. |
80150017
|
[1] |
HYD CONNECTOR
|
ZED
Superseded by part number: 47499003
|
| 9. |
84043514
|
[2] |
HYD CONNECTOR
|
ZED
|
| 10. |
80335136
|
[1] |
FERRULE
|
ZED
8MM Superseded by part number: 335136
|
| 11. |
80335135
|
[1] |
NUT
|
ZED
M8 Superseded by part number: 335135
|
| 12. |
80371540
|
[1] |
RIGID TUBE
|
ZED
D=8MM,L=2M Superseded by part number: 371540
|
| 13. |
80418283
|
[1] |
ELBOW
|
ZED
Superseded by part number: 418283
|
| 14. |
84078517
|
[2] |
FLEXIBLE HOSE,6.35mm ID x 600mm L, SAE 100R1
|
ZED
|
| 15. |
80423996
|
[1] |
ORIFICE
|
ZED
Superseded by part number: 423996
|
| 16. |
80335172
|
[1] |
HYD CONNECTOR
|
ZED
Superseded by part number: 335172
|
| 17. |
80386215
|
[2] |
HYD CONNECTOR
|
ZED
Superseded by part number: 386215
|
| 18. |
80390055
|
[1] |
PIN,16mm OD x 85mm L
|
ZED
, Serial Range: -C251
|
| 18. |
80356015
|
[1] |
SPINDLE
|
ZED
, Start Serial: D252 Superseded by part number: 356015
|
| 19. |
80130007
|
[1] |
COTTER PIN
|
ZED
Superseded by part number: 83903970
|
| 20. |
80378246
|
[1] |
WASHER
|
ZED
17MM Superseded by part number: 378246
|
| 21. |
84074612
|
[1] |
PLATE
|
ZED
|
| 22. |
80386045
|
[2] |
SCREW
|
ZED
M8x45 Superseded by part number: 16044124
|
| 23. |
80322358
|
[4] |
LOCK WASHER
|
ZED
8MM Superseded by part number: 322358
|
| 25. |
80043127
|
[2] |
SCREW,M8 x 25mm
|
ZED
Superseded by part number: 43127
|
| 26. |
80418284
|
[1] |
ELBOW
|
ZED
Superseded by part number: 418284
|
| 27. |
84078725
|
[1] |
CLEVIS PIN,16mm OD x 100mm L
|
ZED
|
| 28. |
84400935
|
[1] |
ROLLER
|
ZED
|
| 29. |
89837623
|
[2] |
PLUG
|
ZED
Superseded by part number: 86557412
|
| 24. |
89706690
|
[4] |
NUT,M8, Cl 8
|
ZED
Superseded by part number: 43362
|
