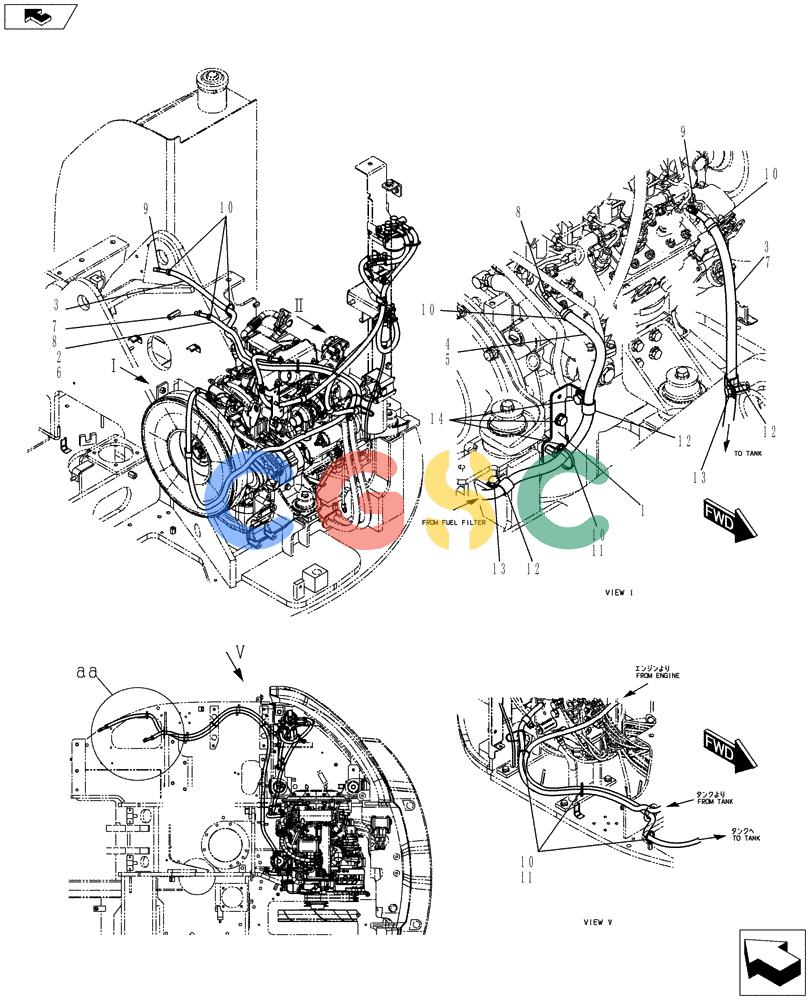

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR ASN YT06-18001 (01-012[00]) - FUEL LINES New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
795 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT21P00008F1 | [1] | | |
| 1. | YT21P01009P1 | [1] | BRACKET | KOB |
| 2. | PH21P01003DV | [1] | FLEXIBLE HOSE | KOB |
| 3. | PH21P01008D4 | [1] | FLEXIBLE HOSE | KOB |
| 4. | YT21P01015D1 | [1] | HOSE ASSY. | KOB |
| 5. | HX81X13135DX | [1] | PIPE | KOB |
| 6. | HX81X13150DX | [1] | TUBE | KOB |
| 7. | HX81X13260DX | [1] | TUBE | KOB |
| 8. | PH05P01088D5 | [8] | CLIP | KOB |
| 9. | PH05P01088D6 | [2] | CLIP | KOB |
| 10. | PY01P01043D2 | [17] | CABLE TIE,4.60mm W x 202mm L | KOB Superseded by part number: YT50C01100P1 |
| 11. | YN13E01375P1 | [4] | CLIP,M8 x 8.20mm Shank | KOB |
| 12. | ZC46X19011 | [5] | CLIP | KOB |
| 13. | ZM73C10016 | [4] | BOLT,M10x16mm - Course Thread | KOBSems |
| 14. | ZM73C10020 | [3] | BOLT,M10x20mm - Course Thread | KOBSems |
