现代零件查询R500LC-7 MAIN BEARINGS(-#0631)EPC Hyundai

广数供应链运营团队, 15 02月, 2025，浏览： 838 次

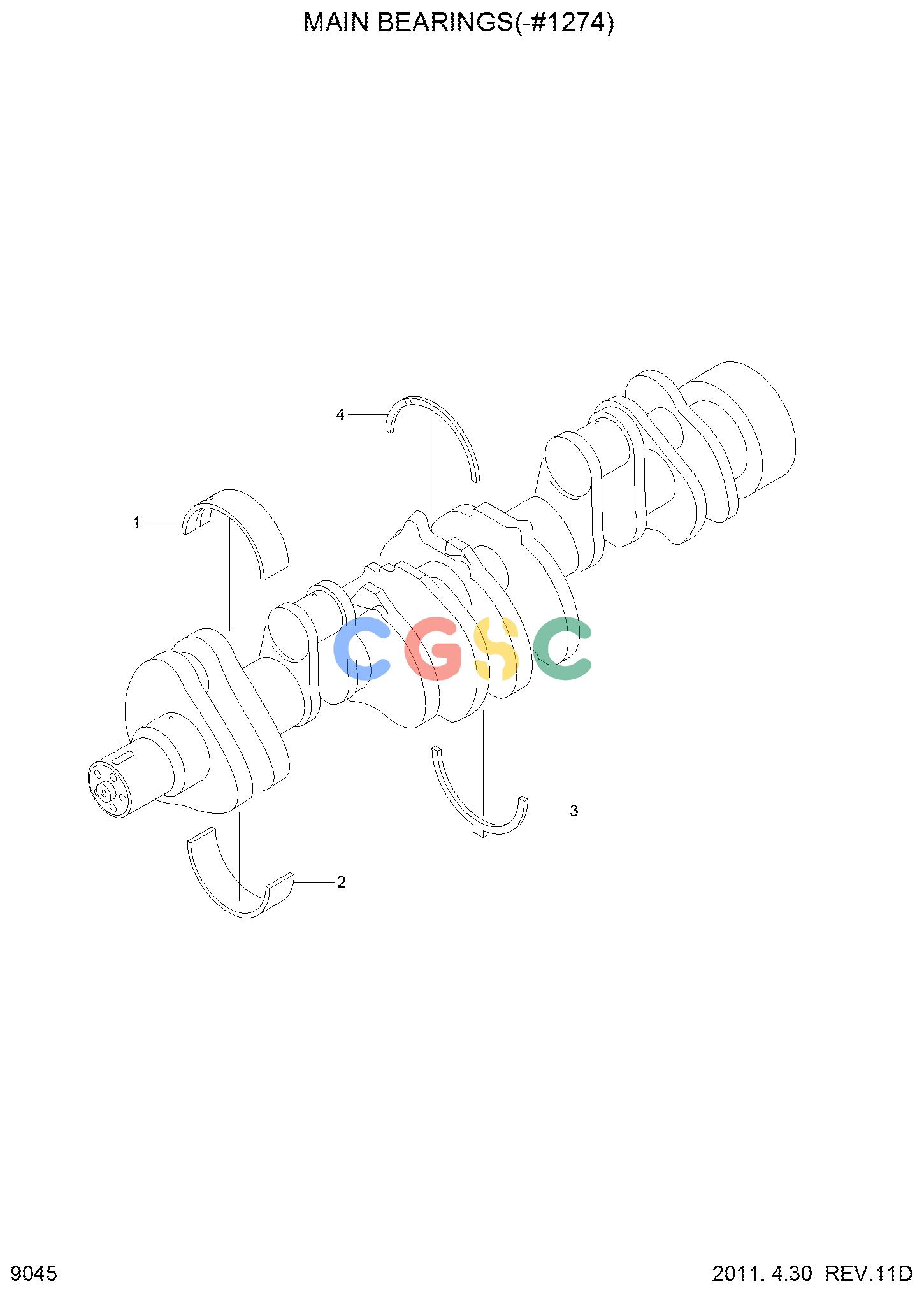

Pos.	Part No	Qty	Parts name	Comments
.	4025120	[1]	MAIN BEARING SET	BB2706-03 STD
1.	3016770	[7]	BEARING-MAIN	UPPER
2.	3016780	[7]	BEARING-MAIN	LOWER
3.	4023083	[2]	BEARING-THRUST	NO.4 MAIN STD
4.	4023203	[2]	BEARING-THRUST	NO.4 MAIN STD
.	4025121	[1]	MAIN BEARING SET	0.25MM O/S
1.	3016771	[7]	BEARING-MAIN	UPPER
2.	3016781	[7]	BEARING-MAIN	LOWER
3.	4023083	[2]	BEARING-THRUST	NO.4 MAIN STD
4.	4023203	[2]	BEARING-THRUST	NO.4 MAIN STD
.	4025122	[1]	MAIN BEARING SET	0.50MM O/S
1.	3016772	[7]	BEARING-MAIN	UPPER
2.	3016782	[7]	BEARING-MAIN	LOWER
3.	4023083	[2]	BEARING-THRUST	NO.4 MAIN STD
4.	4023203	[2]	BEARING-THRUST	NO.4 MAIN STD
N .	4025123	[1]	MAIN BEARING SET	0.75MM O/S
1.	3016773	[7]	BEARING-MAIN	UPPER
2.	3016783	[7]	BEARING-MAIN	LOWER
3.	4023083	[2]	BEARING-THRUST	NO.4 MAIN STD
4.	4023203	[2]	BEARING-THRUST	NO.4 MAIN STD
N .	4025124	[1]	MAIN BEARING SET	1.00MM O/S
1.	3016774	[7]	BEARING-MAIN	UPPER
2.	3016784	[7]	BEARING-MAIN	LOWER
3.	4023083	[2]	BEARING-THRUST	NO.4 MAIN STD
4.	4023203	[2]	BEARING-THRUST	NO.4 MAIN STD
.	4023084	[2]	BEARING-THRUST	OVER SIZE
.	4023204	[2]	BEARING-THRUST	OVER SIZE
