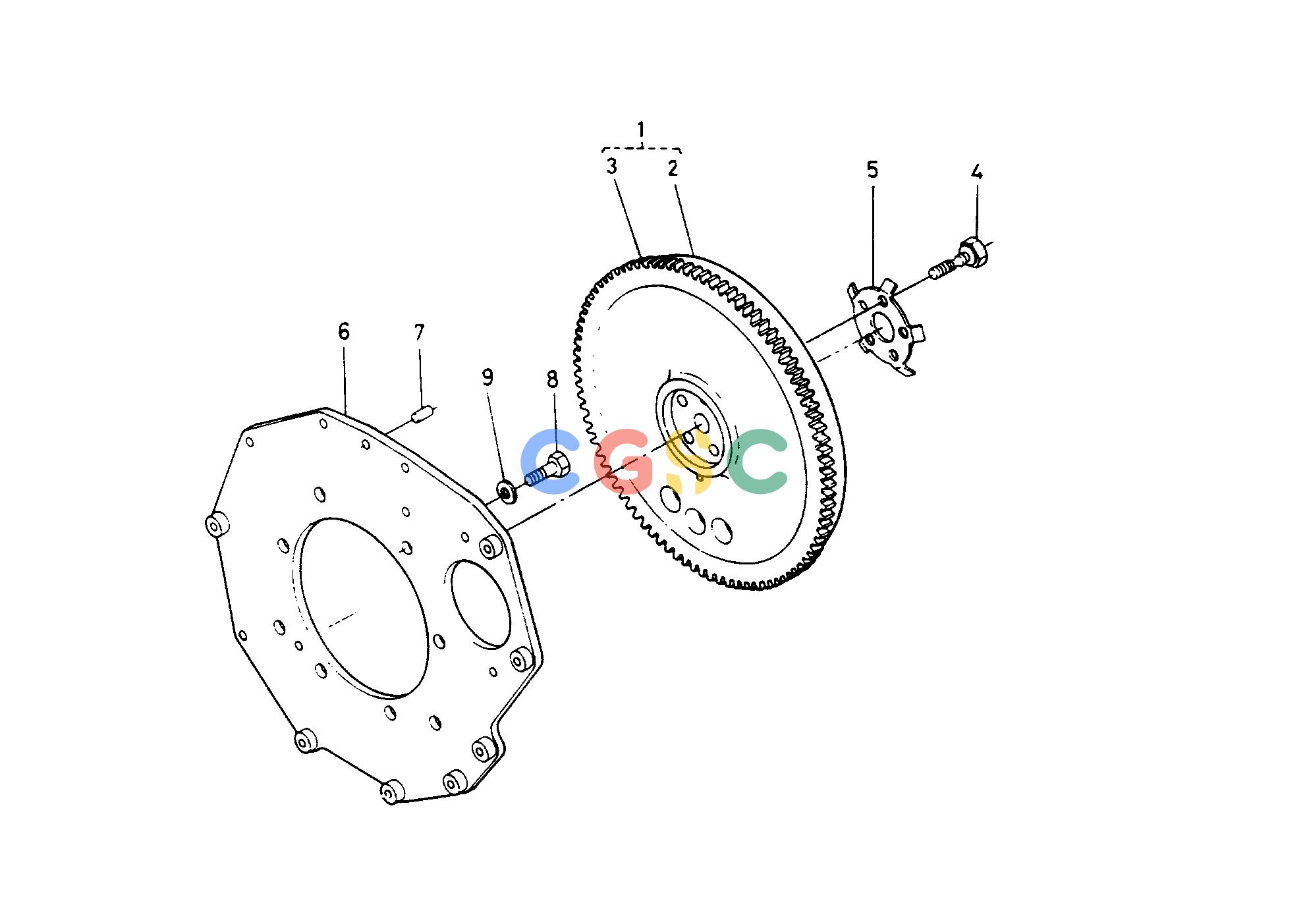

久保田零件查询T01100 FLYWHEEL GROUP ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
395 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
1526125010
|
[1] |
ASSY FLYWHEEL
|
0.0000(lbs); 0.000
|
| 003. |
1526163820
|
[1] |
GEAR RING
|
0.0000(lbs); 0.000
|
| 004. |
1526125160
|
[5] |
BOLT FLYWHEEL
|
0.0660(lbs); 0.030
|
| 005. |
1526125170
|
[1] |
WASHER FLYWHEEL
|
0.0440(lbs); 0.020
|
| 006. |
1526104620
|
[1] |
PLATE REAR END
|
6.1600(lbs); 2.800
|
| 007. |
0501200814
|
[1] |
PIN STRAIGHT
|
0.0132(lbs); 0.006
|
| 008. |
0117351025
|
[8] |
BOLT
|
0.0462(lbs); 0.021
|
| 009. |
0451250100
|
[8] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
