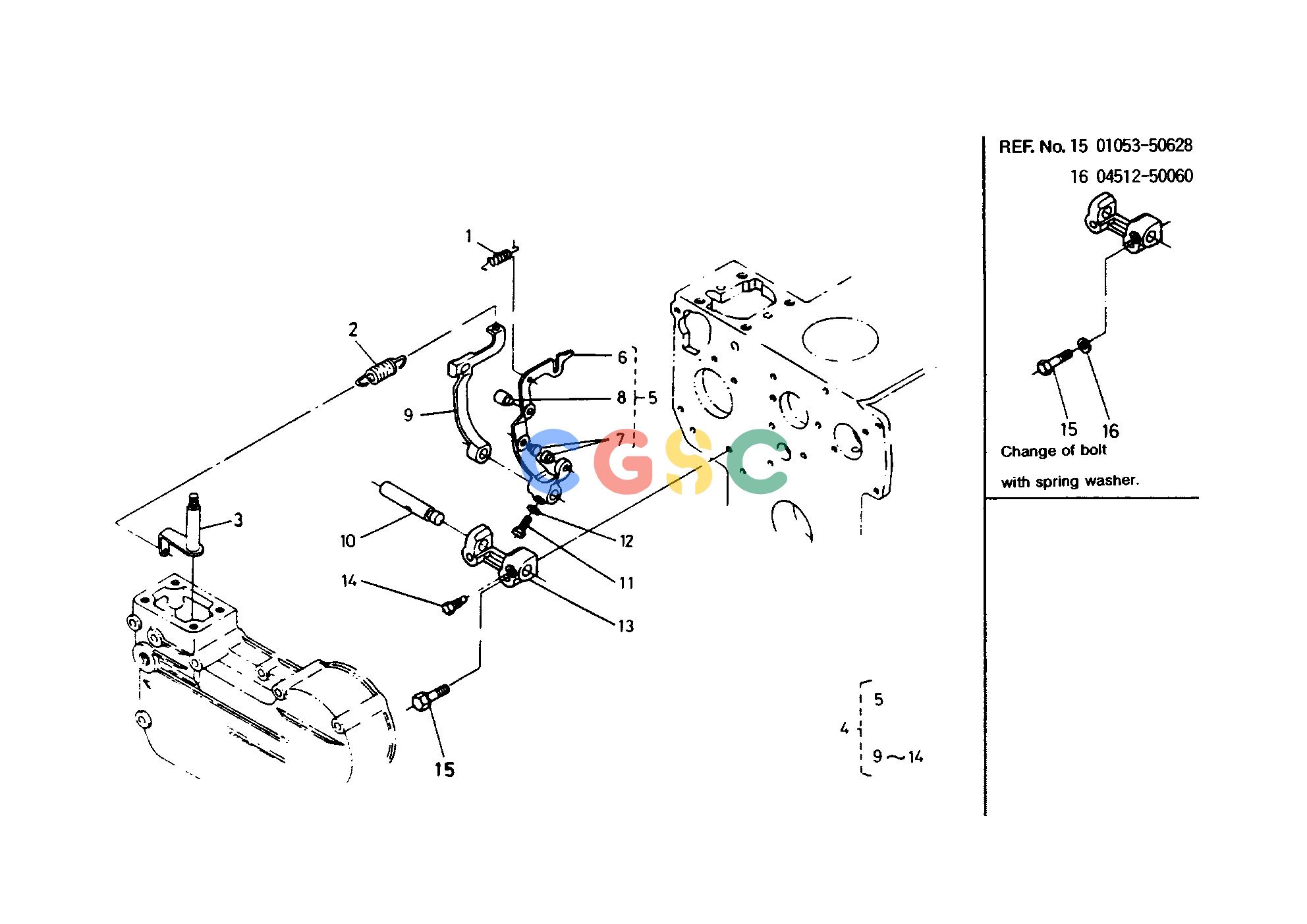

久保田零件查询T01500 GOVERNOR GROUP ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
825 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
1522156480
|
[1] |
SPRING START
|
0.0176(lbs); 0.008
|
| 002. |
1526156410
|
[1] |
SPRING
|
0.0154(lbs); 0.007
|
| 003. |
1526156020
|
[1] |
ASSY LEVER GOVERNOR
|
0.0572(lbs); 0.026
|
| 004. |
1526156050
|
[1] |
ASSY LEVER FORK
|
0.5632(lbs); 0.256
|
| 005. |
1526156040
|
[1] |
ASSY LEVER FORK
|
0.2640(lbs); 0.120
|
| 009. |
1526156130
|
[1] |
LEVER FORK
|
0.1386(lbs); 0.063
|
| 010. |
1526156150
|
[1] |
SHAFT FORK LEVER
|
0.0704(lbs); 0.032
|
| 011. |
0105350516
|
[1] |
BOLT
|
0.0066(lbs); 0.003
|
| 012. |
0451250050
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 013. |
1526156230
|
[1] |
HOLDER FORK LEVER
|
0.0836(lbs); 0.038
|
| 014. |
1526166410
|
[1] |
BOLT
|
0.0066(lbs); 0.003
|
| 015. |
0105350628
|
[2] |
BOLT
|
0.0154(lbs); 0.007
|
| 015. |
0102350628
|
[2] |
BOLT
|
0.0330(lbs); 0.015
|
| 016. |
0451250060
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
