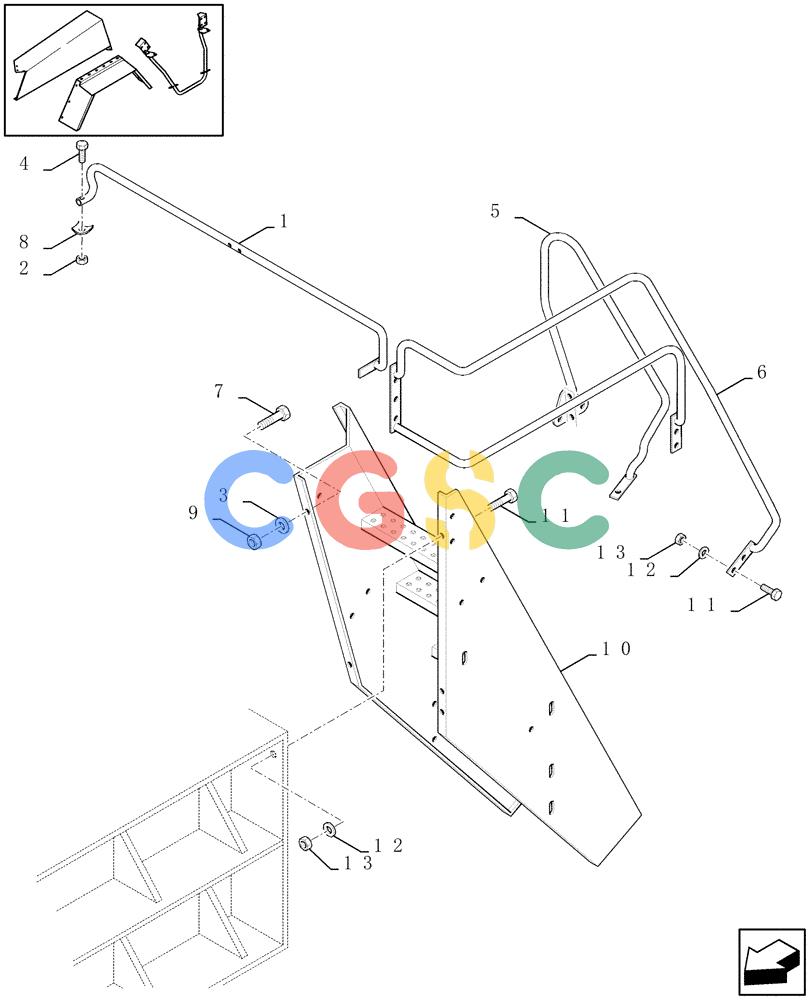

凯斯零件查询(LBX331S) - BIG RECTANGULAR BALER (6/01-12/03) (08.013[01]) - LADDER AND HAND-RAIL FOR MAINTENANCE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
1005 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84607778
|
[1] |
HANDRAIL
|
ZED
|
| 1. |
84607780
|
[1] |
HANDRAIL
|
ZED
|
| 3. |
80322358
|
[2] |
LOCK WASHER
|
ZED
8MM Superseded by part number: 322358
|
| 4. |
80043129
|
[4] |
SCREW
|
ZED
Superseded by part number: 16044024
|
| 5. |
84607776
|
[1] |
HANDRAIL
|
ZED
|
| 6. |
84607775
|
[1] |
HANDRAIL
|
ZED
|
| 7. |
811-8020
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86507486
|
| 8. |
80333962
|
[4] |
CLAMP
|
ZED
Superseded by part number: 333962
|
| 10. |
84607956
|
[1] |
LADDER
|
ZED
|
| 11. |
80120041
|
[1] |
CARRIAGE BOLT
|
ZED
M10x20 Superseded by part number: 120041
|
| 12. |
80140045
|
[1] |
WASHER
|
ZED
10MM Superseded by part number: 140045
|
| 13. |
100016
|
[1] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 2. |
89706690
|
[6] |
NUT,M8, Cl 8
|
ZED
Superseded by part number: 43362
|
