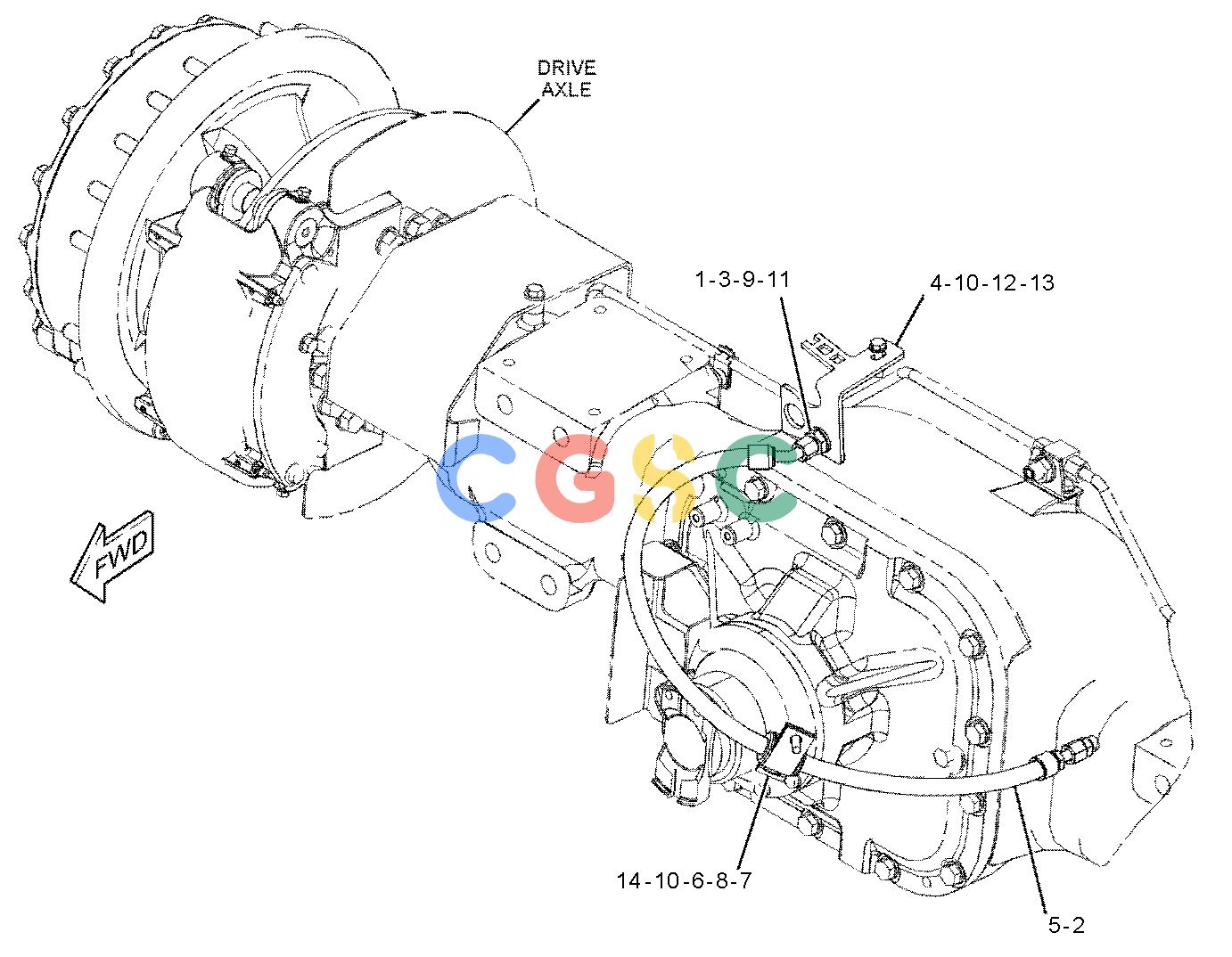

卡特零件查询（730C） 340-4757: BREATHER GP-POWER TRAIN
广数供应链运营团队, 15 02月, 2025，浏览：
151 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-1989 | [1] | VALVE-RELIEF(BREAKER) | |
| 2. | 148-8340 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 3. | 169-7395 | [1] | ADAPTER AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 156-6129 | [1] | ADAPTER | |
| 4. | 398-1085 | [1] | BRACKET | |
| 5. | 446-8169I | [1] | HOSE AS | |
| 6. | 5P-7464 | [1] | CLIP(SLOT) | |
| 7. | 5P-7465 | [1] | CLIP(TAB) | |
| 8. | 6V-1249 | [1] | GROMMET(22-MM ID) | |
| 9. | 6V-9169 | [1] | NUT(13/16-16-THD) | |
| 10. | 8T-4121 | [3] | WASHER-HARD(11X21X2.5-MM THK) | |
| 11. | 8T-4123 | [1] | WASHER(22X35X3.5-MM THK) | |
| 12. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 13. | 8T-4182M | [1] | BOLT(M10X1.5X45-MM) | |
| 14. | 8T-4196M | [1] | BOLT(M10X1.5X35-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
