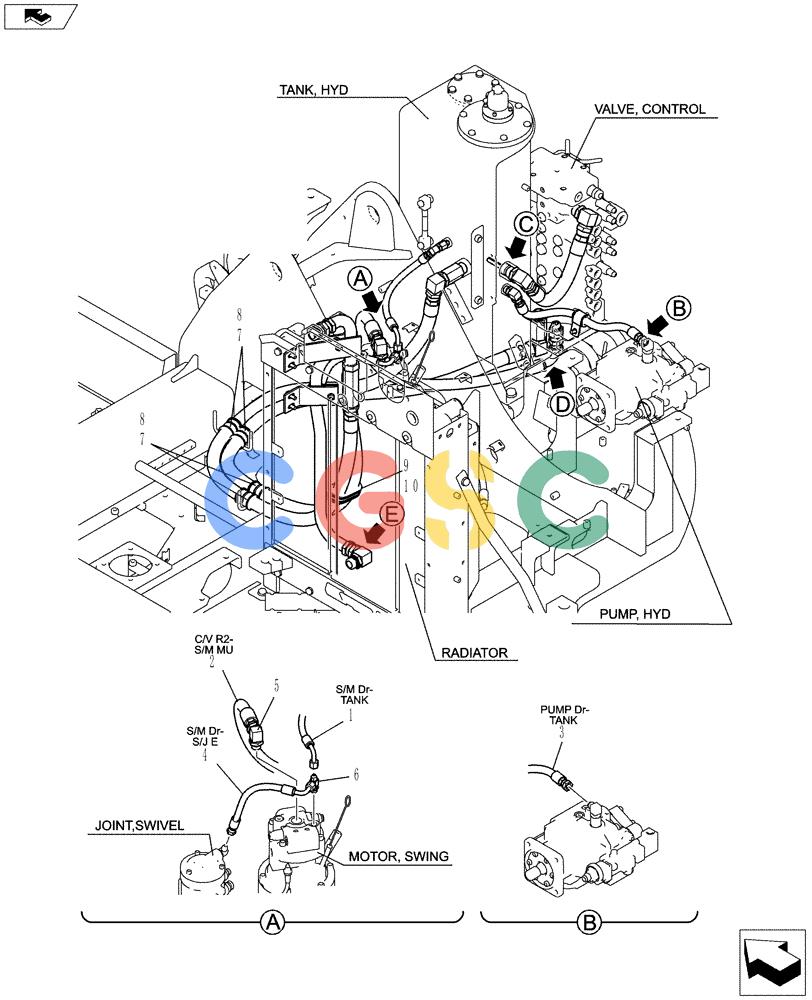

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR ASN YT06-18001 (01-025[01]) - HYDRAULIC LINES, RETURN New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
754 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT32H00011F1 | [1] | Return | |
| 1. | ZX32M06040 | [1] | HOSE ASSY. | KOB |
| 2. | ZX32M12100 | [1] | HOSE | KOB |
| 3. | ZX22M08062 | [1] | RECEIVER-DRIER | KOBHose |
| 4. | ZX32M06038 | [1] | HOSE ASSY. | KOB Superseded by part number: ZX32M06040 |
| 5. | ZH32X12000 | [1] | 90 ELBOW,Male, 30° Fl, PF 3/4" x PF 3/4", O-Ring | KOB90 |
| 6. | 2444Z2359 | [1] | TEE | KOB |
| 7. | YX32H01011P1 | [2] | BUSHING,33mm ID x 49mm OD x 50mm L | KOB |
| 8. | PY01P01043D3 | [2] | CABLE TIE,188mm L | KOB |
| 9. | PY01P01043D8 | [2] | CABLE TIE,102mm L | KOB |
| 10. | YF30H01023P1 | [1] | GROMMET | KOB |
