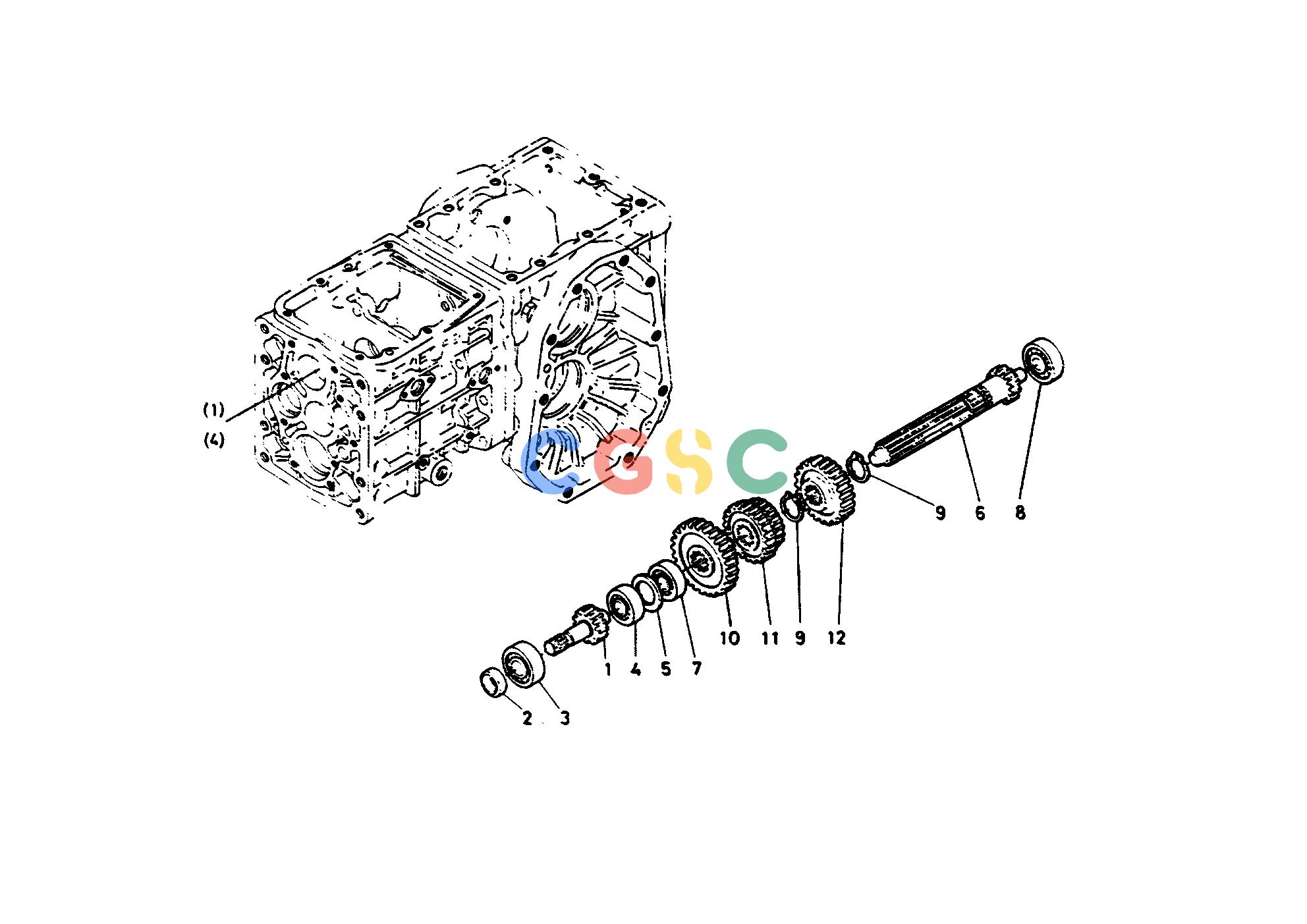

久保田零件查询T02900 1ST SHAFT 4TH SHAFT GROUP REAR AXLE/REAR WHEELEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
572 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6649414210
|
[1] |
SHAFT 1
|
0.4334(lbs); 0.197
|
| 002. |
0950017308
|
[1] |
SEAL OIL
|
0.0198(lbs); 0.009
|
| 003. |
0810106303
|
[1] |
BEARING BALL(6303)
|
0.2464(lbs); 0.112
|
| 004. |
0810106203
|
[1] |
BEARING BALL(6203)
|
0.1386(lbs); 0.063
|
| 005. |
6662114220
|
[1] |
SPACER
|
0.0110(lbs); 0.005
|
| 006. |
6662114510
|
[1] |
SHAFT
|
1.2760(lbs); 0.580
|
| 007. |
0810106203
|
[1] |
BEARING BALL(6203)
|
0.1386(lbs); 0.063
|
| 008. |
0810106302
|
[1] |
BEARING BALL(6302)
|
0.1848(lbs); 0.084
|
| 009. |
0461200220
|
[2] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 010. |
6662114520
|
[1] |
GEAR 29
|
0.7084(lbs); 0.322
|
| 011. |
6662114532
|
[1] |
GEAR 20-16
|
0.7040(lbs); 0.320
|
| 012. |
6662114540
|
[1] |
GEAR 26
|
0.5588(lbs); 0.254
|
